Cable Management Wire Chopping System

GSX Genox 2260 Single Shaft Cable Shredder

• Feed opening 24" by 31"
• Rotor shaft diameter 10"
• Rotor shaft size 20"
• Rotor speed 83 RPM
• Rotating blades 1" x 28 blades
• 20" hydraulic ram
• Screen size 3/4" - 1.6"
• Electric motor 25HP 22/440V 3 phase 60Hz
• Process approximately 450lbs - 900lbs per hour

Cable Management 1624 PS

• Large part granulator made in USA
• Screens 1/8" 5/16" and 3/32"
• Spare knives
• Spare set of blades & vacuum take-off bin
• Soft start motor starter & electrical panel box

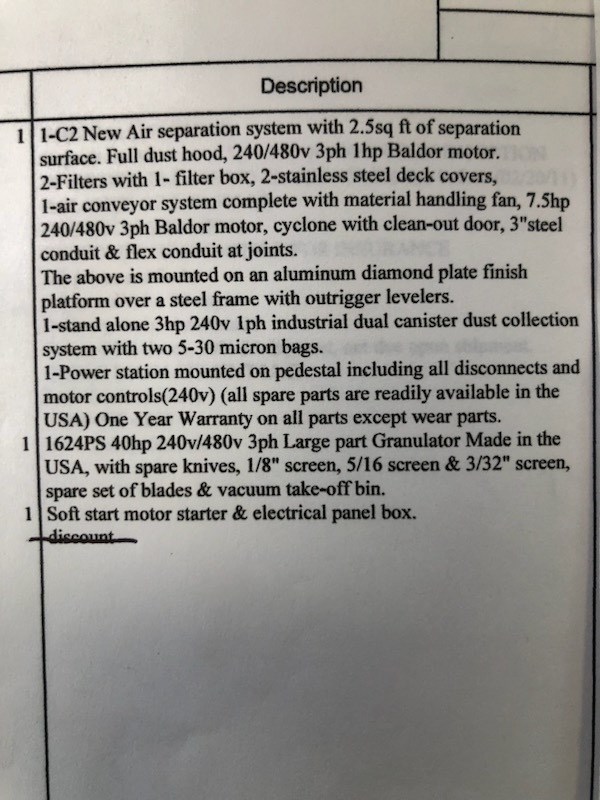

C2 new air separation system (2.5 sq ft of separation surface)

• Full dust hood
• Baldor motor 1HP 240/480V 3 phase
• 2 filters with 1 filter box
• 2 stainless steel deck covers
• 1 air conveyor system complete with material handling fan
• Baldor motor 7.5HP 240/480V 3 phase
• Cyclone with clean-out door
• Mounted on an aluminum diamond plate finish platform over a steel frame with outrigger levelers
• 1 stand alone 3HP 240V 1 phase industrial dual canister dust collection system with two 5-30 micron bags
• 1 power station mounted on pedestal with disconnects and motor controls (240V)

Fully operational when taken out of service about 1 year ago

Sold as-is where-is
