2013 Ing Bonfiglioli Drake 2006-M16 Hammermill Shredder

S/N: 125
Hours: under 3,000 hours assumed based on information from last known hammer change before shredder was idled
Motor: 750 kw electric motor, approximately 1,000 hp - 60 Hz, 440 Volts, 1,281 amps
Condition: Reported as good by seller; machine was installed under roof with open sides. Has not run since it was idled approximately 5 years ago.

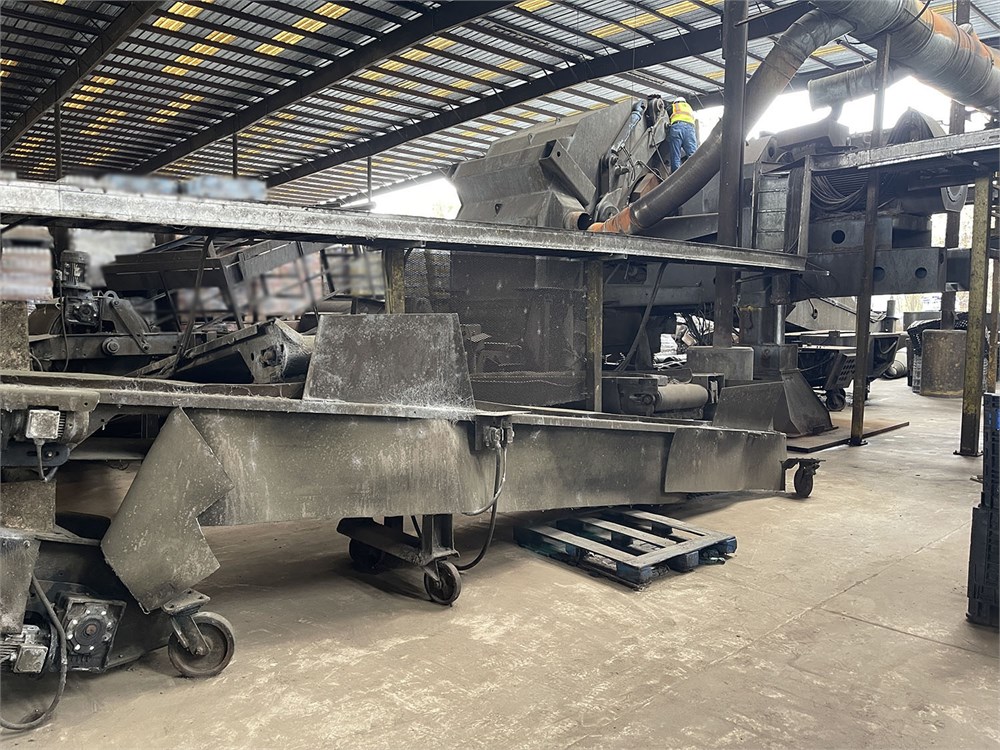

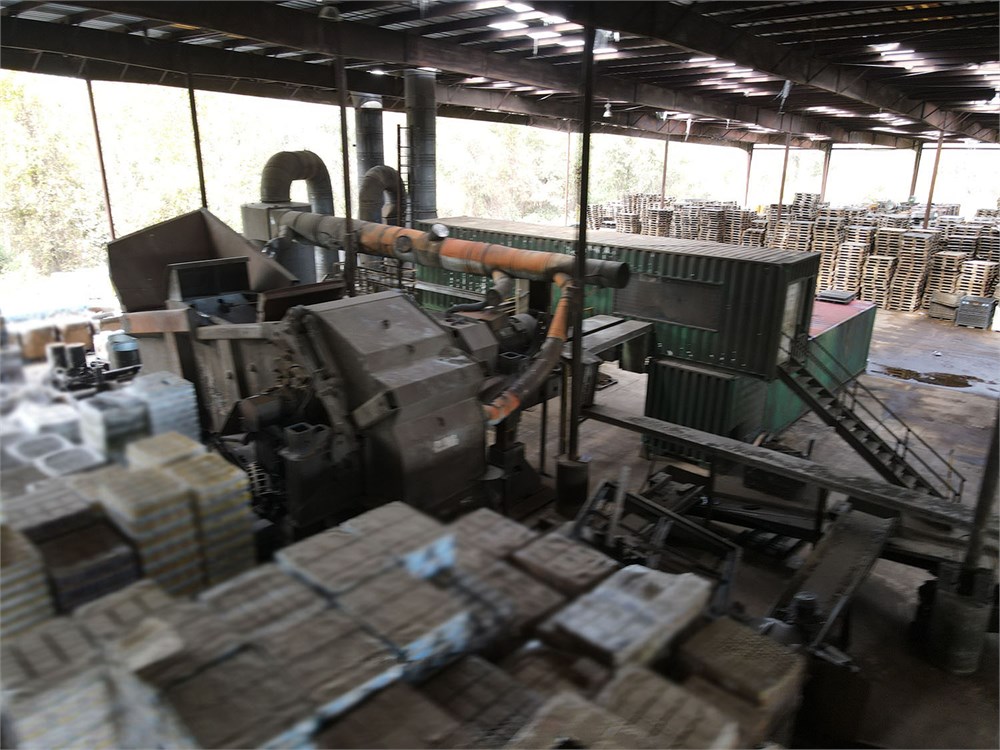

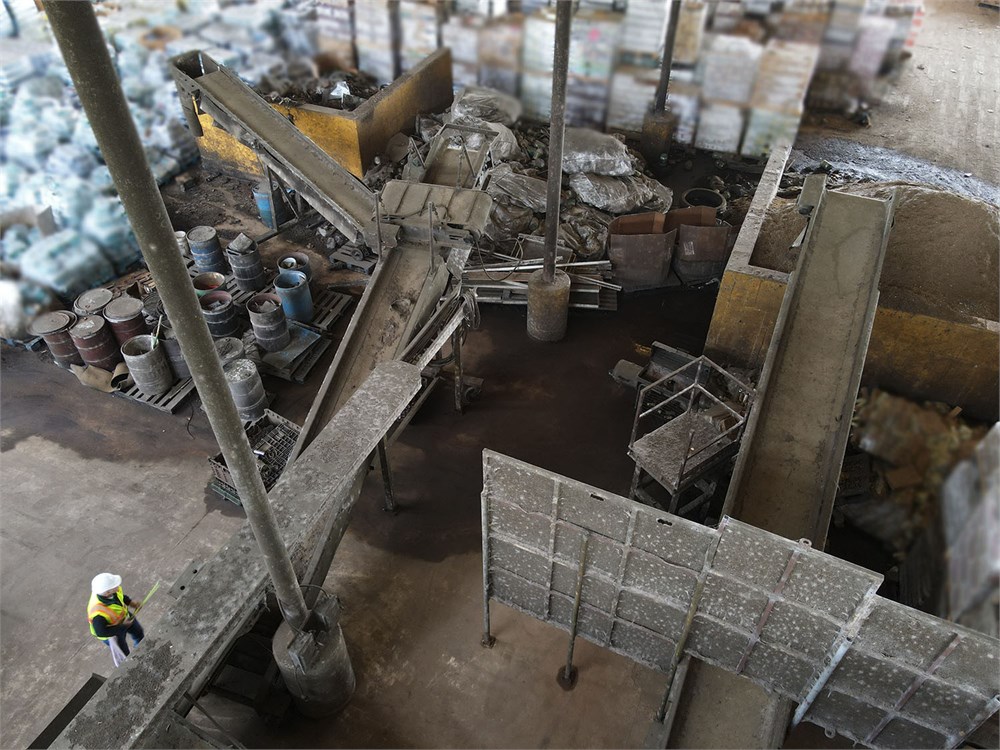

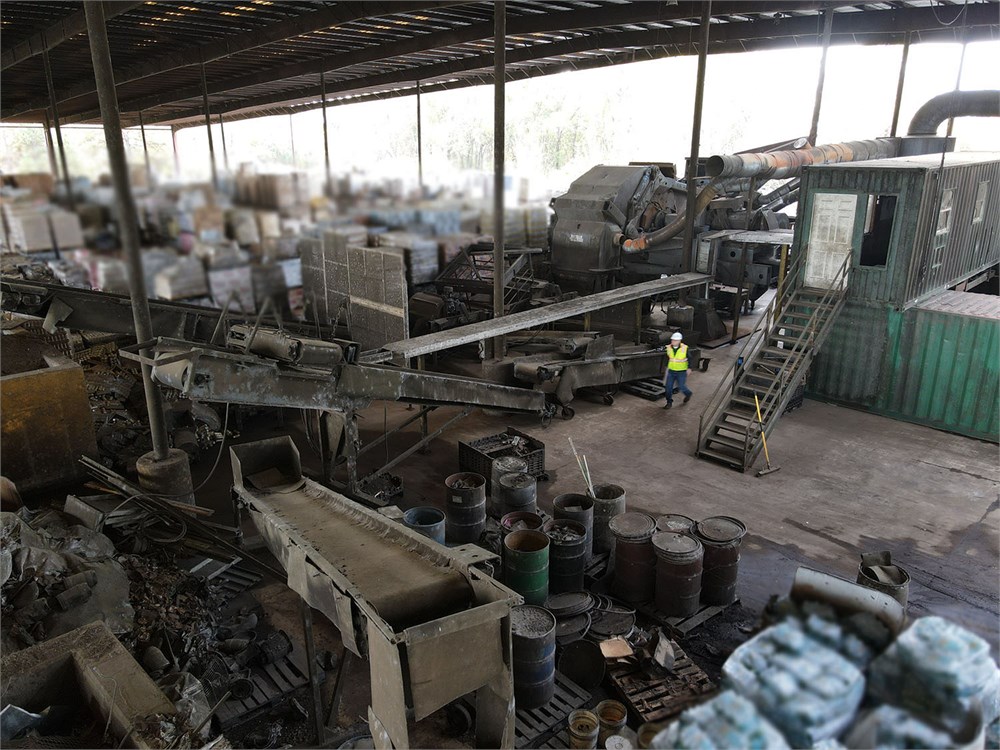

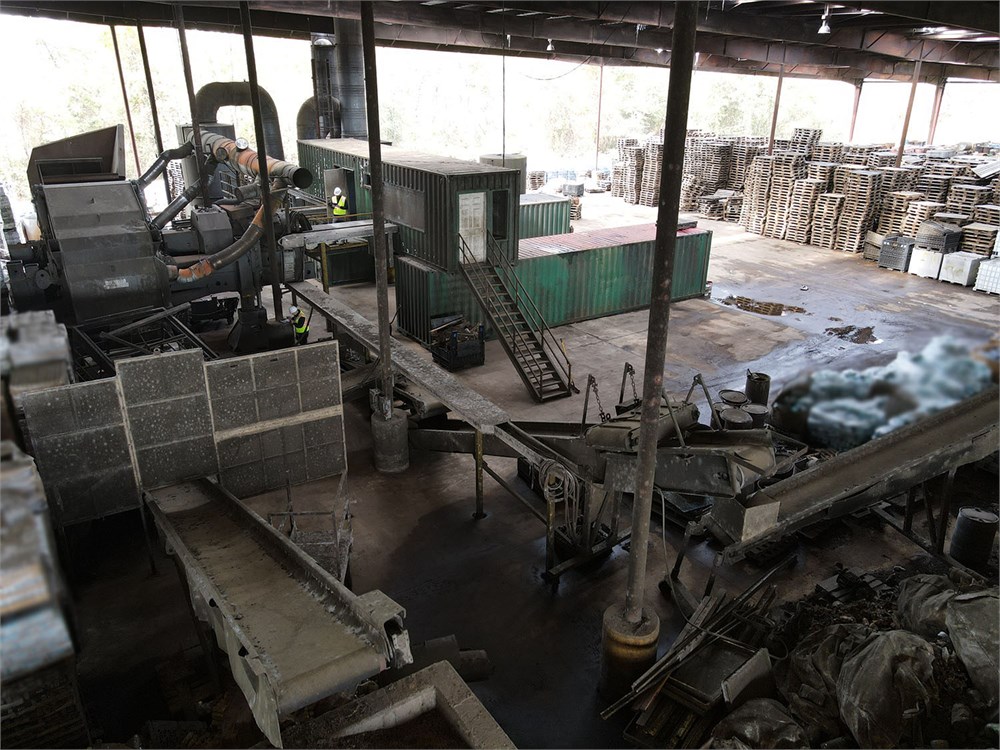

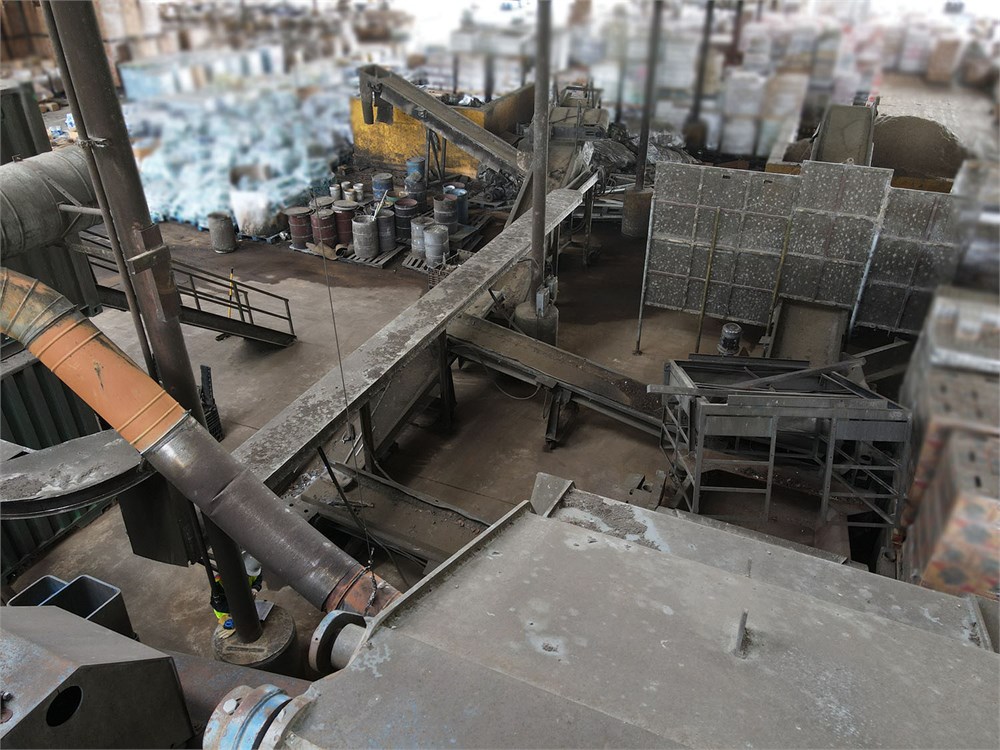

System consists of the following:

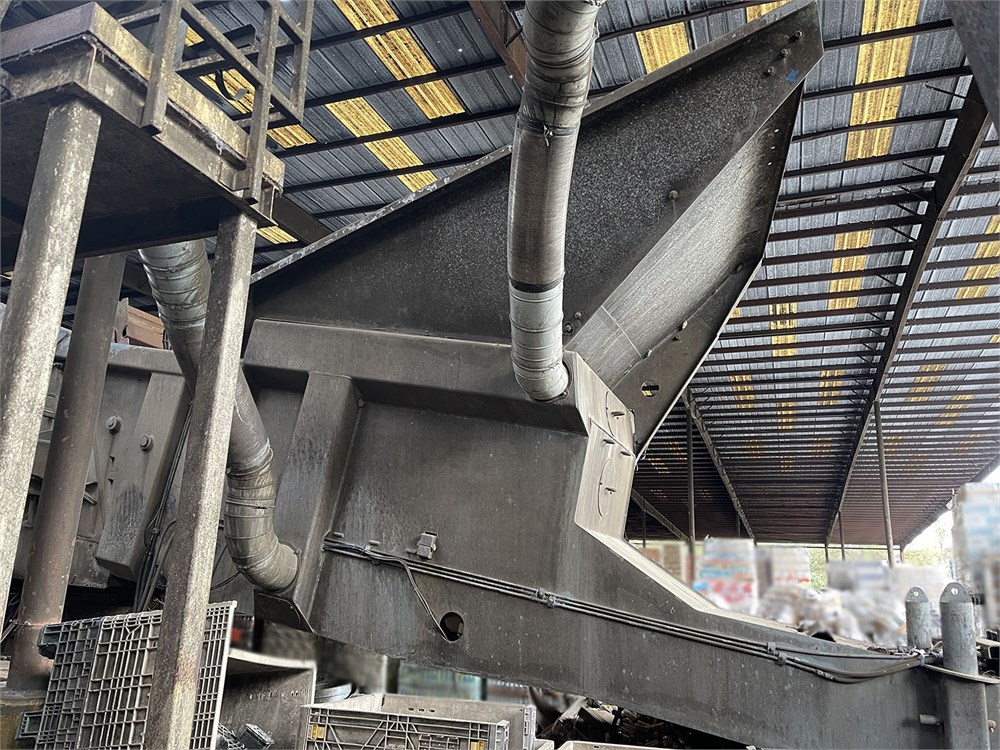

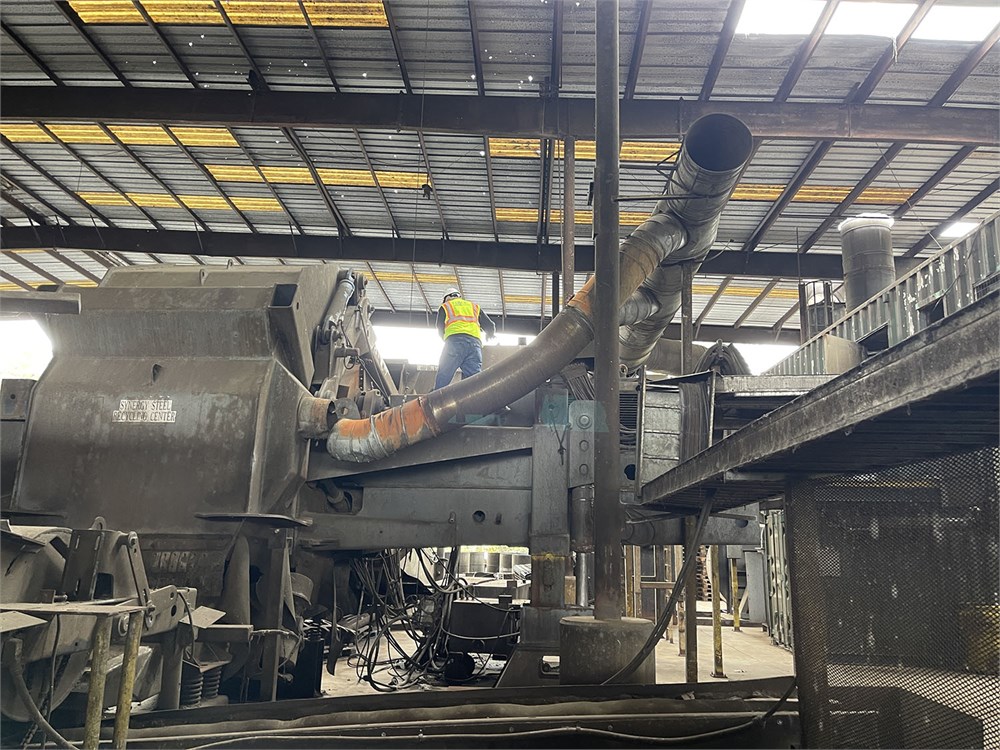

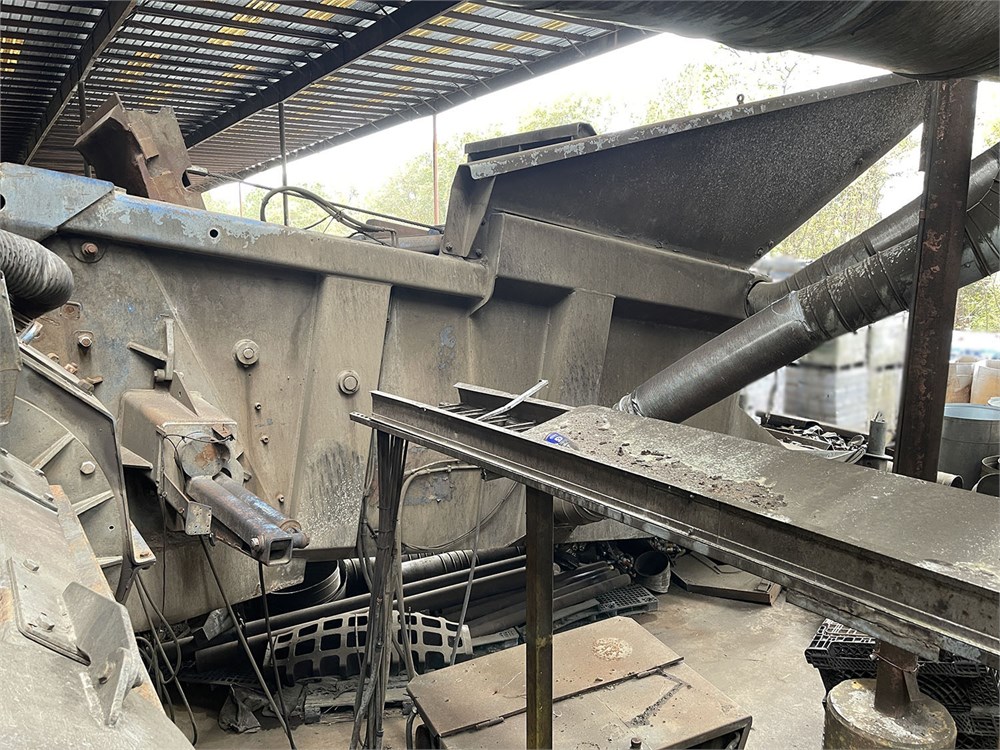

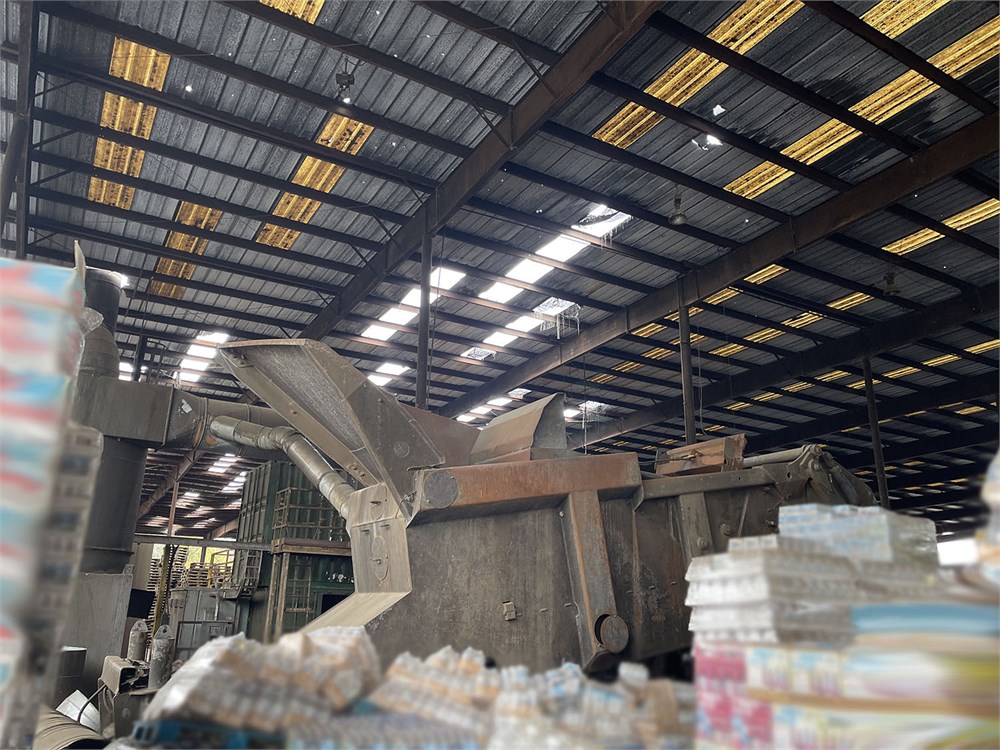

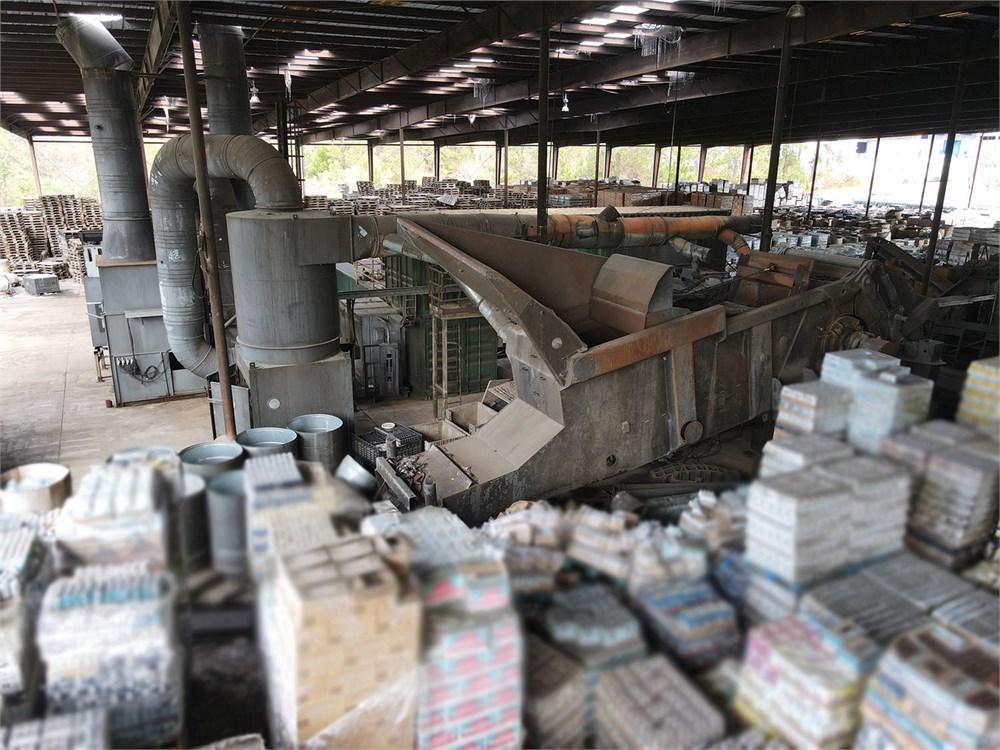

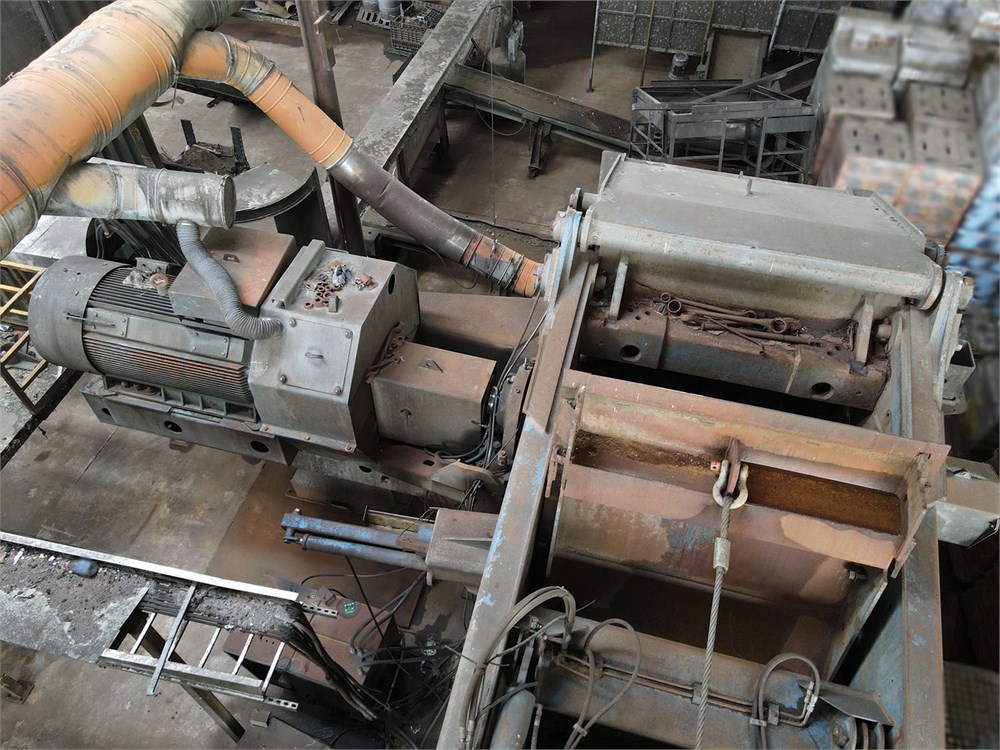

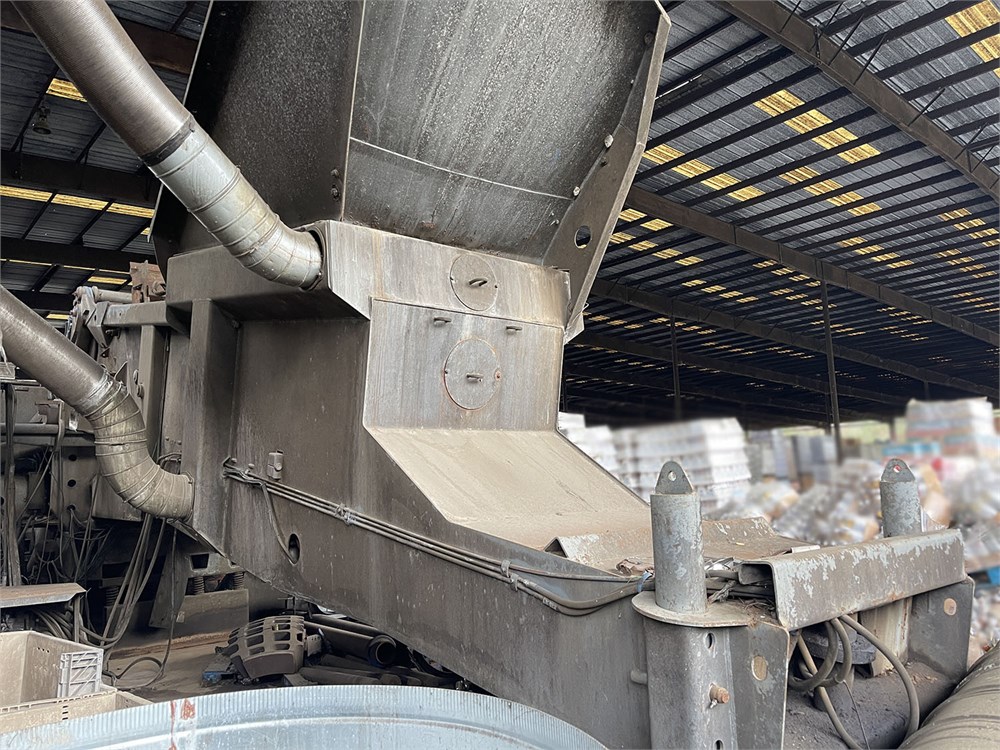

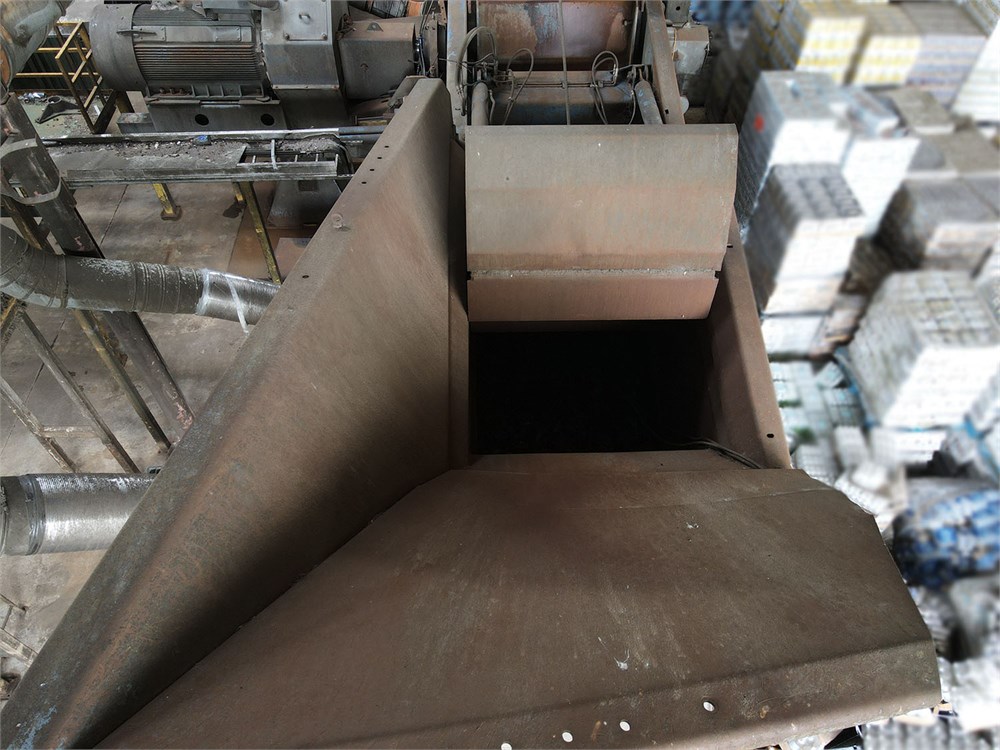

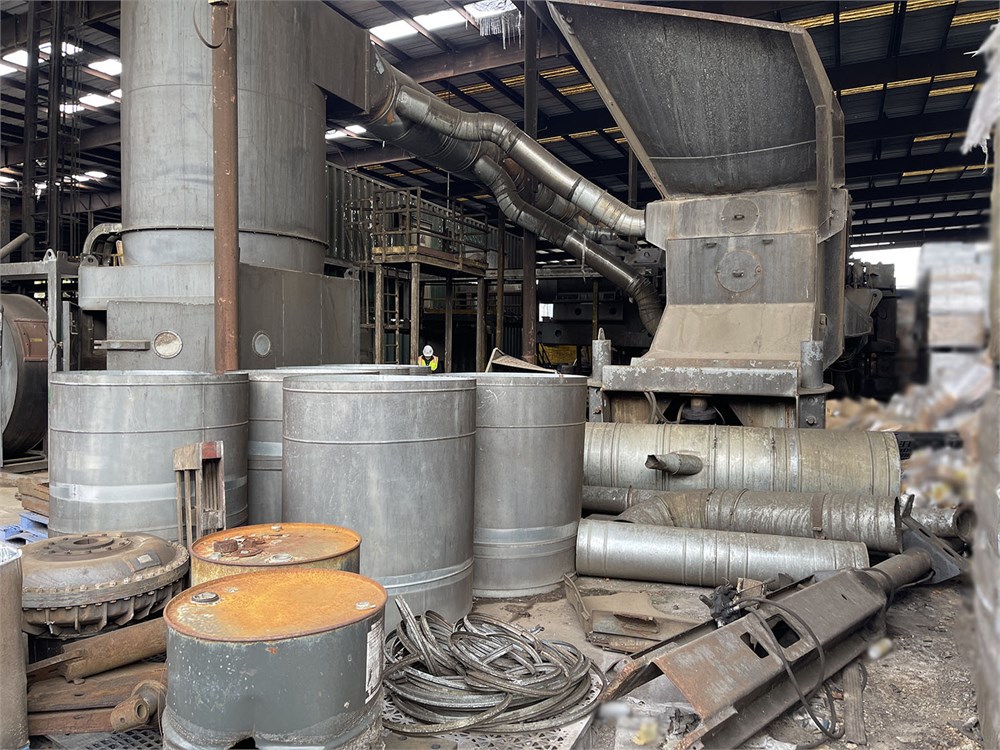

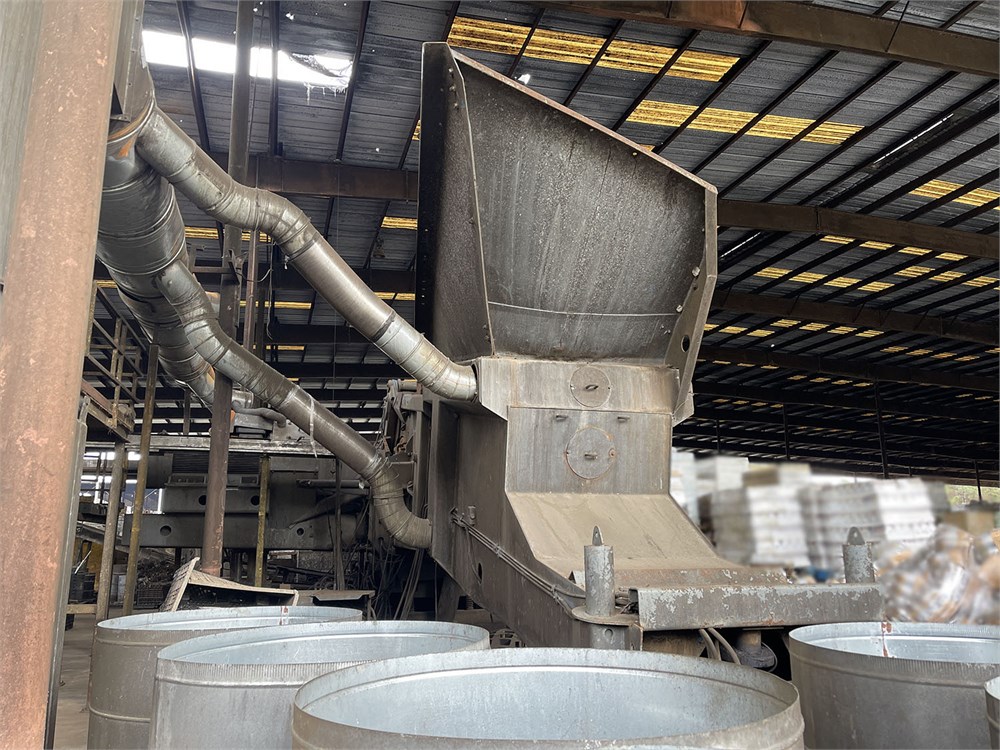

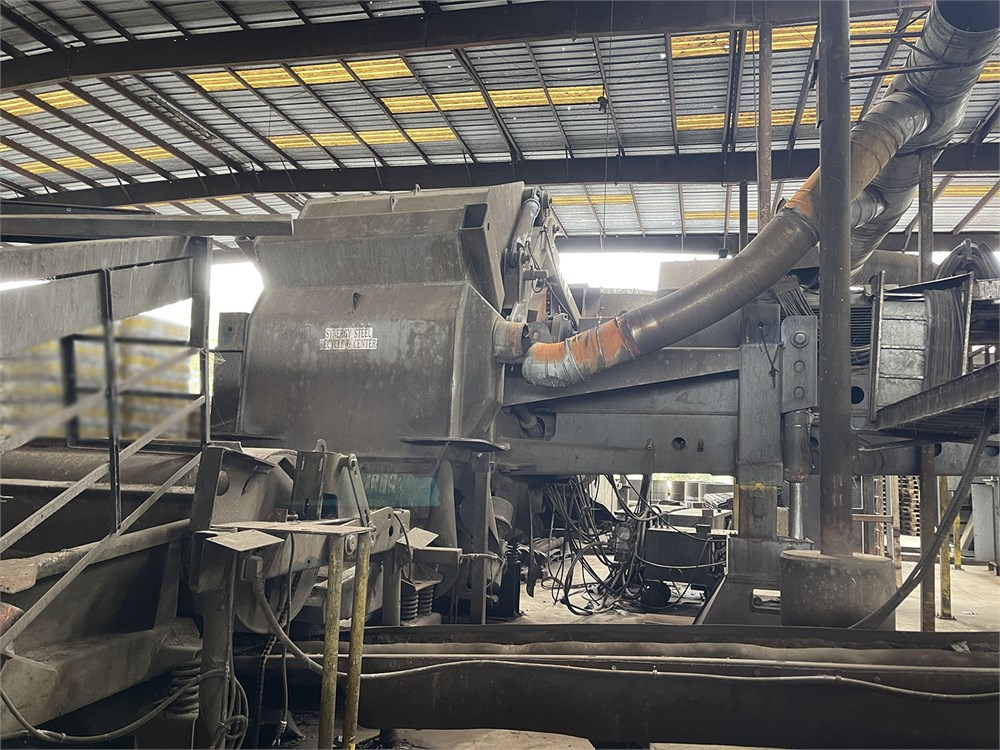

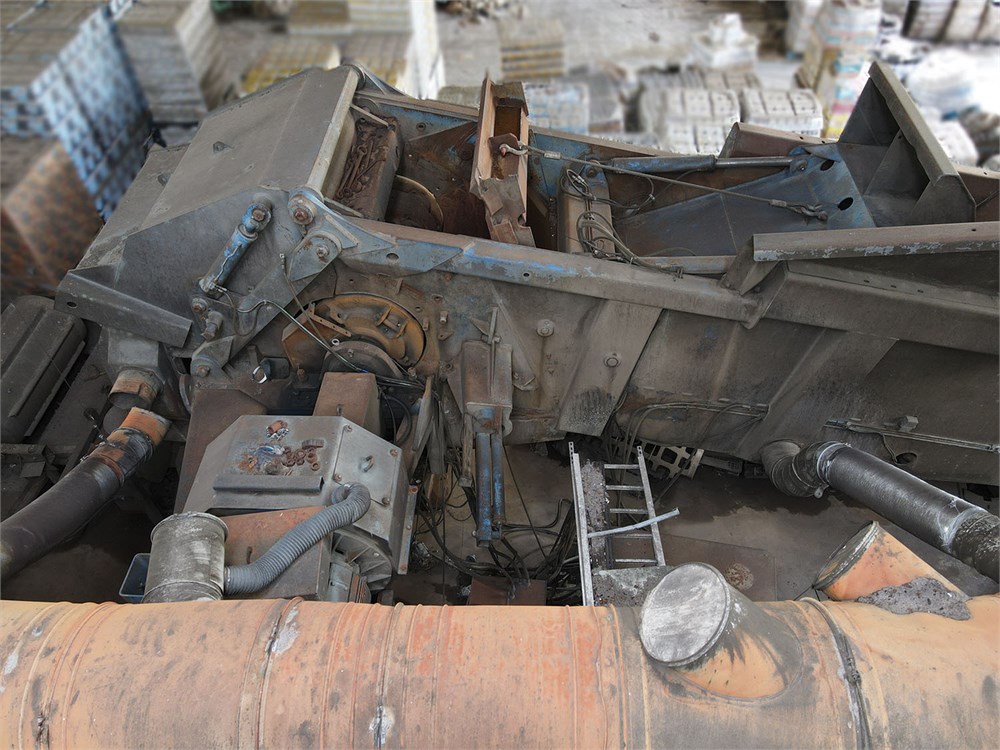

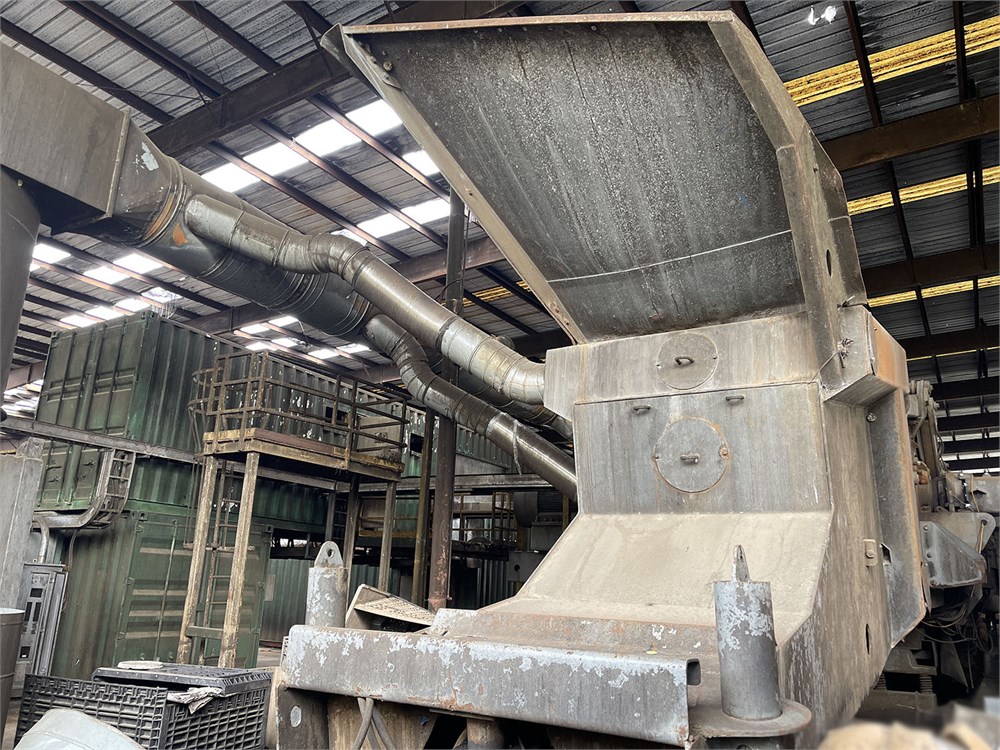

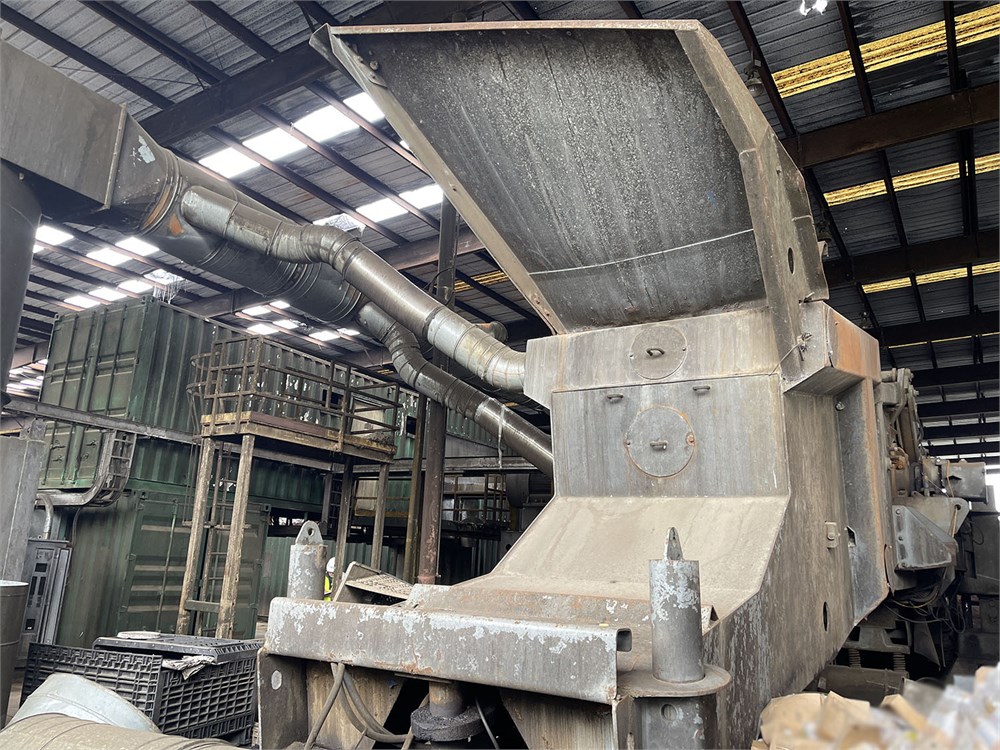

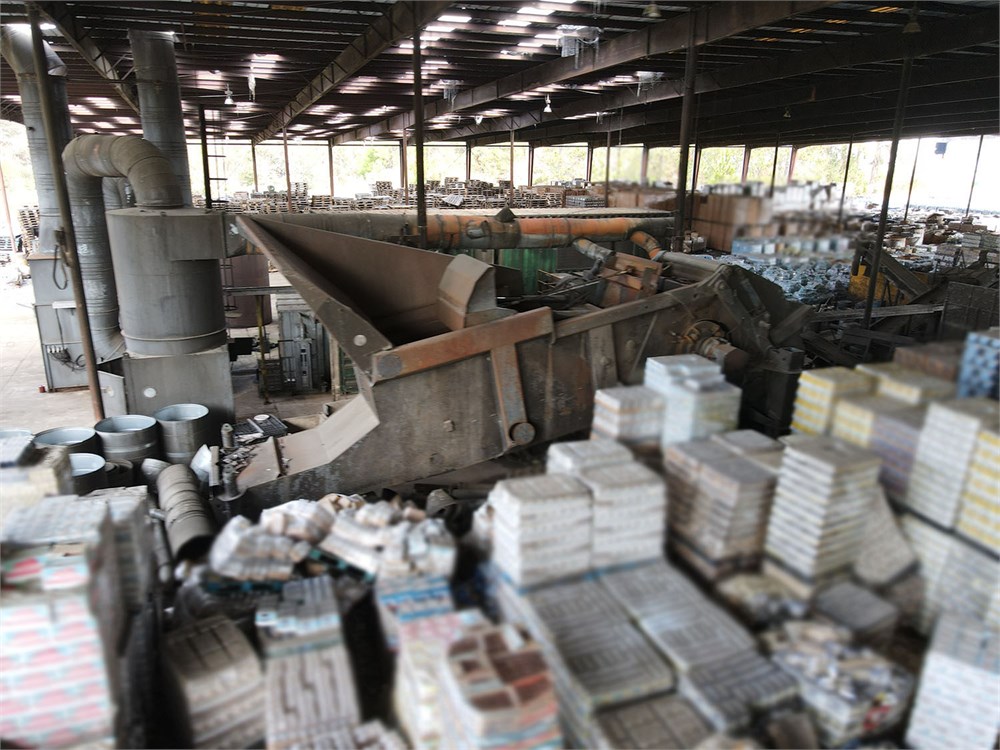

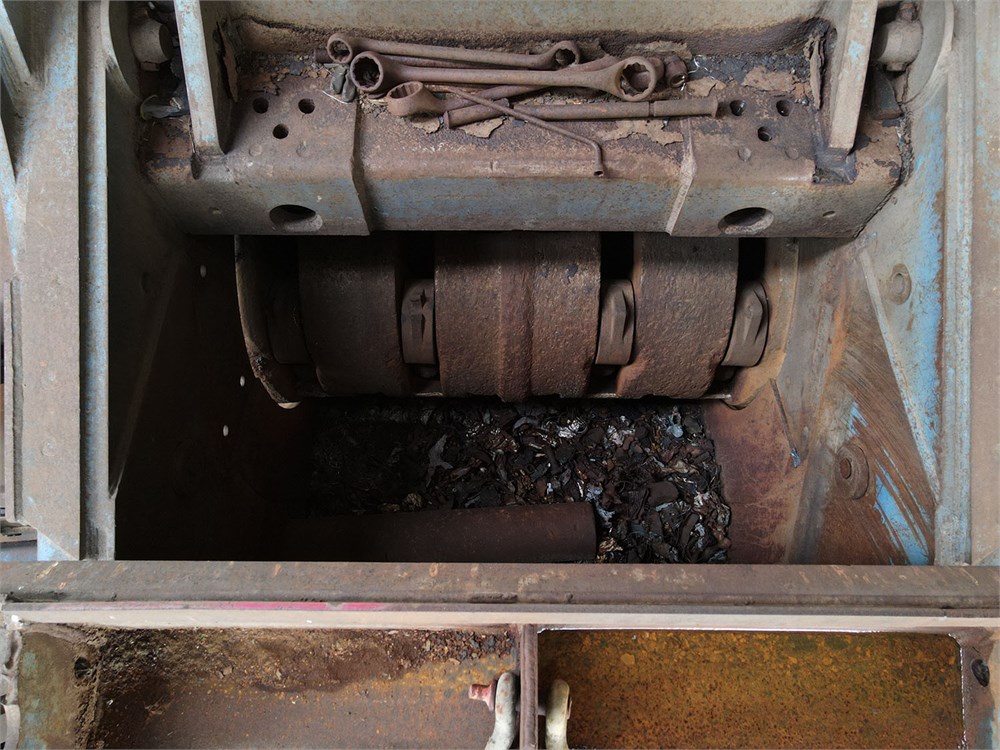

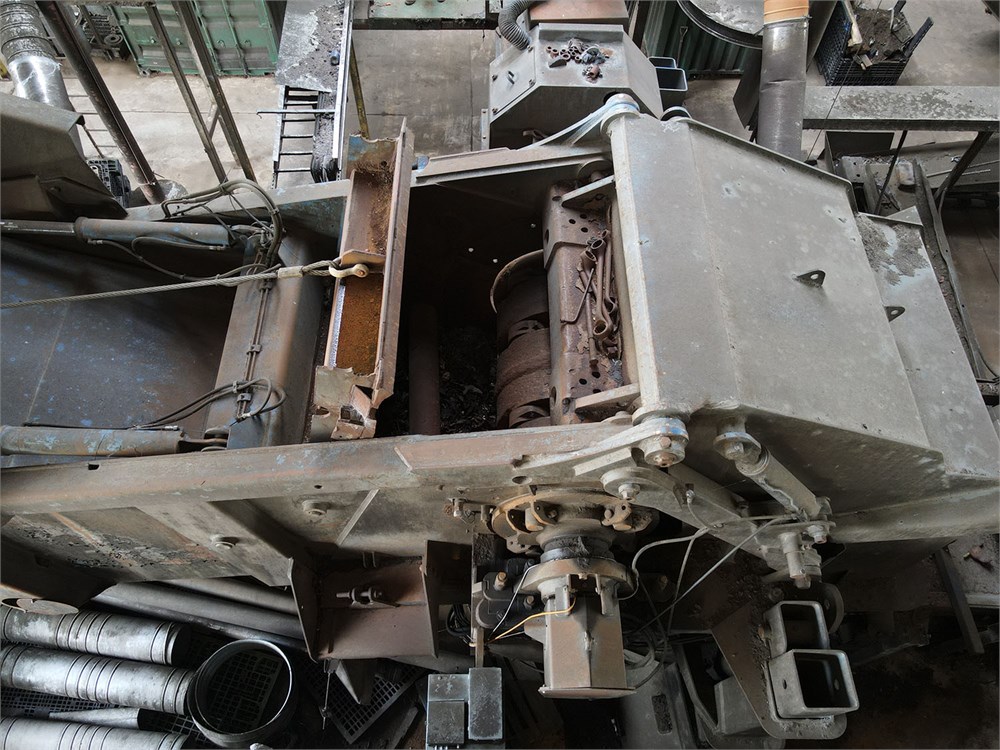

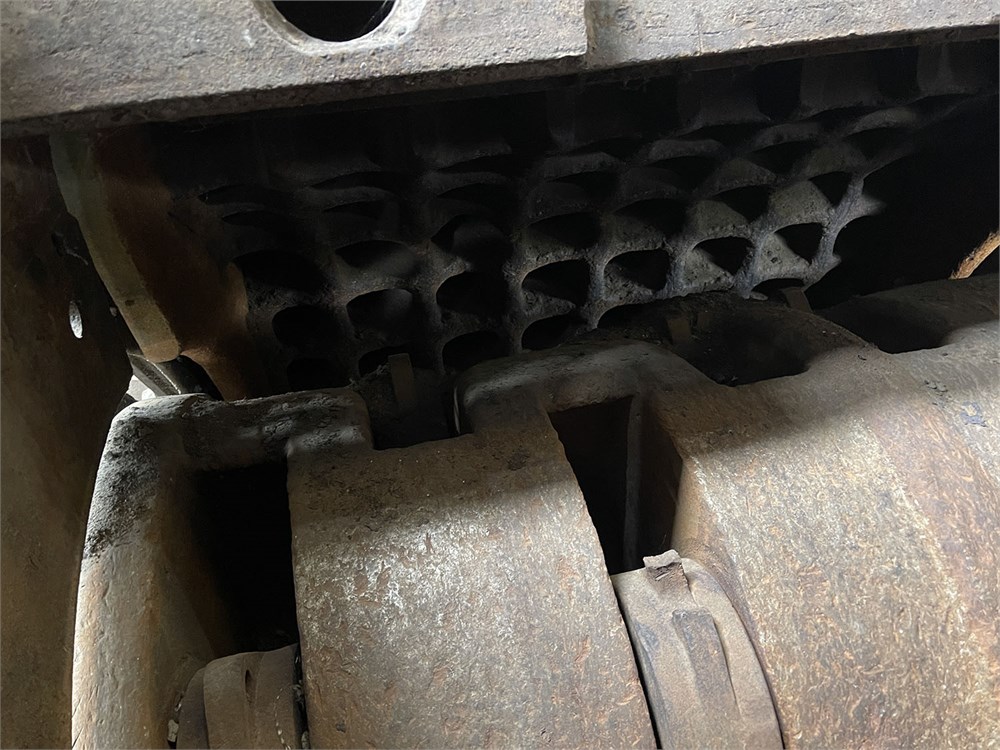

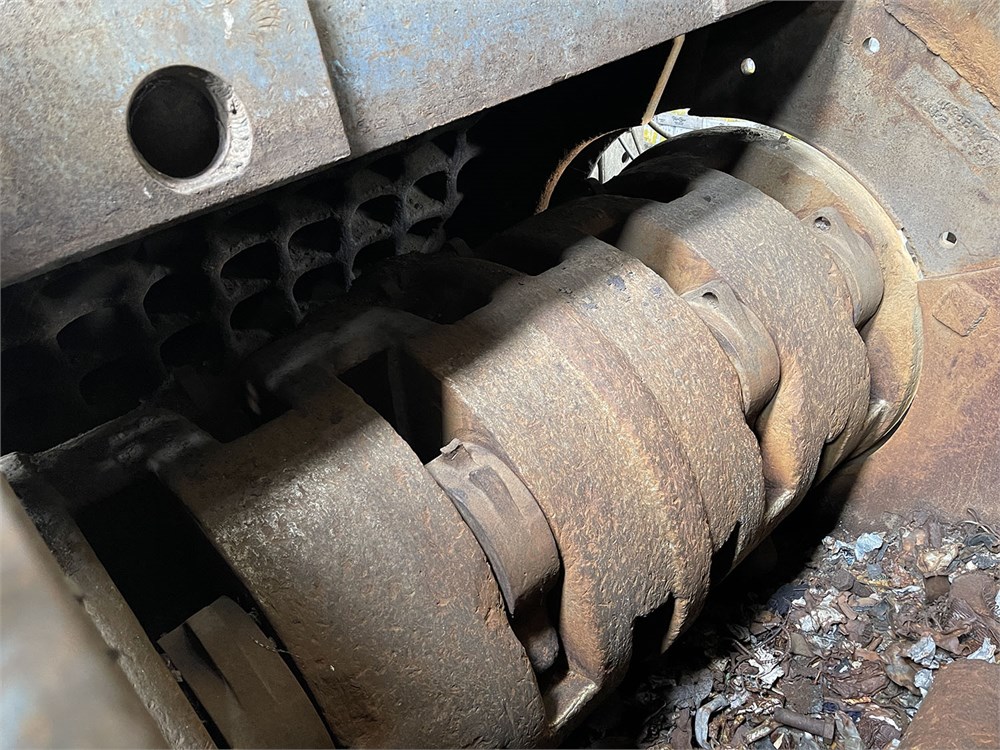

• Shredder: feed chute, shredder box

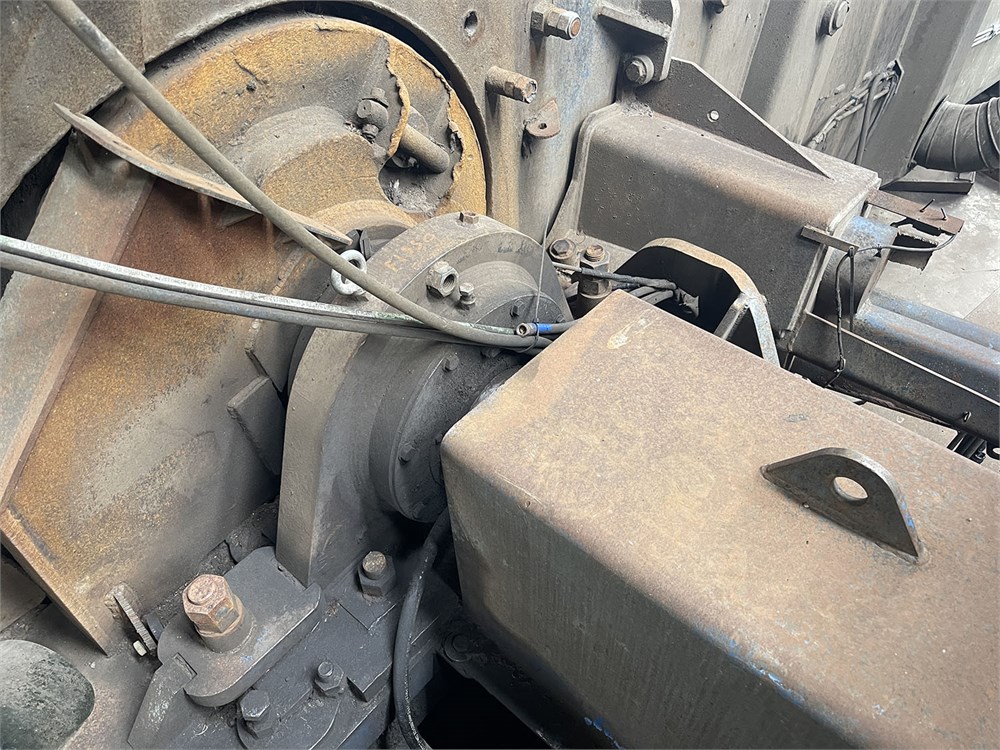

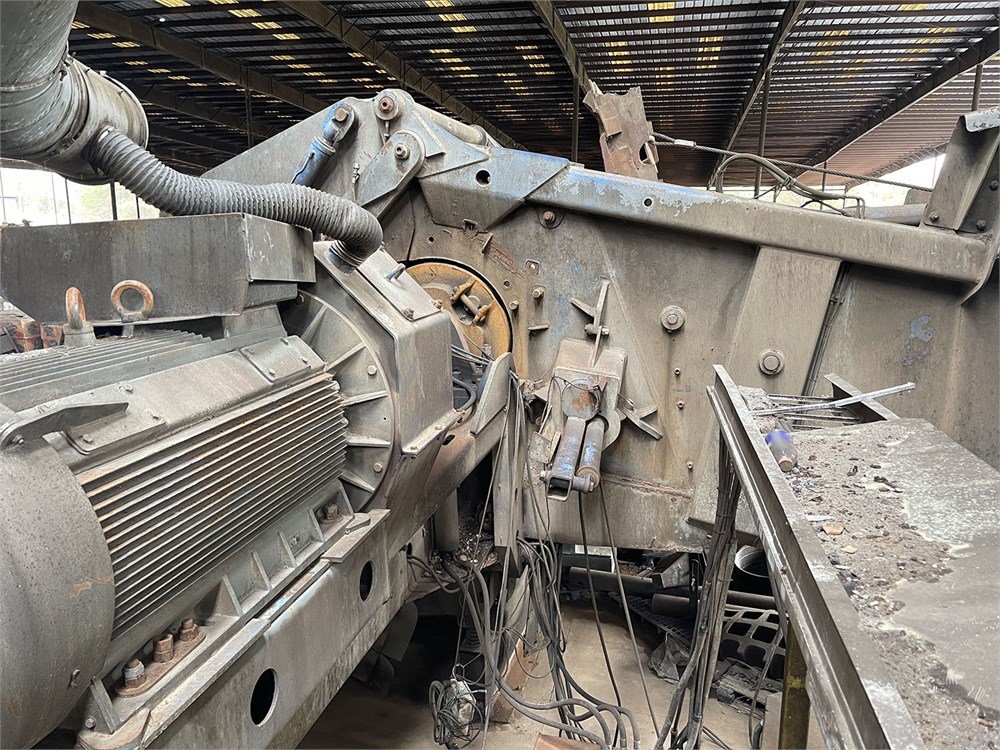

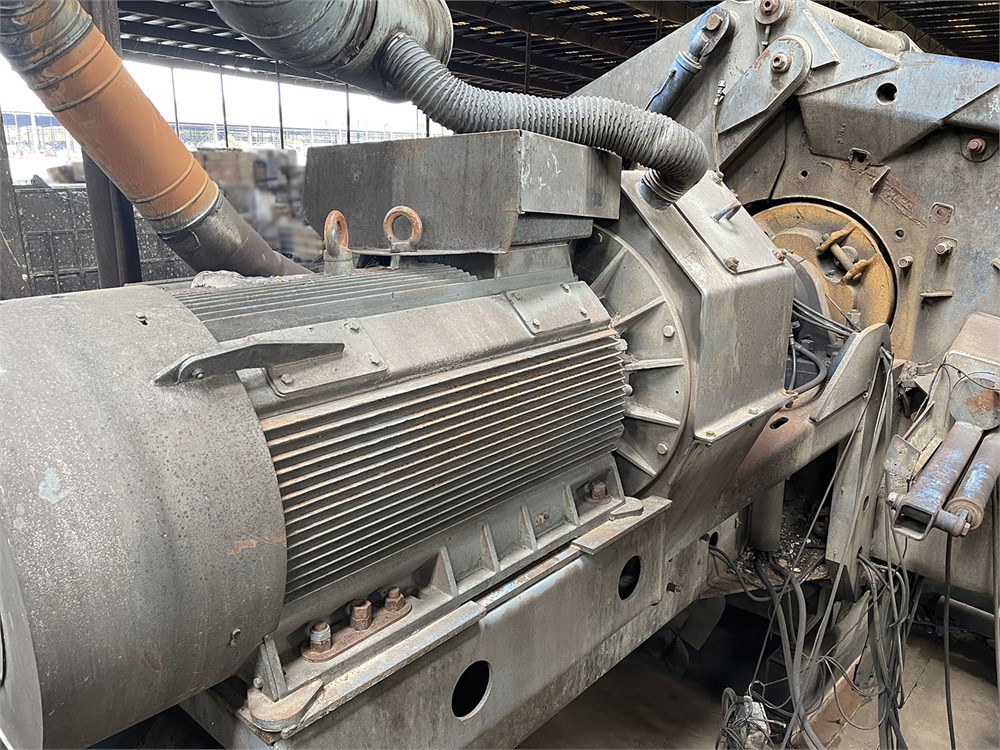

• Electric shredder motor

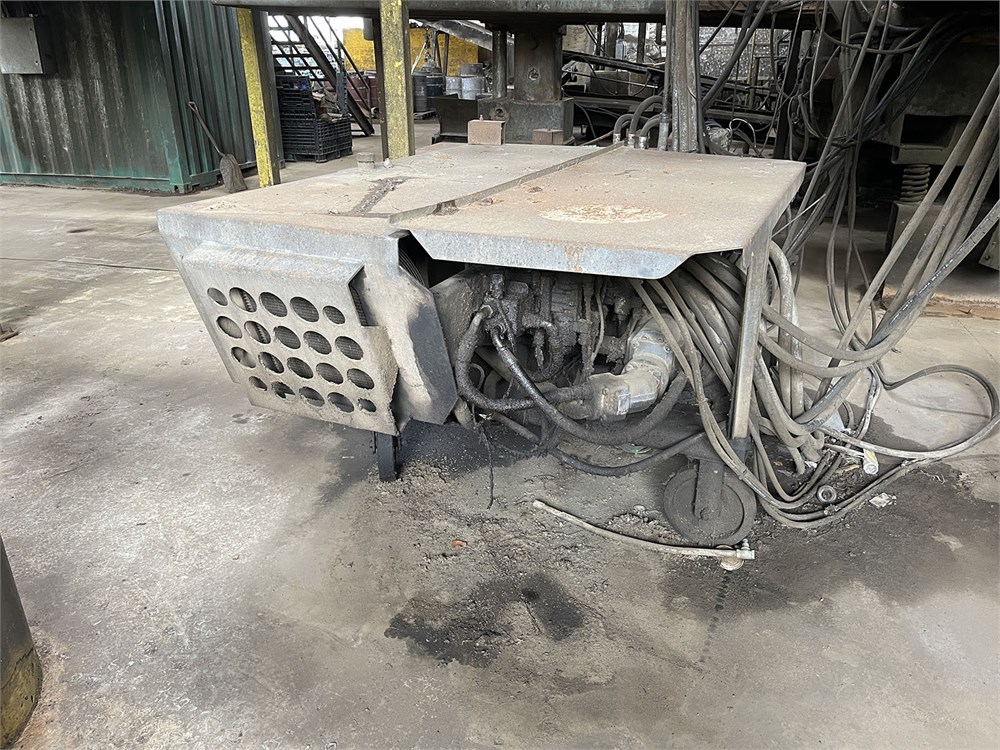

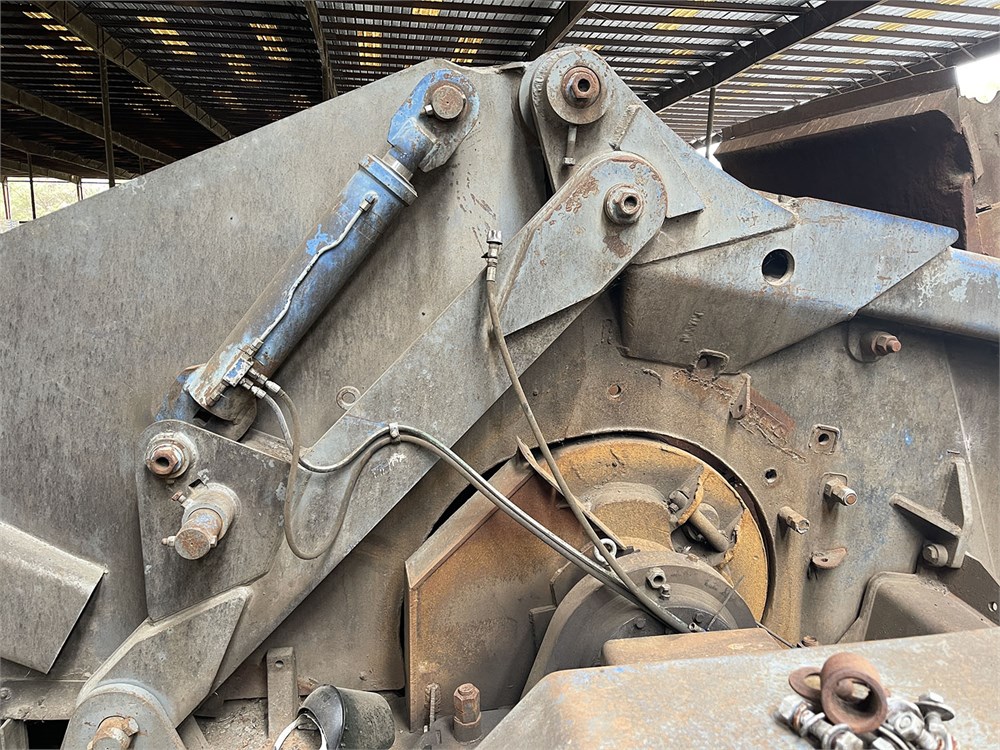

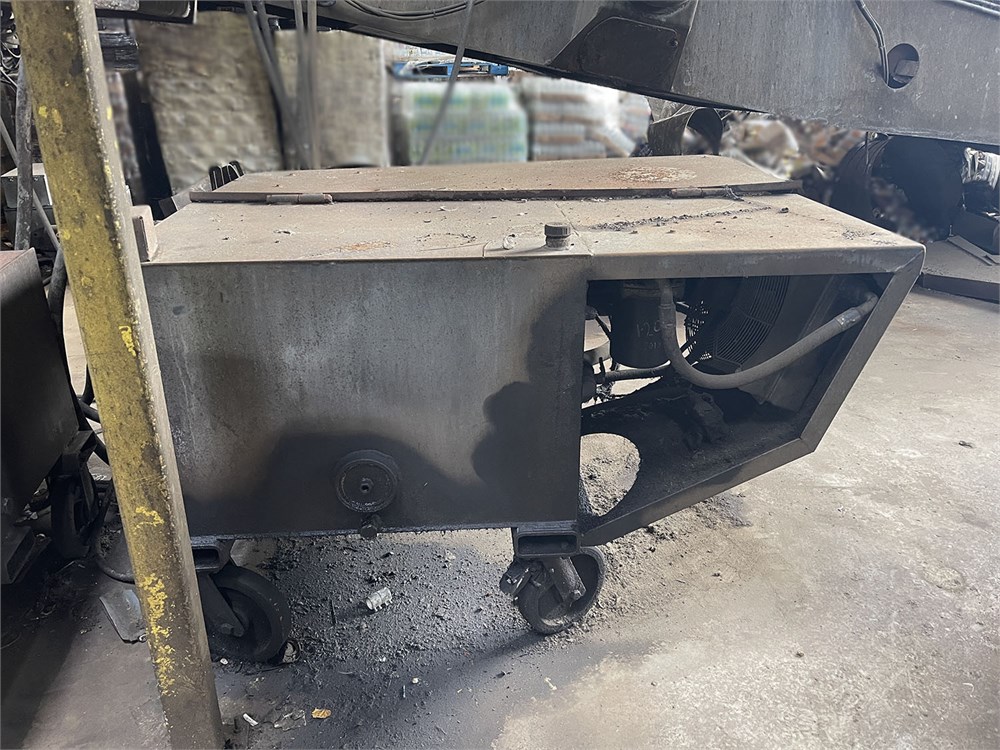

• Hydraulic power units for pusher and flipper

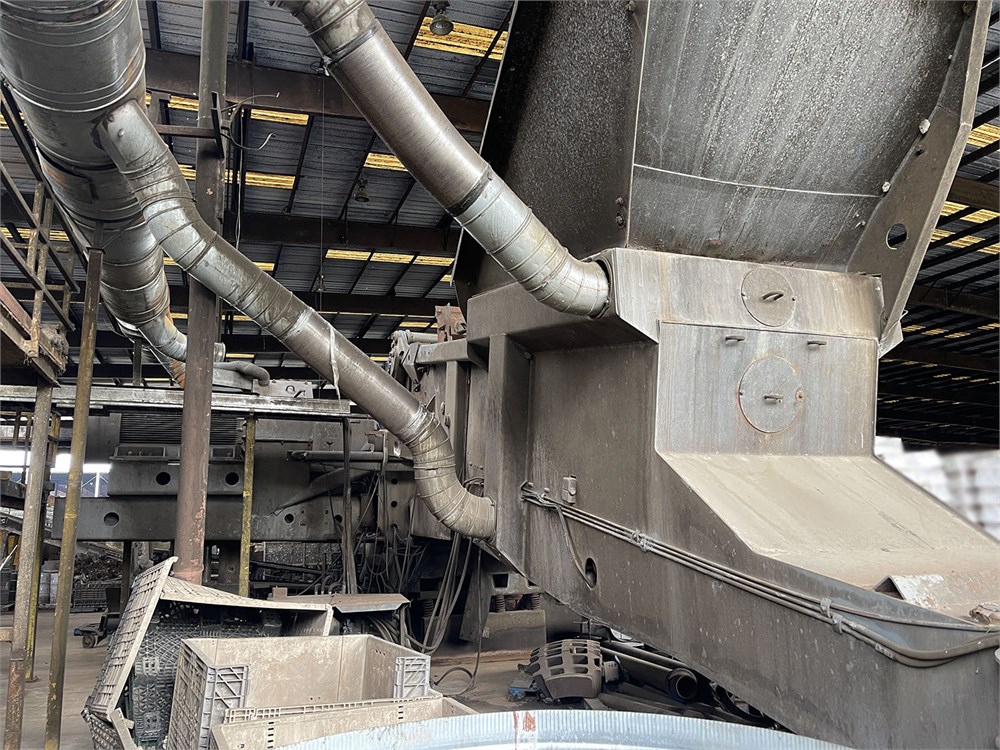

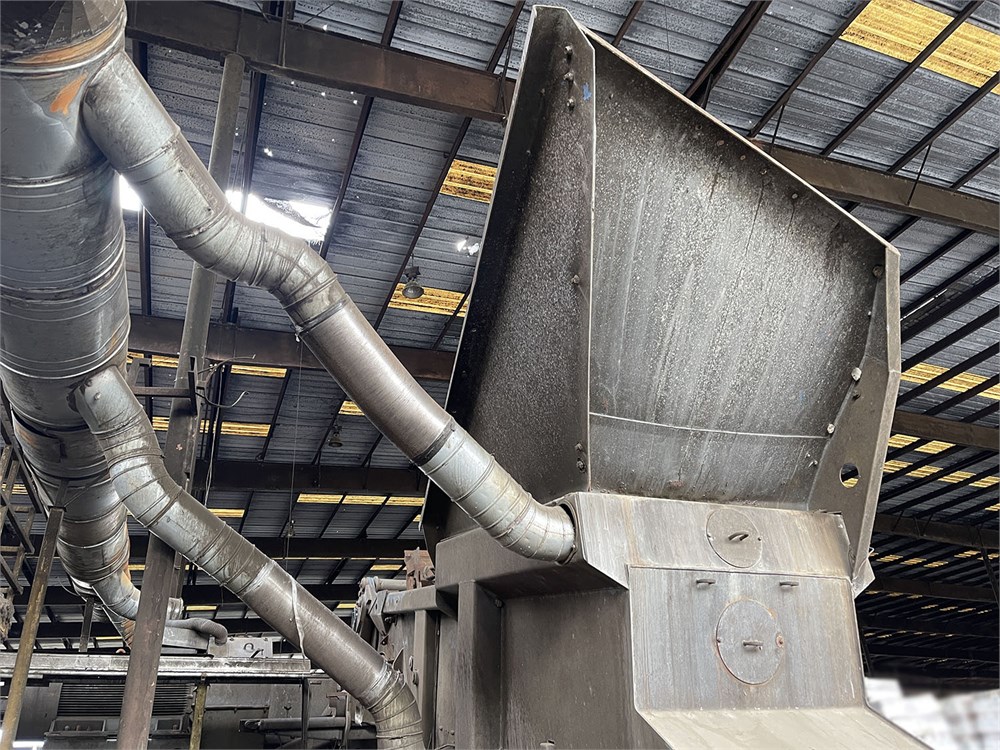

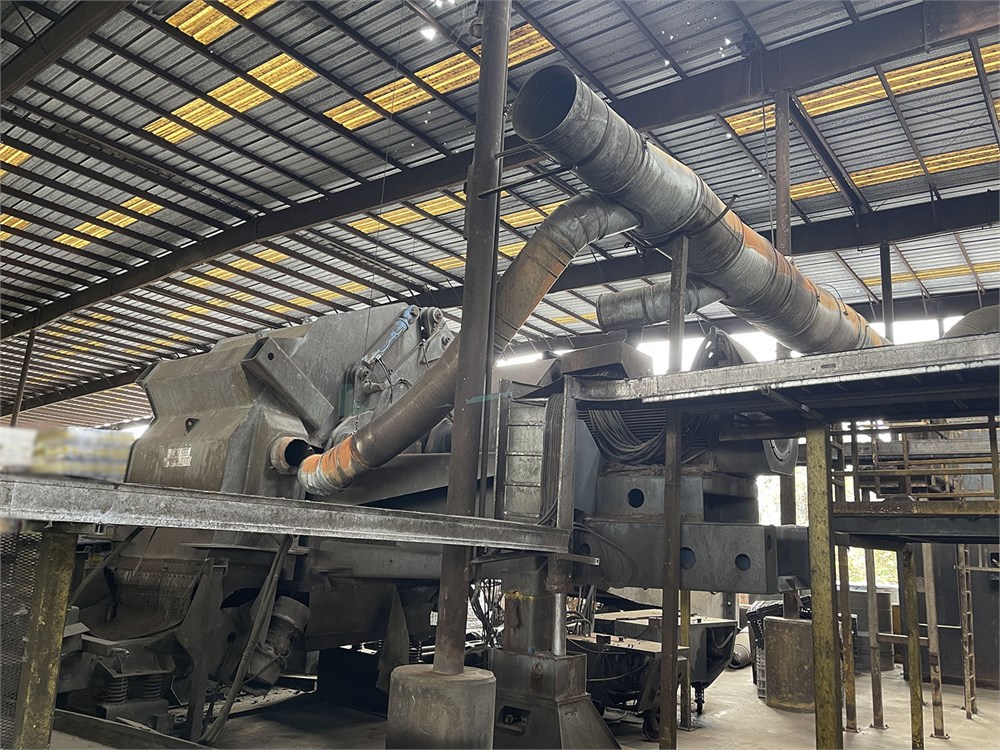

• Aspiration plant

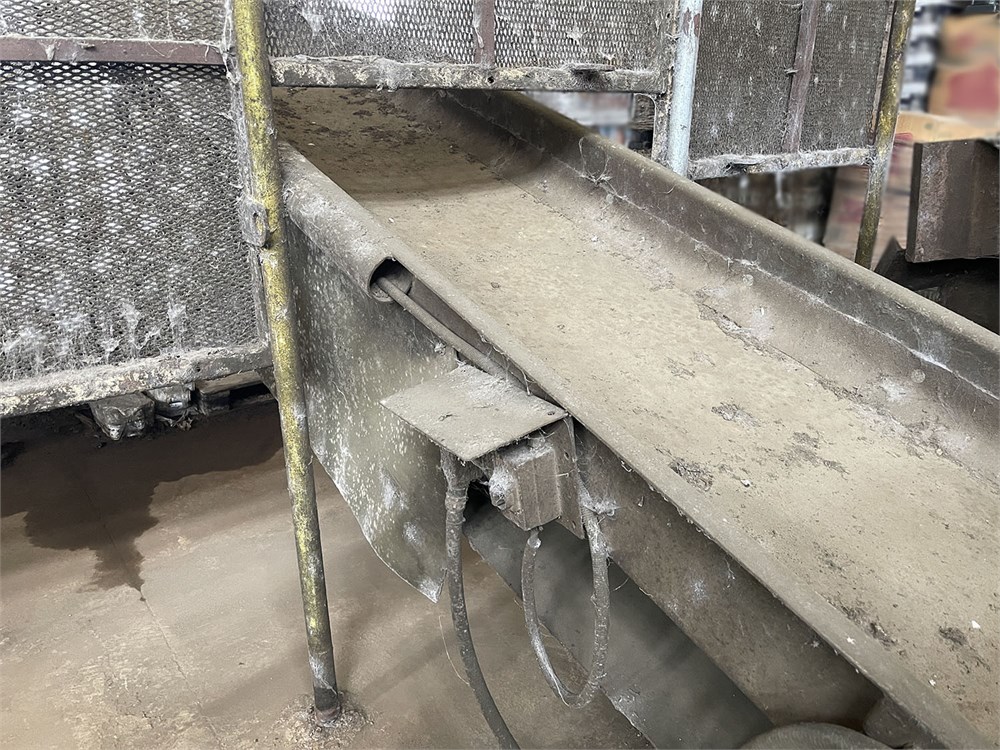

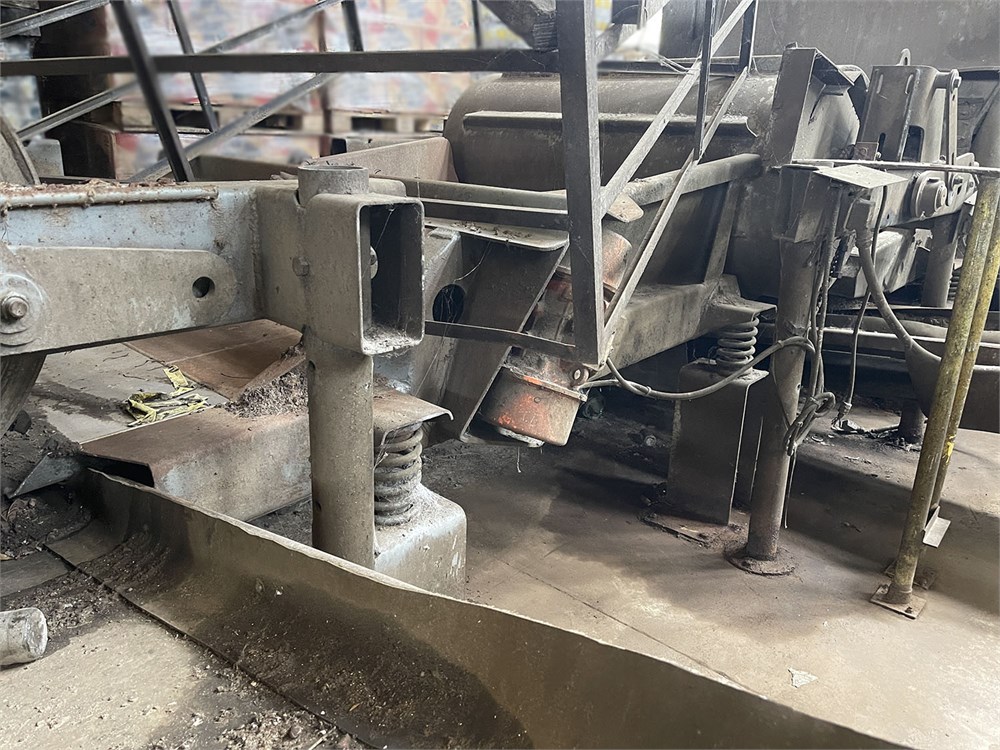

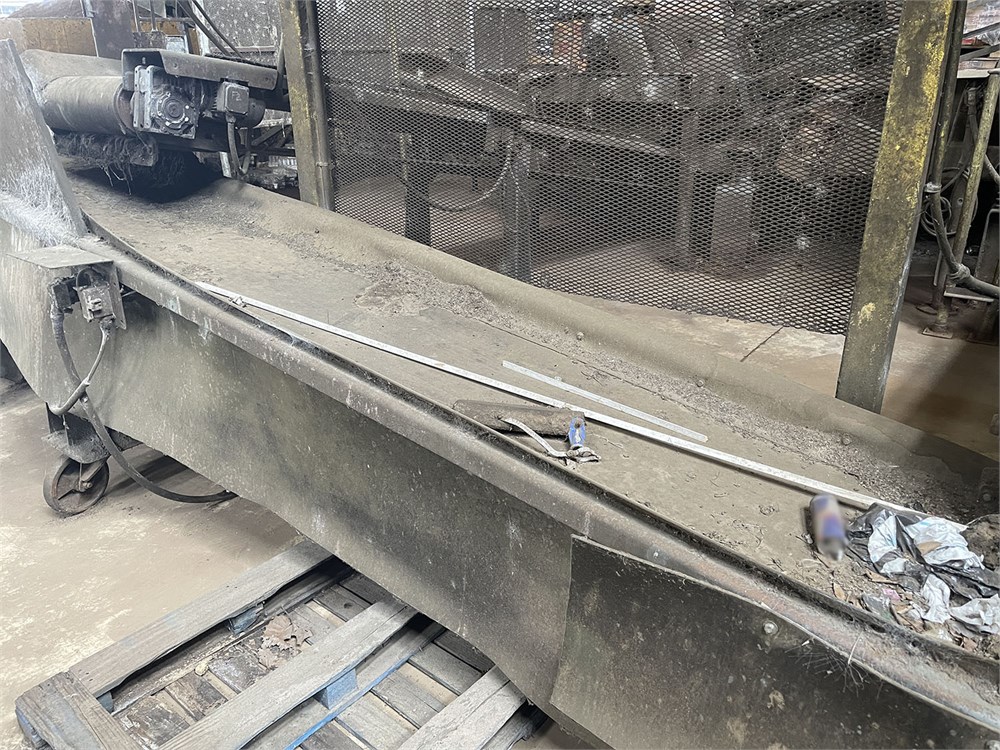

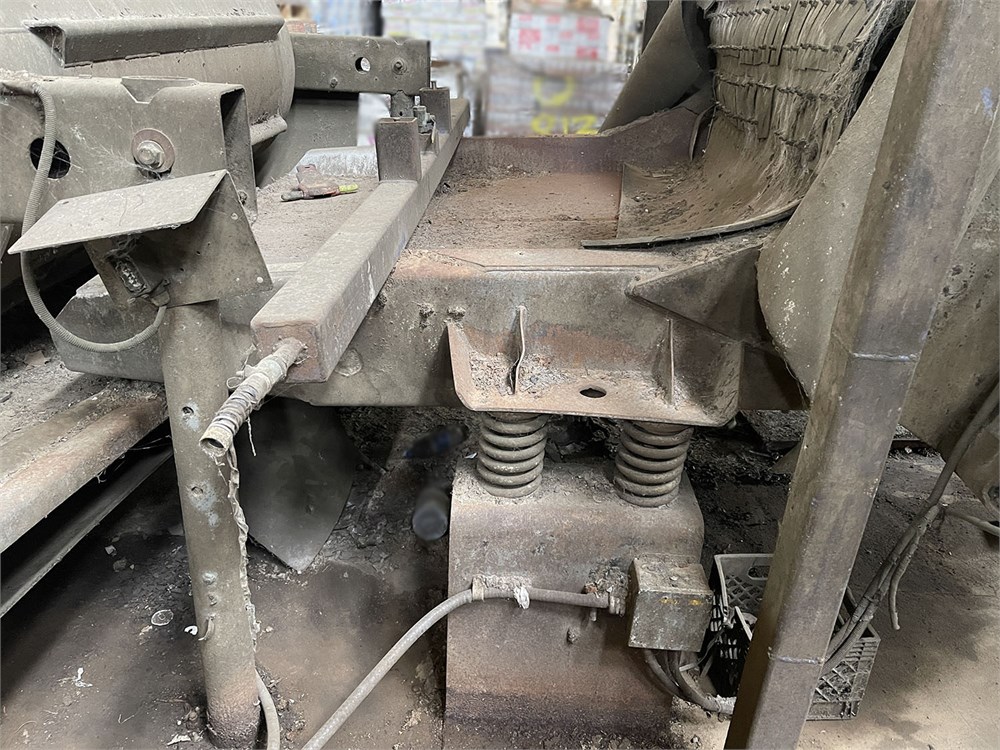

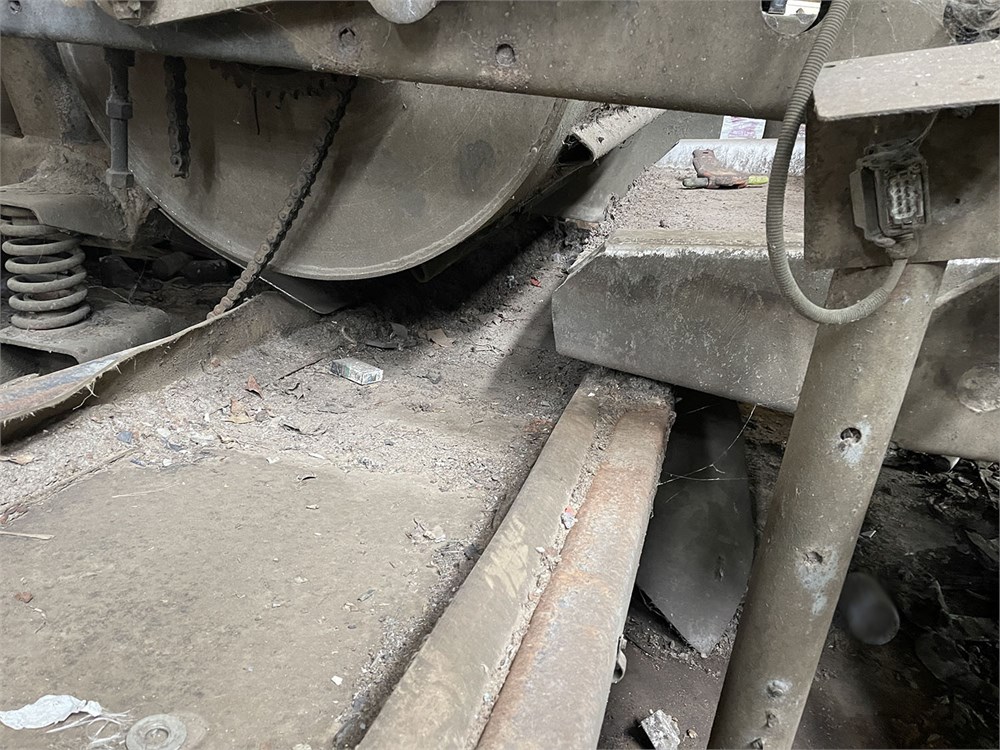

• Undermill oscillator
  • Overall width 80", usable width 66"
  • Overall length 17'

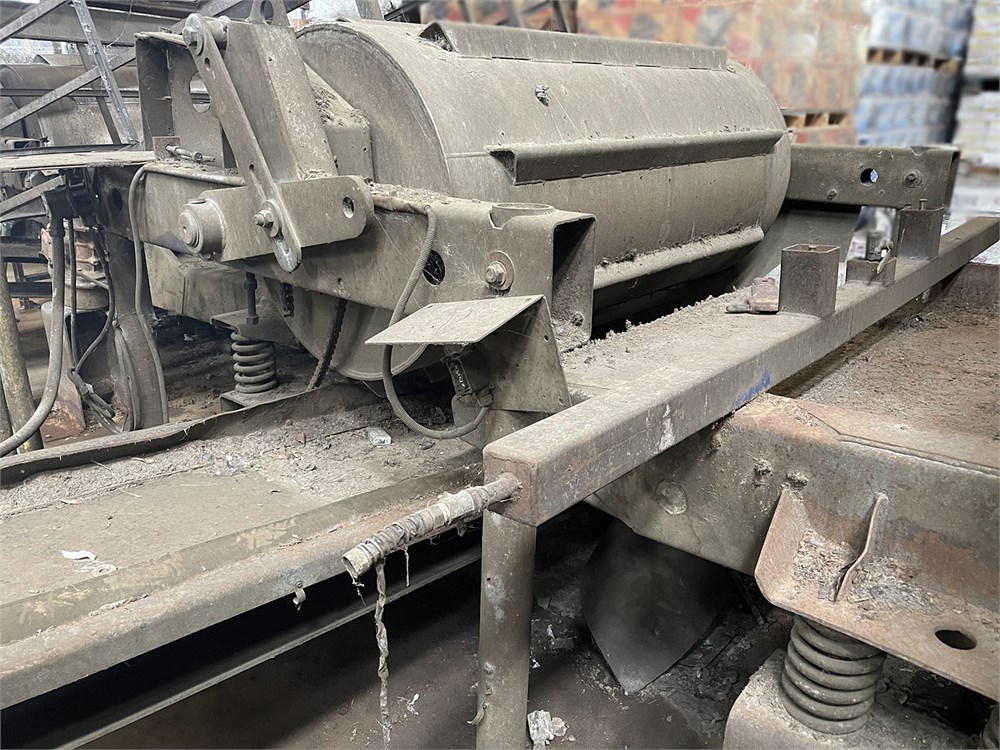

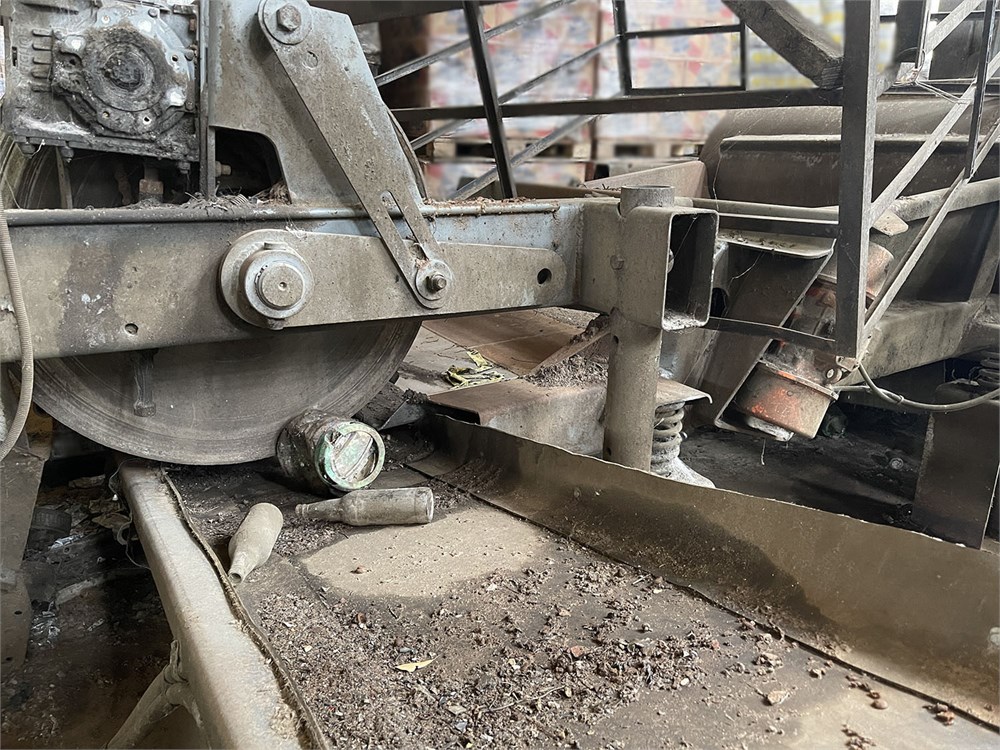

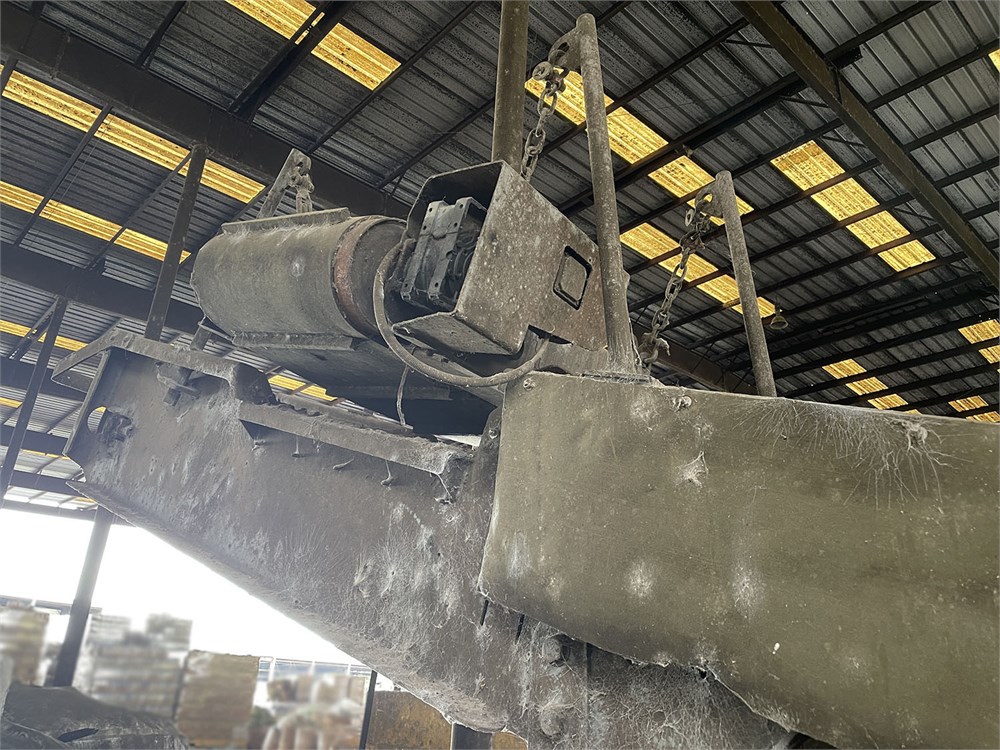

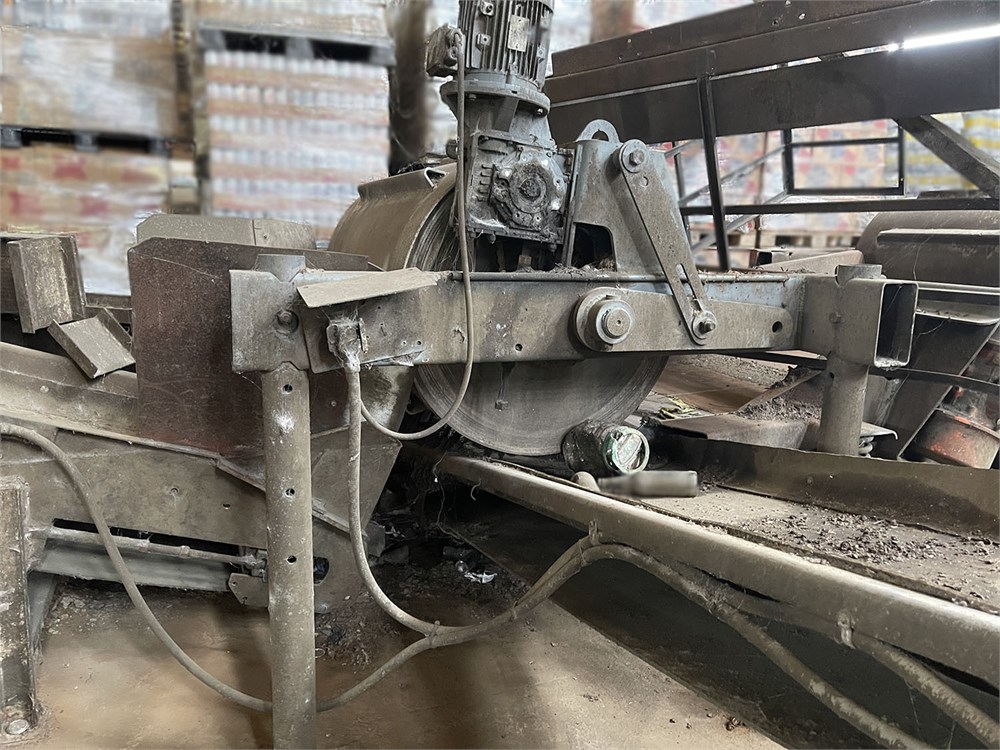

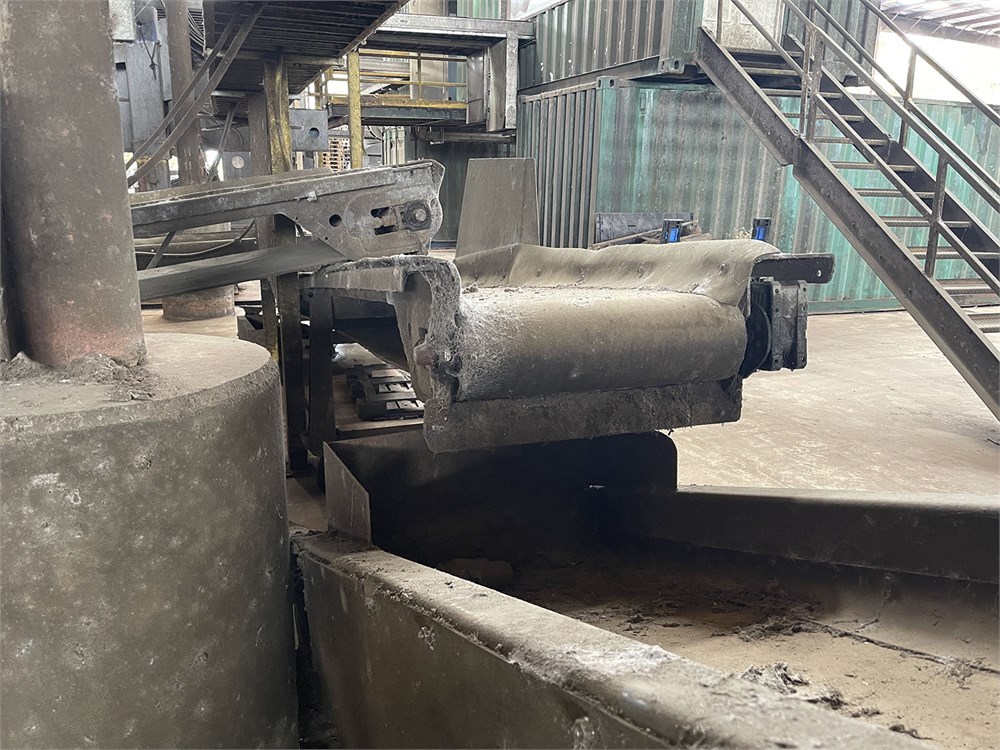

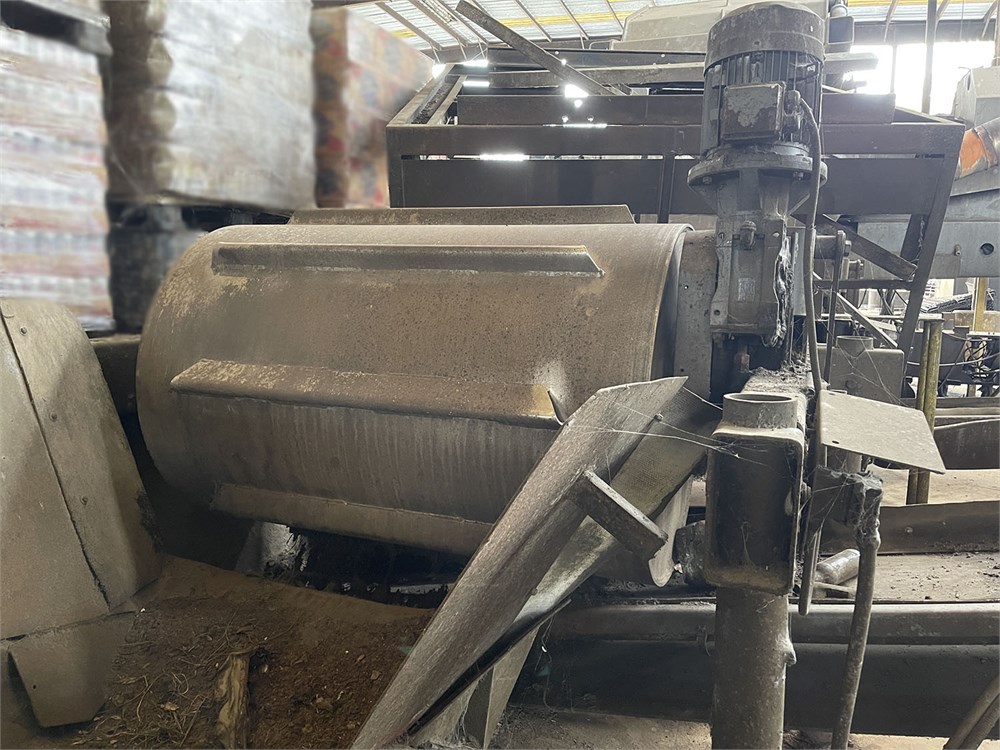

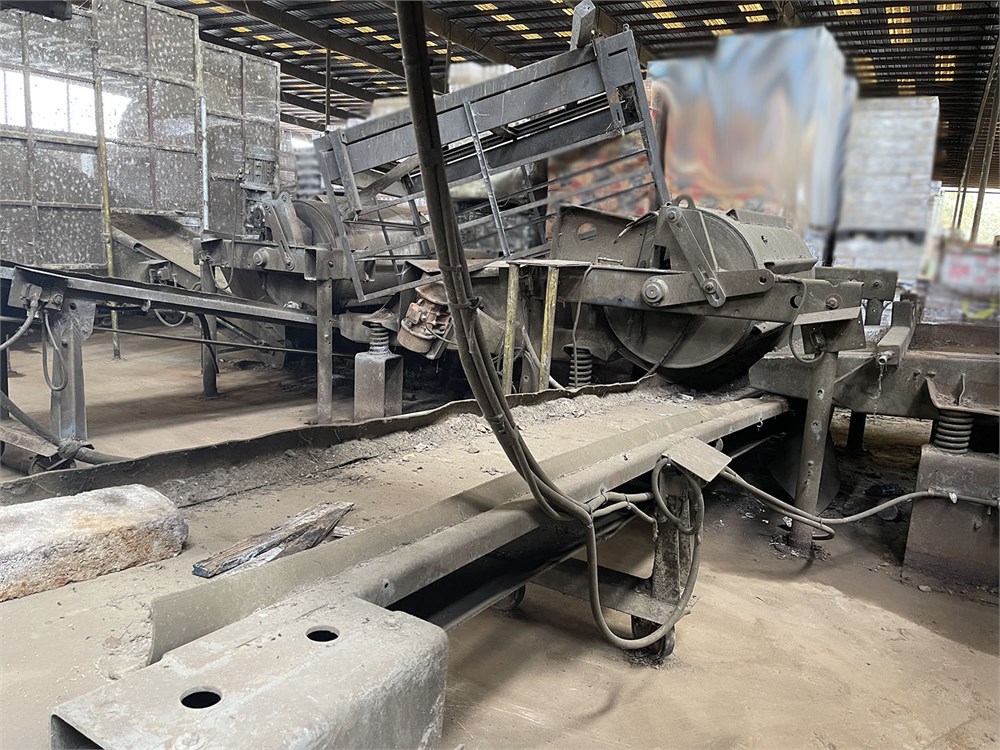

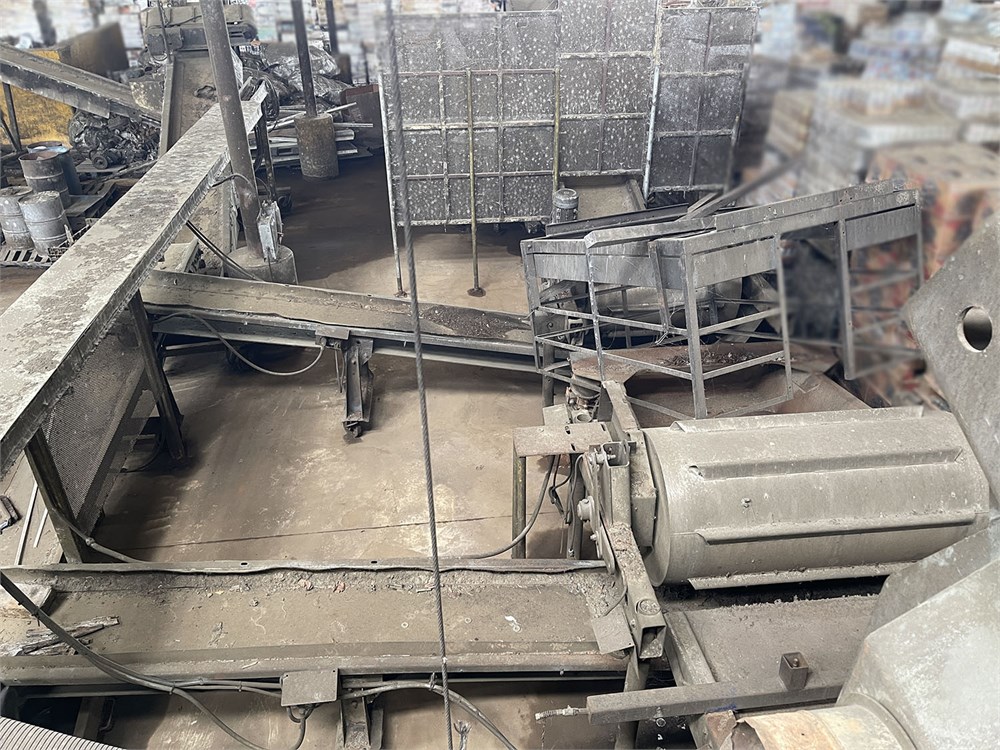

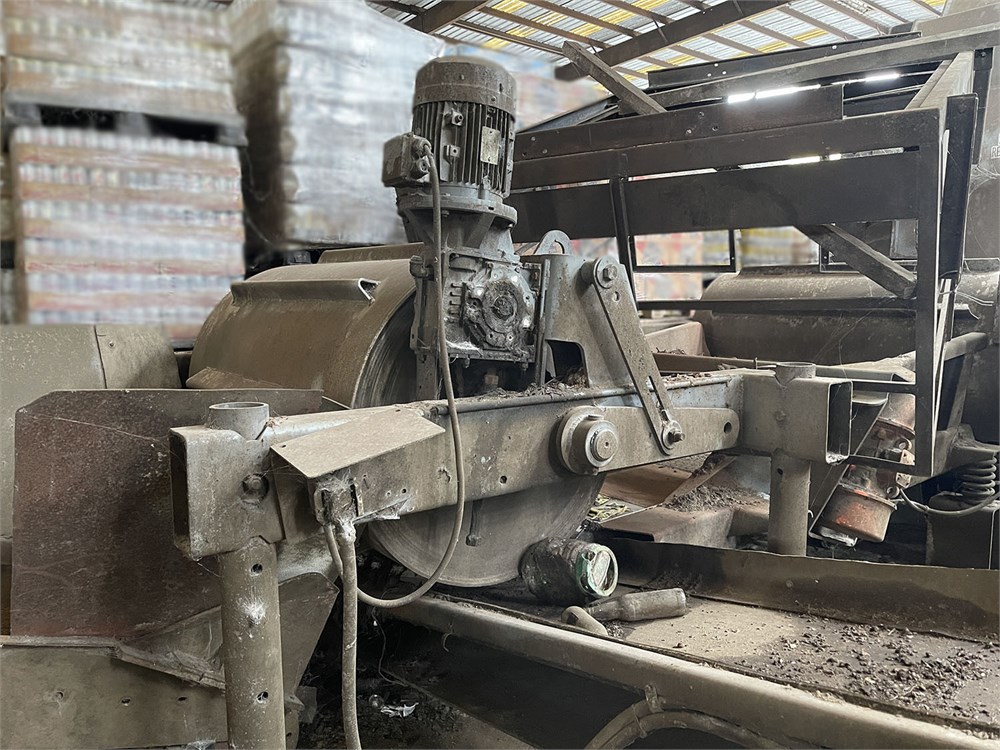

• Dual drum magnets with stand assembly
  • Both 78" wide by 40" in diameter
  • One has no drive motor

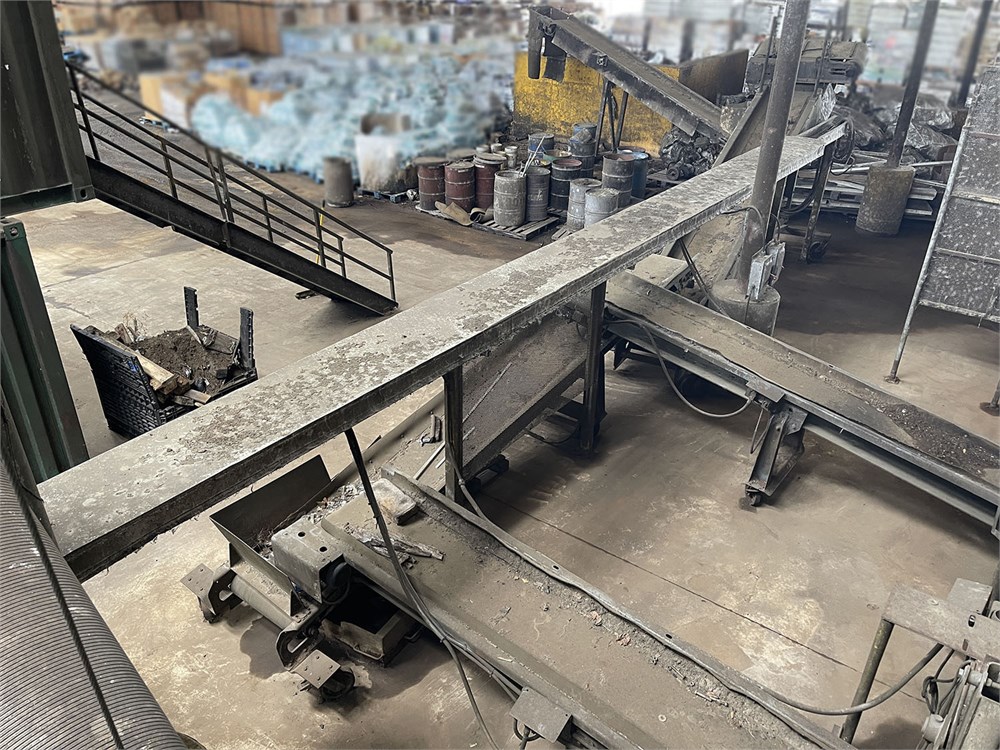

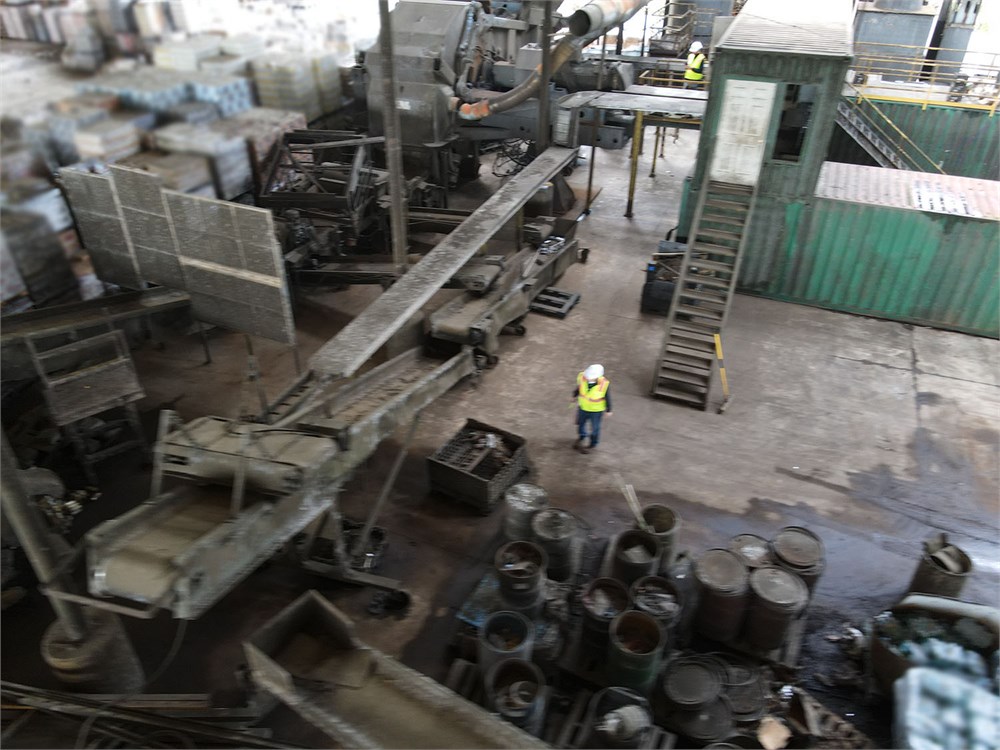

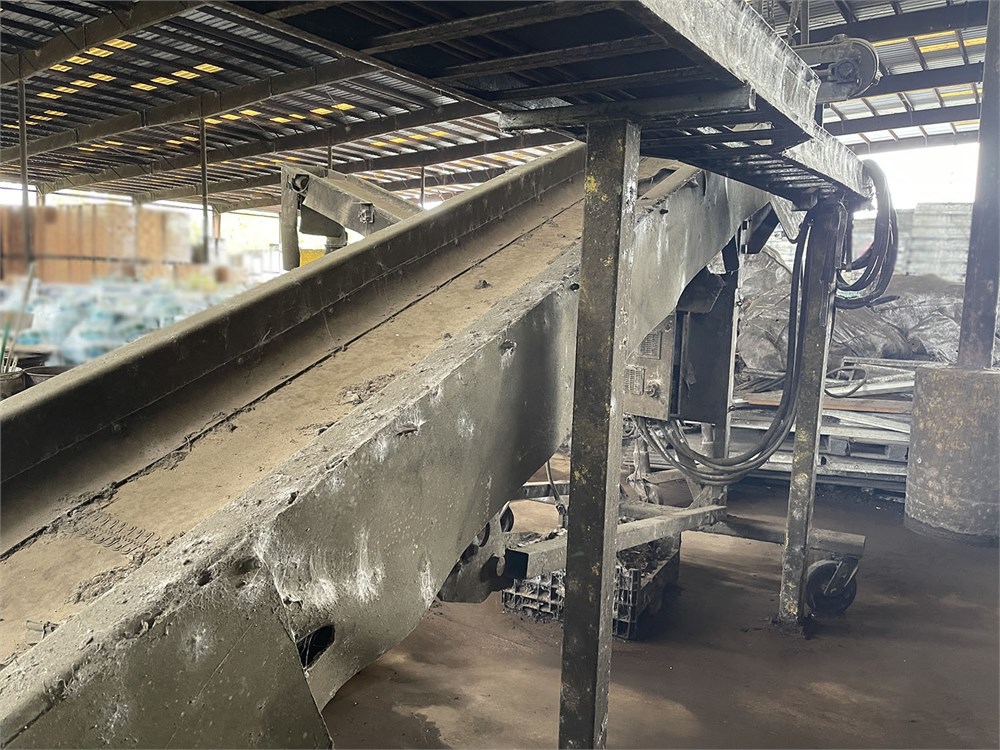

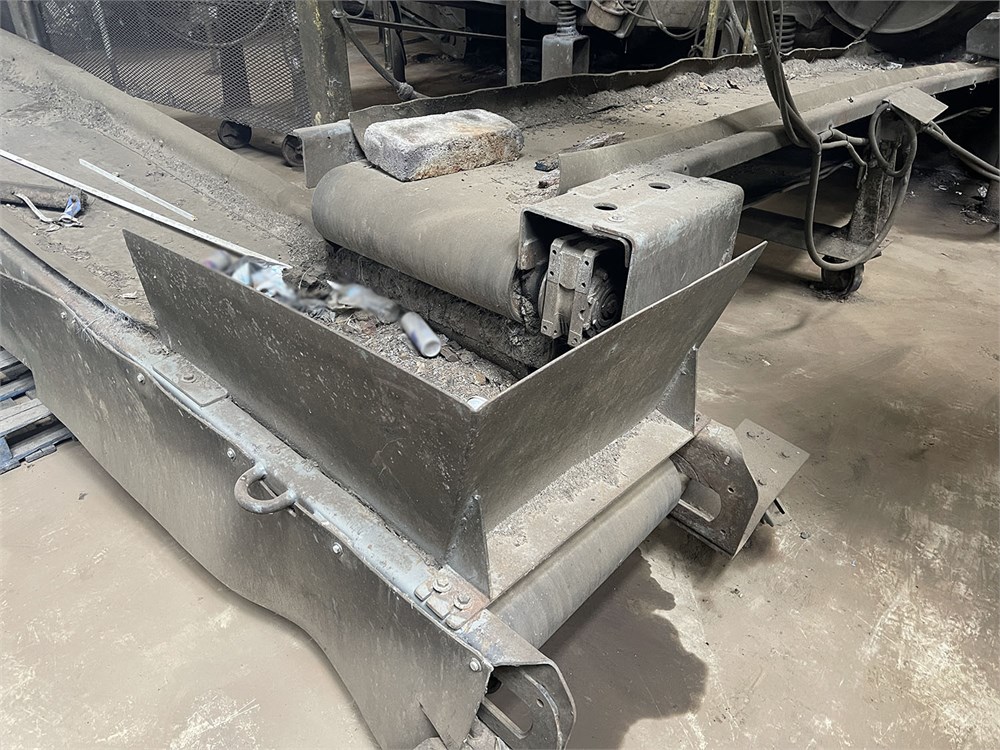

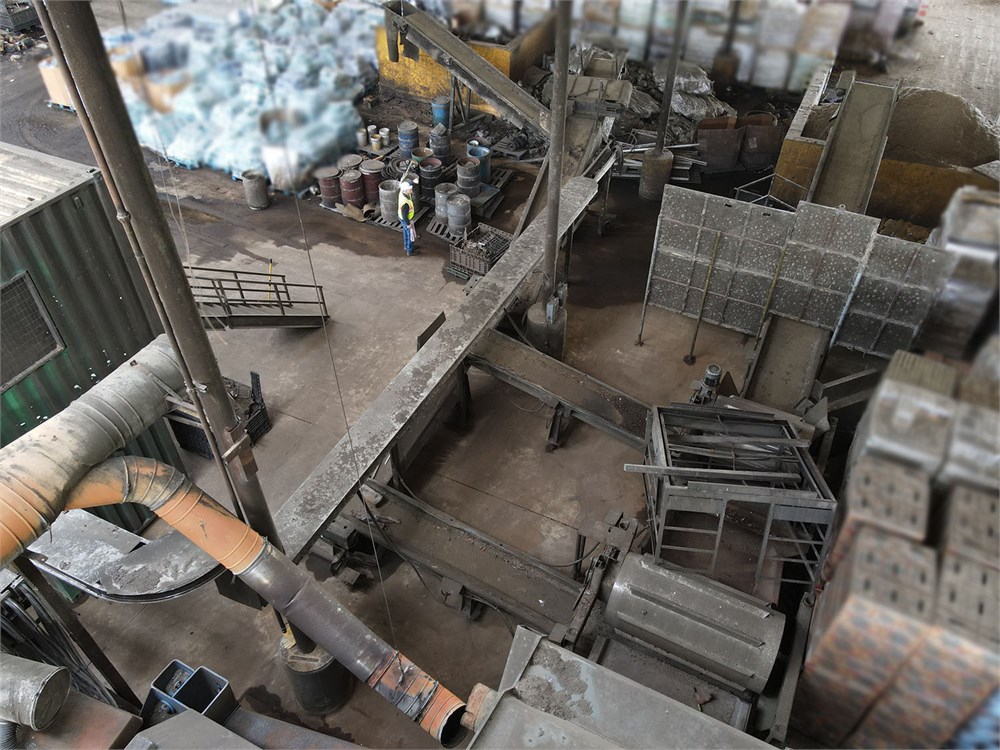

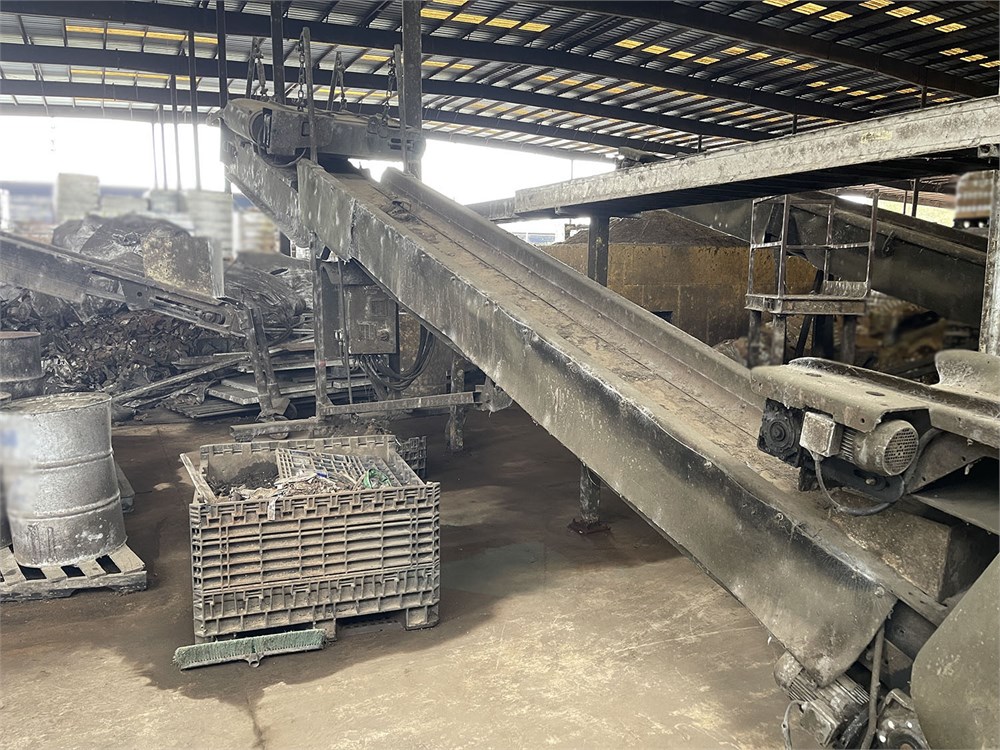

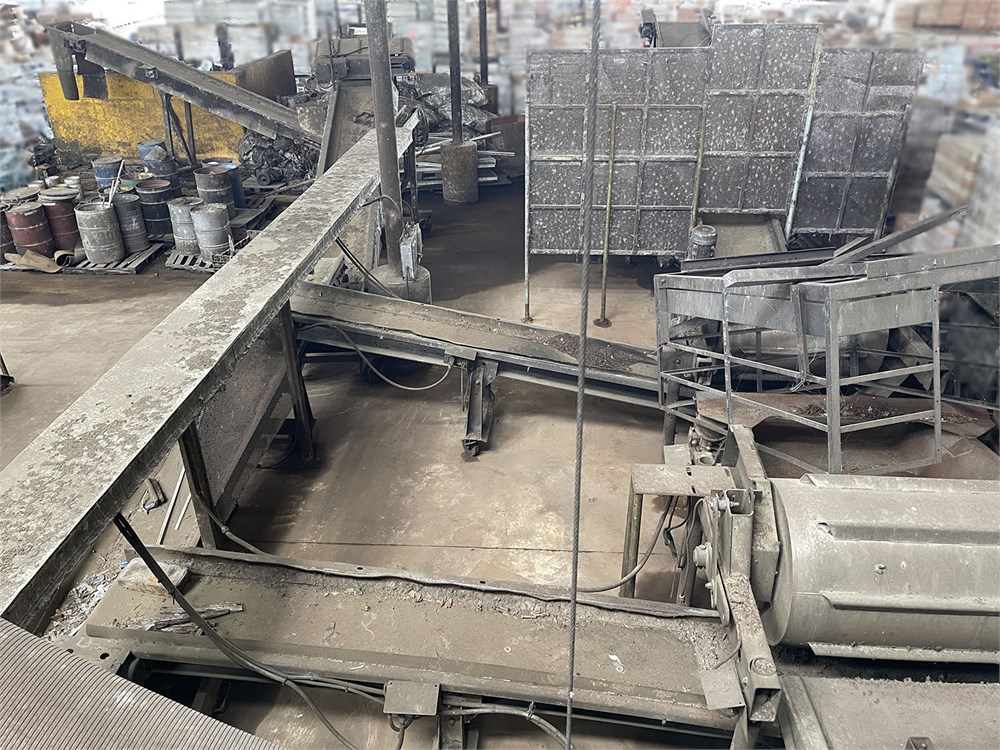

• Conveyor #1: Fluff discharge conveyor for drum magnet #1
  • 24" wide by 20' long
• Conveyor #2: Fluff discharge conveyor for drum magnet #2
  • 24" wide by 20' long
• Conveyor #3: Fluff transfer conveyor
  • 24" wide by 21' long
• Conveyor #4: Fluff transfer conveyor
  • 28" wide by 33' long

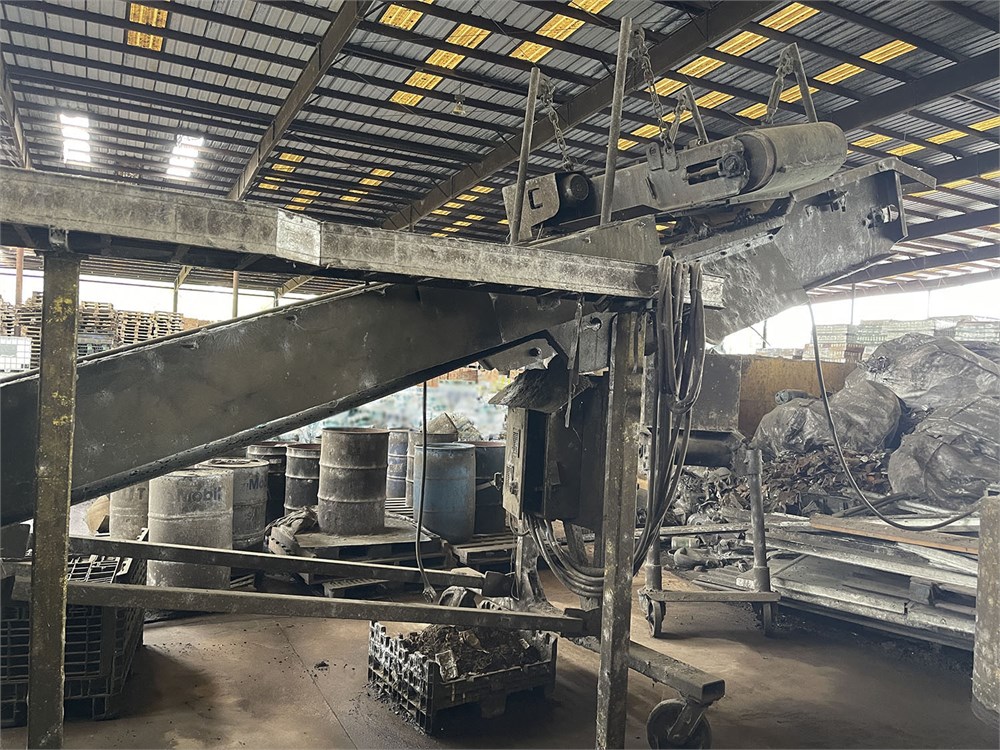

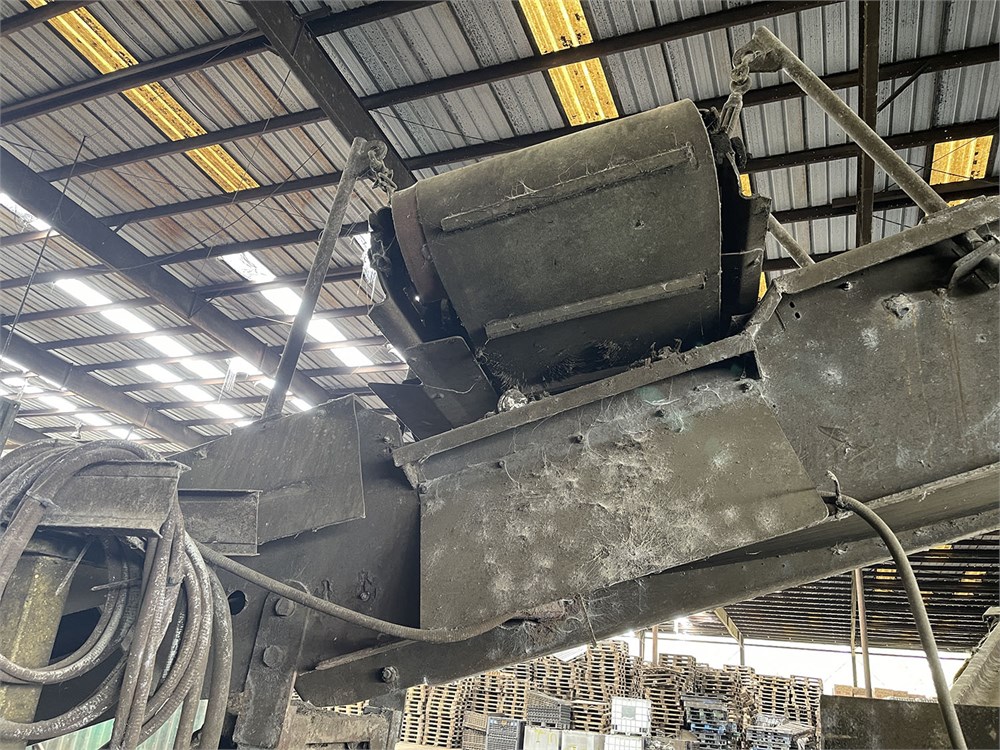

  • Overbelt magnet
    • 2' wide by 48" long

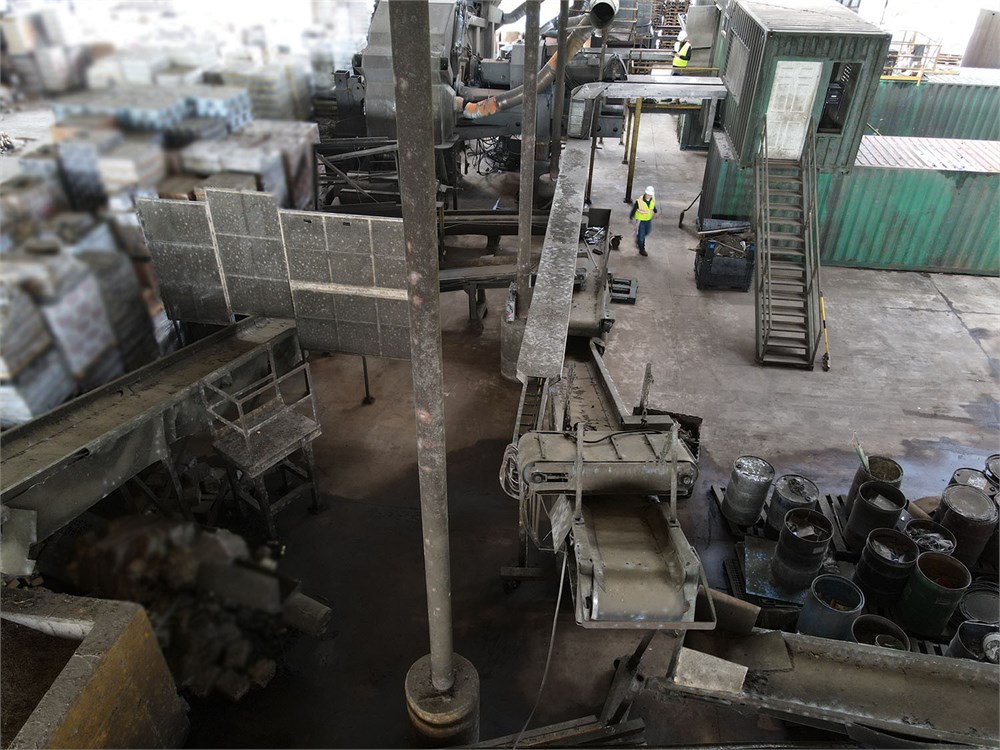

• Conveyor #5: Fluff stacking conveyor
  • 24" wide by 22' long
• Conveyor #6: Ferrous stacking conveyor
  • 36" wide by 34' long

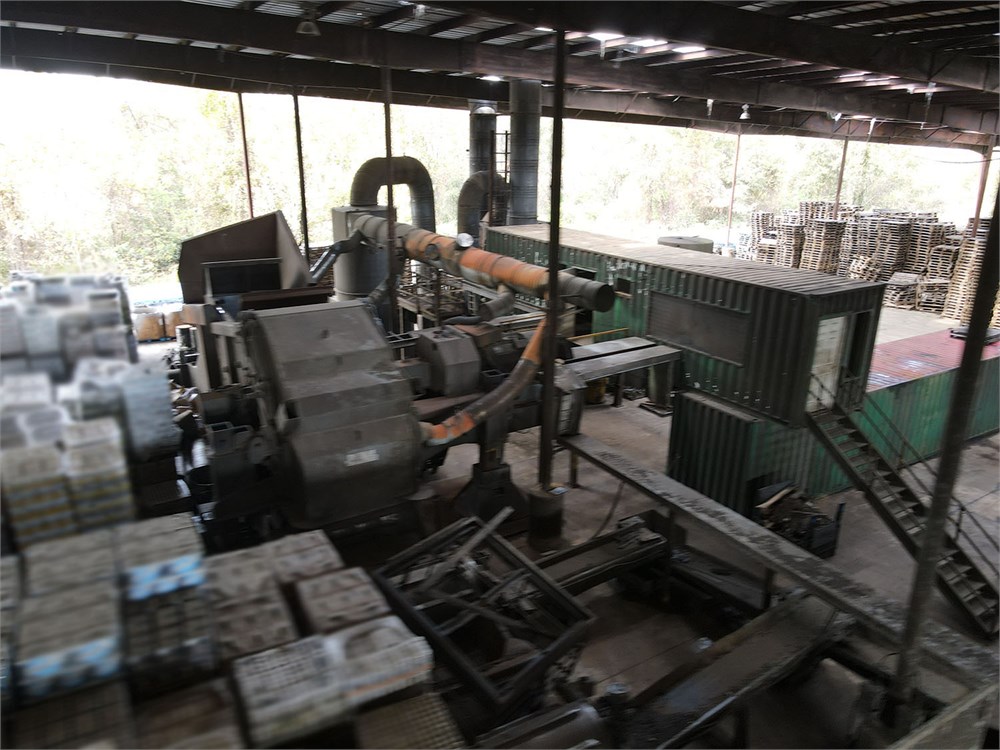

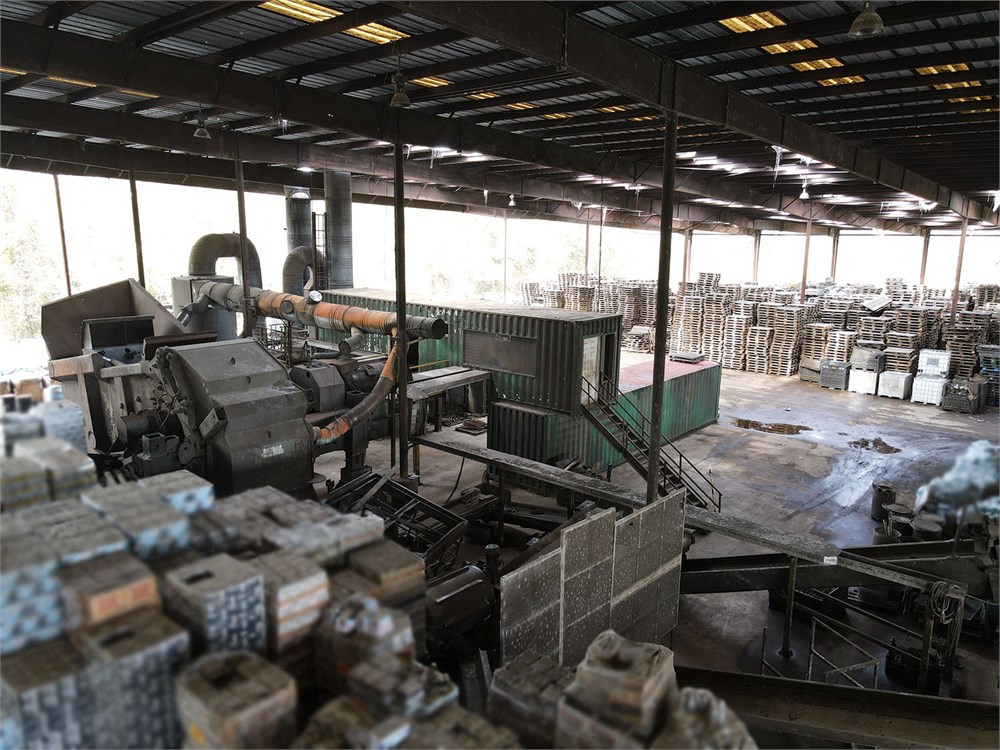

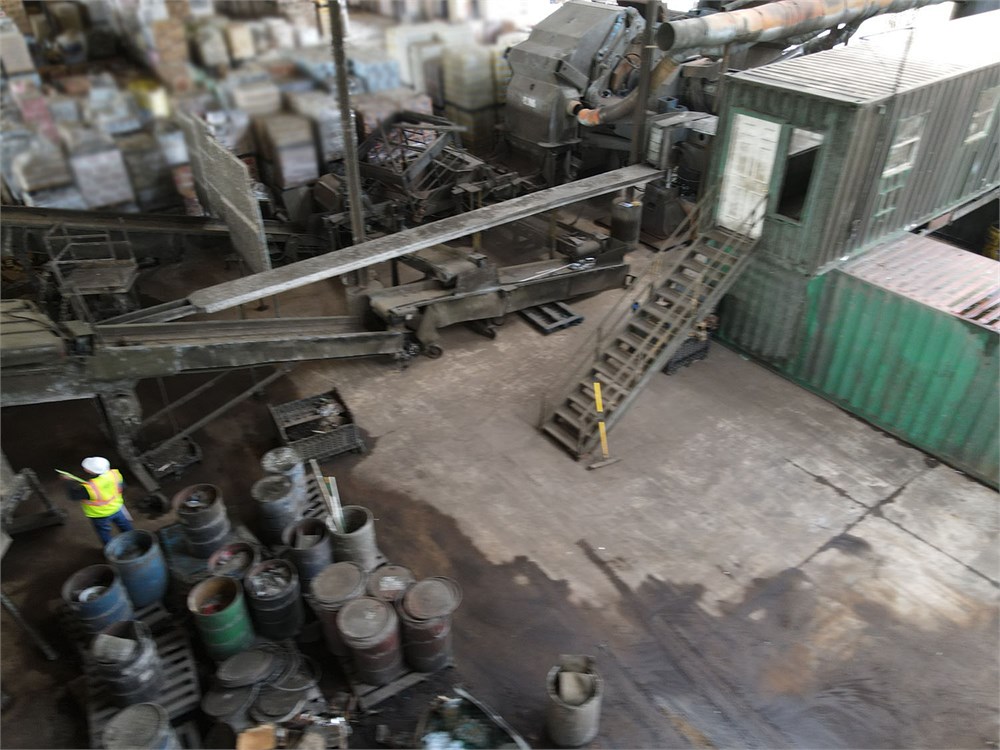

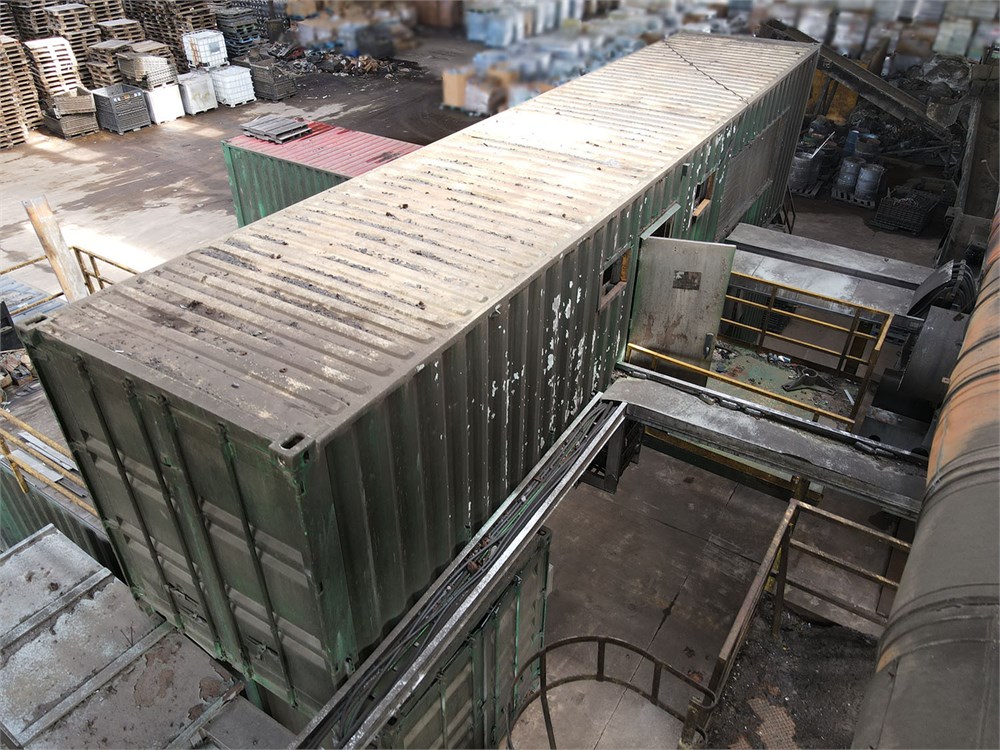

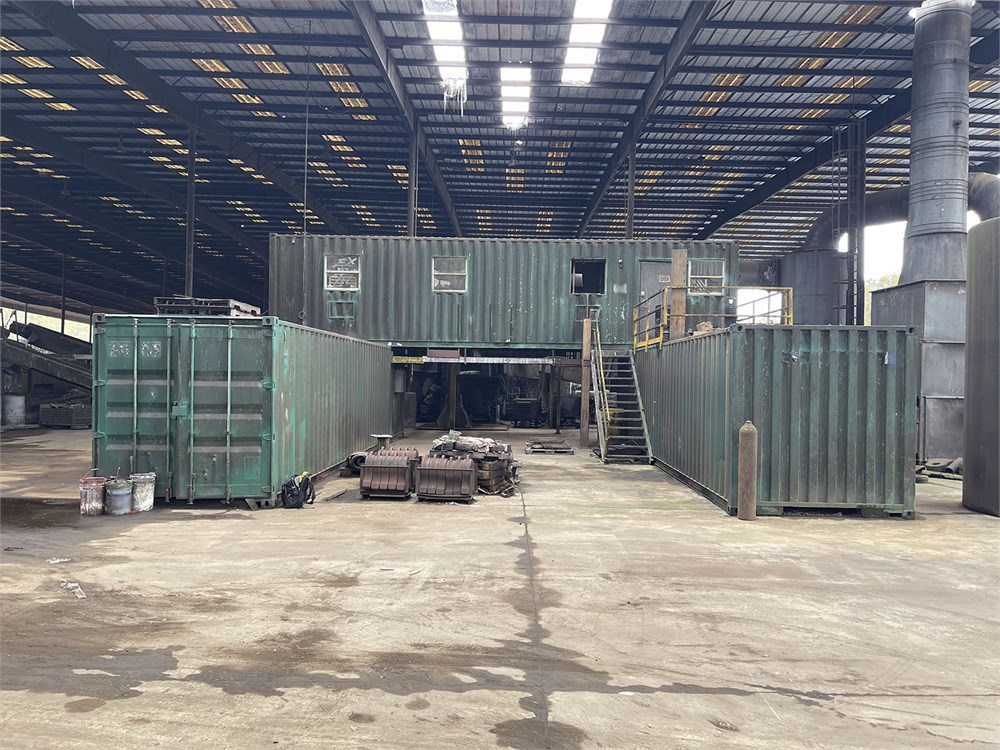

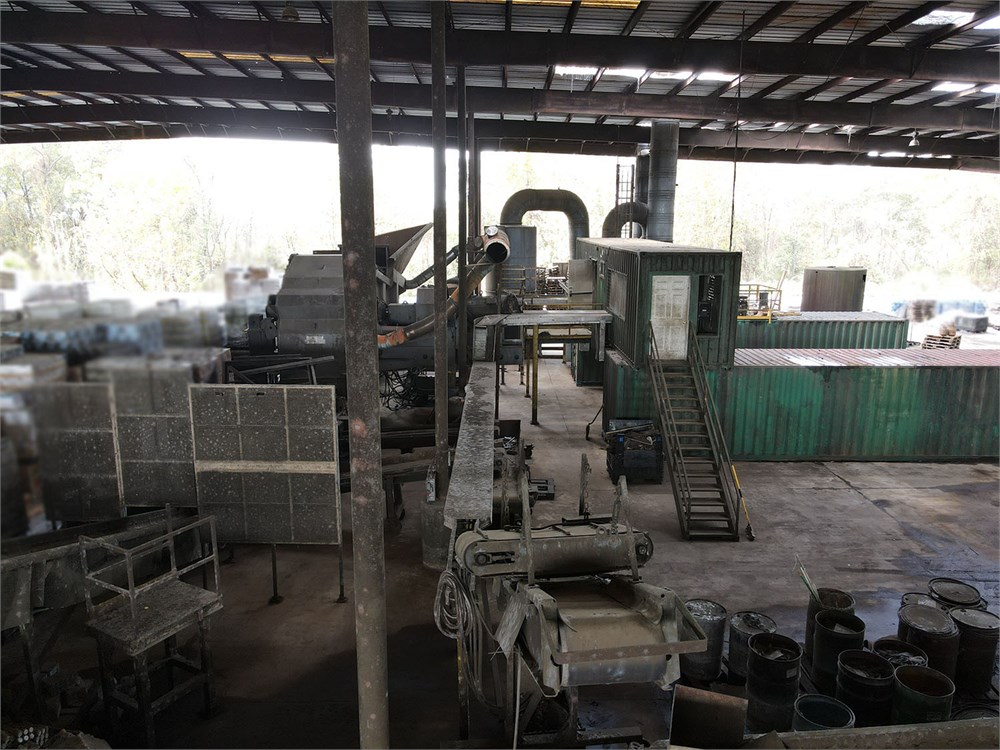

• (3) 40' shipping containers
  • (2) used as a base for the third and storage for parts and maintenance equipment

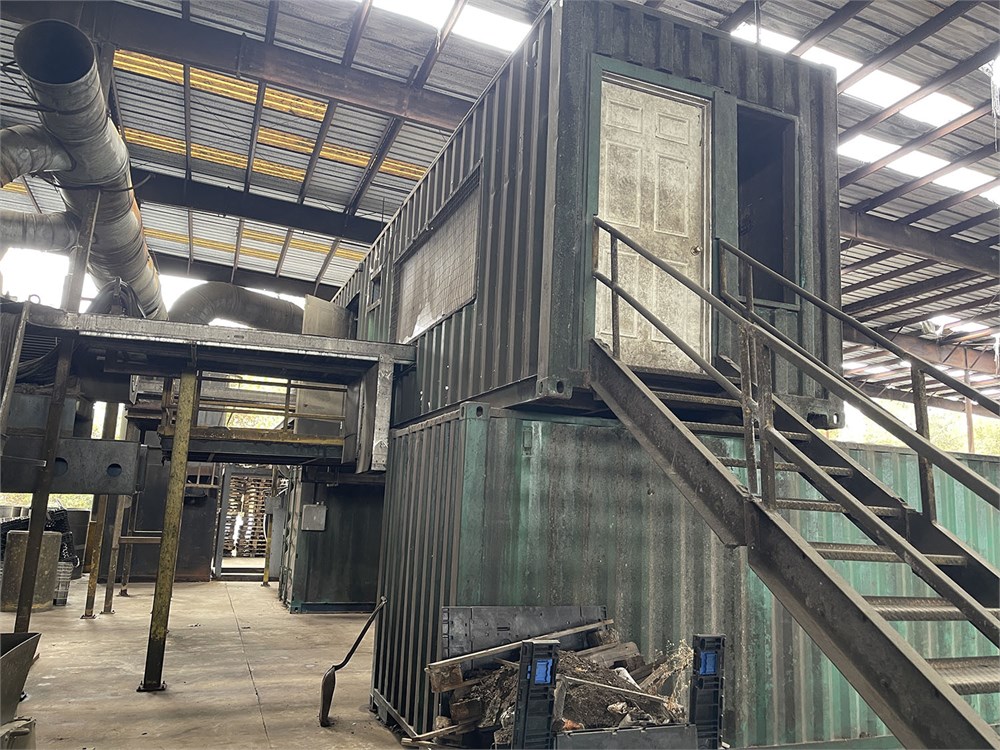

  • (1) used a the shredder control house for PLC's and breakers
    • Controls can be accessed via wifi for remote error diagnosis and troubleshooting

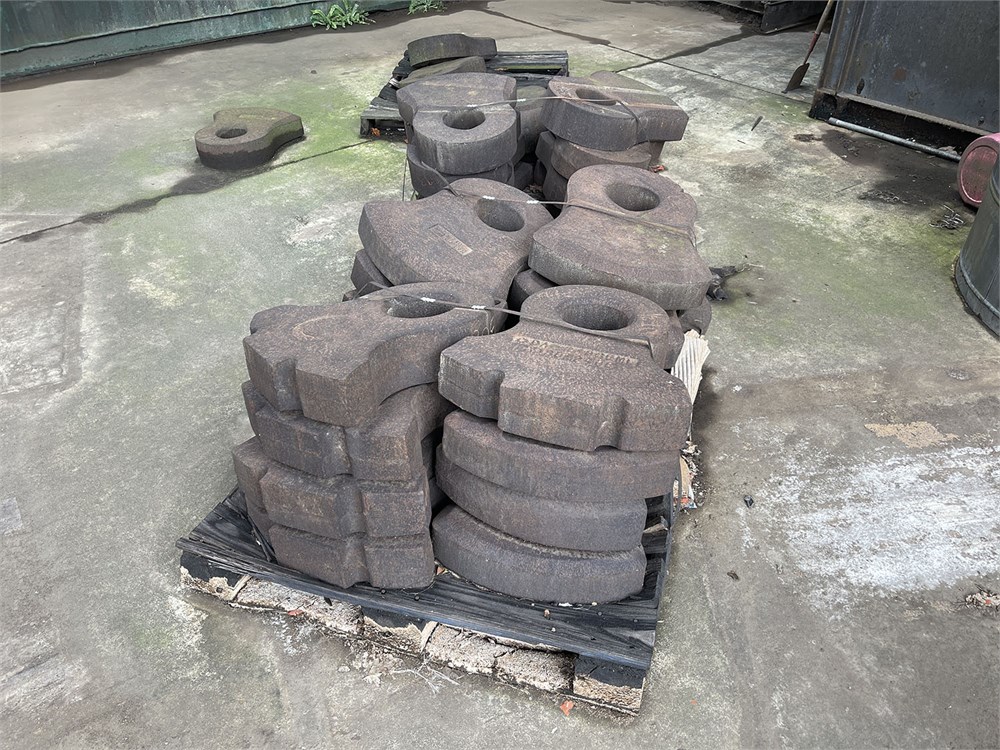

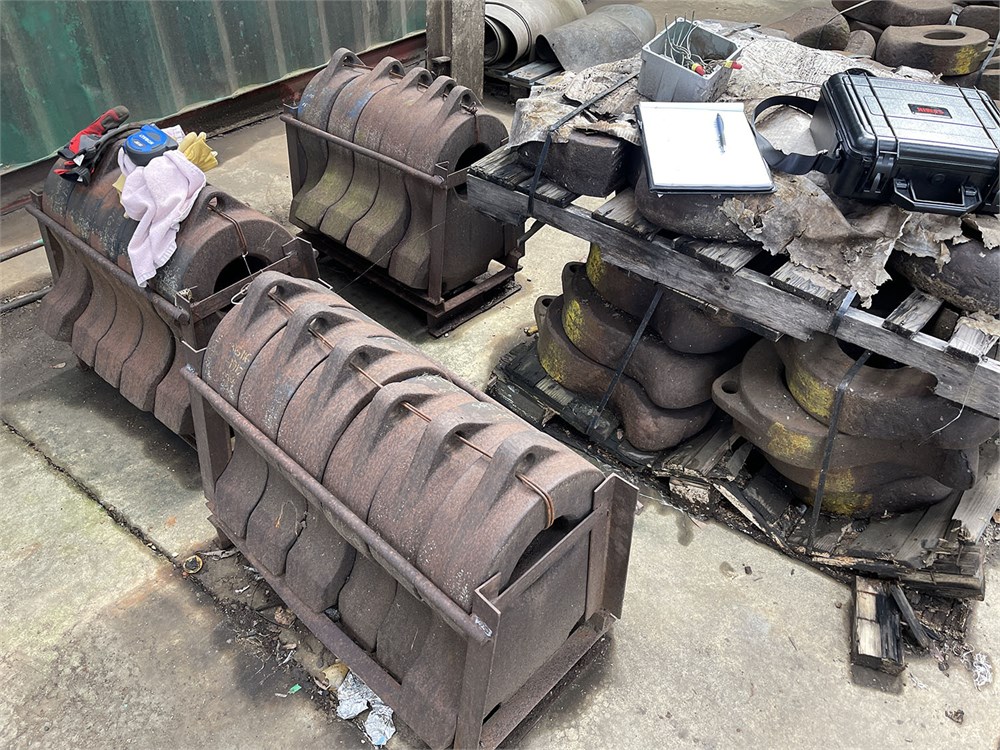

• Spare parts: (4) pins, (46) new hammers, (1) clutch, misc. spare parts and pieces

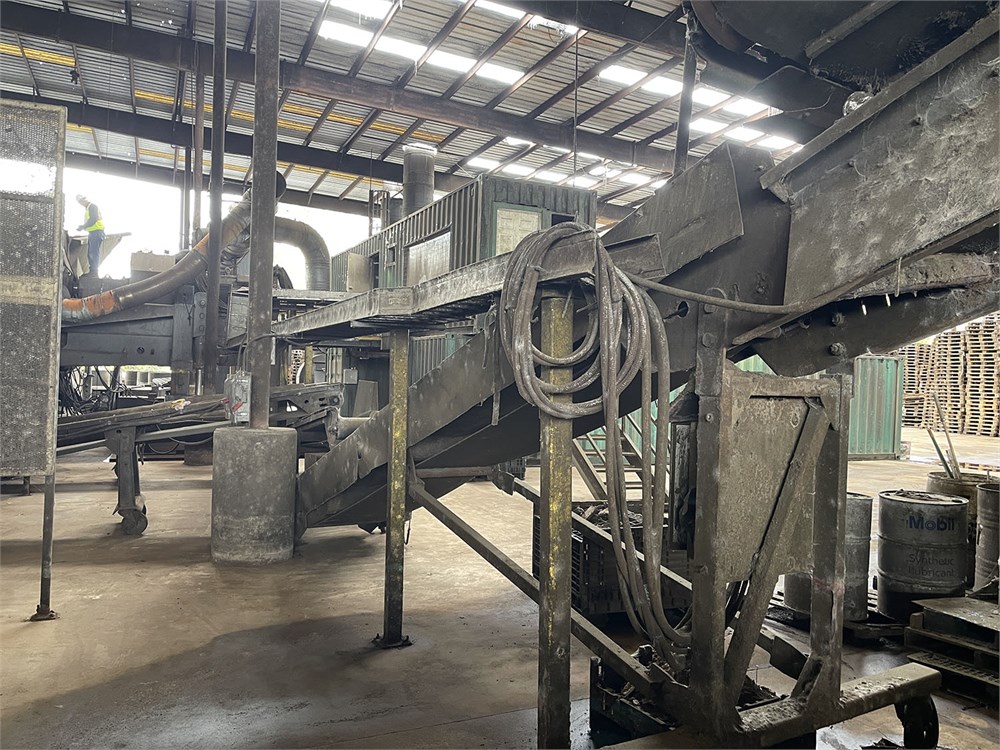

• Stairs & platforms

Shredder is sitting on 2" thick steel plates approximately 6' by 6' to help with weight distribution on a standard slab.

All power runs overhead in electric troughs and not in conduit in the concrete. This will allow setup on a flat slab without special foundation plans.

This machine is being sold "AS IS WHERE IS" and buyer will be required to remove within 30 days of purchase unless other arrangements are made in writing with the Seller.
