2023 3Tek Bravo 6280 Mobile Hammermill Shredding System

SN: 6218
Hours: 730

Infeed Conveyor Specifications:

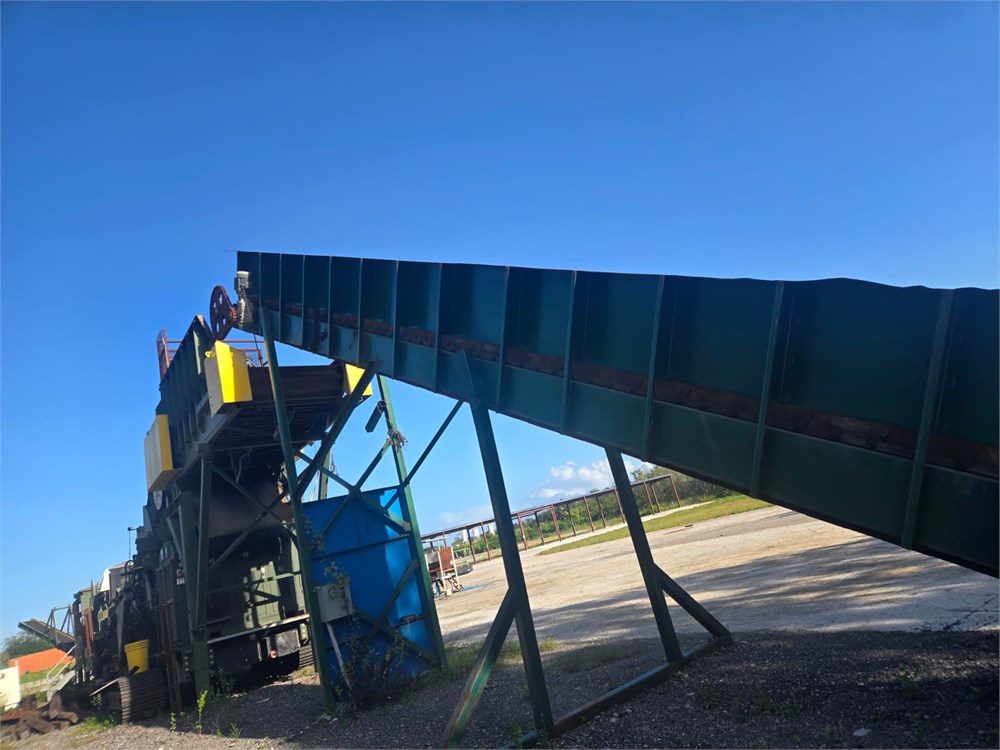

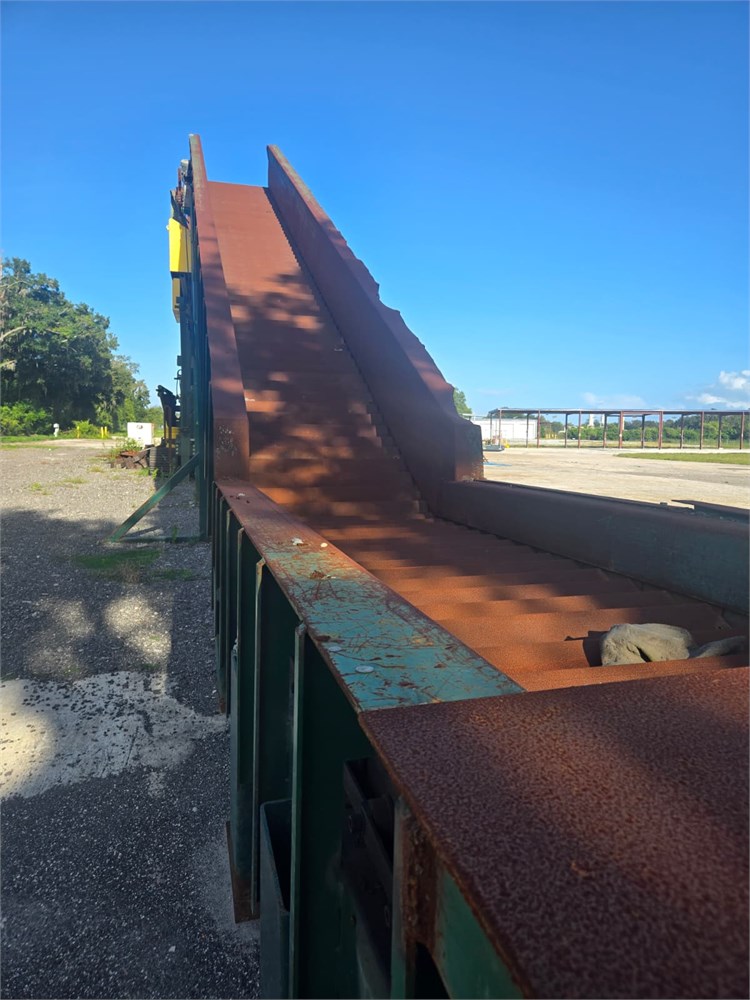

• Protera Recycling Systems 7240 z-pan with flights
• Lower feed section 15 ft
• Incline section 30 ft at 30 degrees
• Nose over section 8 ft

3Tek Bravo 6280 Mobile Hammermill Shredder Specifications:

• Disk rotor design: 4 pins with 9 disks
• Width side wall to side wall: 80 in
• Shredder wall thickness: 1.5 in
• Wear liner thickness: 3 in
• Infeed conveyor: 19 ft integral to feed ramp with steel support truss
• Feed ramp: 10 ft long
• Single feed roll: 42 in diameter tip to tip with variable speed 6-10 RPM

Rotor Details:

• Rotor speed: 750 RPM
• Hammer swing diameter: 62 in tip to tip
• Rotor bearing and lubrication: 10 in bearings with grease lubrication and RTD (resistive temperature device) on each bearing for protection
• Hammer pin diameter: 3-7/8 in

Hammers:

• Hammer weight: 240 lbs
• Material: Cast manganese
• Quantity: 8 as standard
• Anvil: 3 piece bolt-in design
• Reject door: 24 in tall. Designed for aggressive discharge of un-shreddables.
• Back wall: 5 in thick; reversible to increase available life.
• Reject door & back wall: Angled grate opening to improve discharge efficiency

Feed System:

• Infeed conveyor integral: Nominal 19 ft heavy duty piano style infeed conveyor. This horizontal infeed conveyor is integral to the feed ramp while the outboard end is supported by an adjustable vertical reinforced steel support member. The infeed conveyor speed is adjustable and controlled automatically by the Cruise Control feature built into the Allen Bradley controls.
• Feed Ramp: 10 ft long, replaceable AR wear plates under feed roll. Side walls ½ in thick.
• Single Feed Roll System:
  • Feed roll speed: 0-10 RPM
  • Hydraulic drive: One hydraulic motor driven by closed loop piston pump
    • Feed Roll:
      • 36 in drum diameter, 42 in outer tooth diameter
      • Construction: Using 1 in thick rolled steel with 3 in abrasion resistant teeth supported by heavy duty flange bearings

Track Undercarriage Mount:

• Size: 345 class
• Length & width: 16 ft long with 36 in triple grouser pads

Shredder Takeaway Conveyor:

• 48 in wide by 12 ft long steel belt

Production Engine:

• Manufacturer: Caterpillar Tier 4 Certified by factory
• Model: C32, 32.1 Liter displacement
• Engine HP: 1125 HP @ 1750 RPM

Drive Train:

• Integrated clutch: PT Tech
• Speed reducer: Two heavy duty pulleys with Kevlar V belts reduce speed from 1750 diesel engine RPM to 750 shredder rotor RPM. This drive train design is specifically chosen to handle the shock loads and high torque required during the shredding operation.

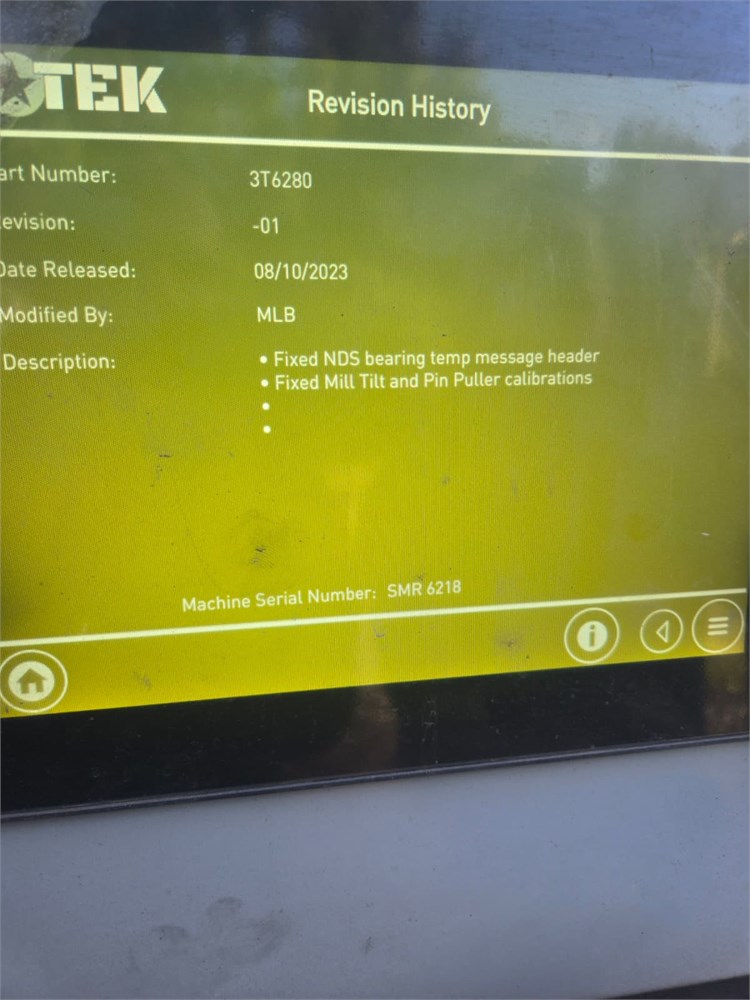

3Tek System Controls:

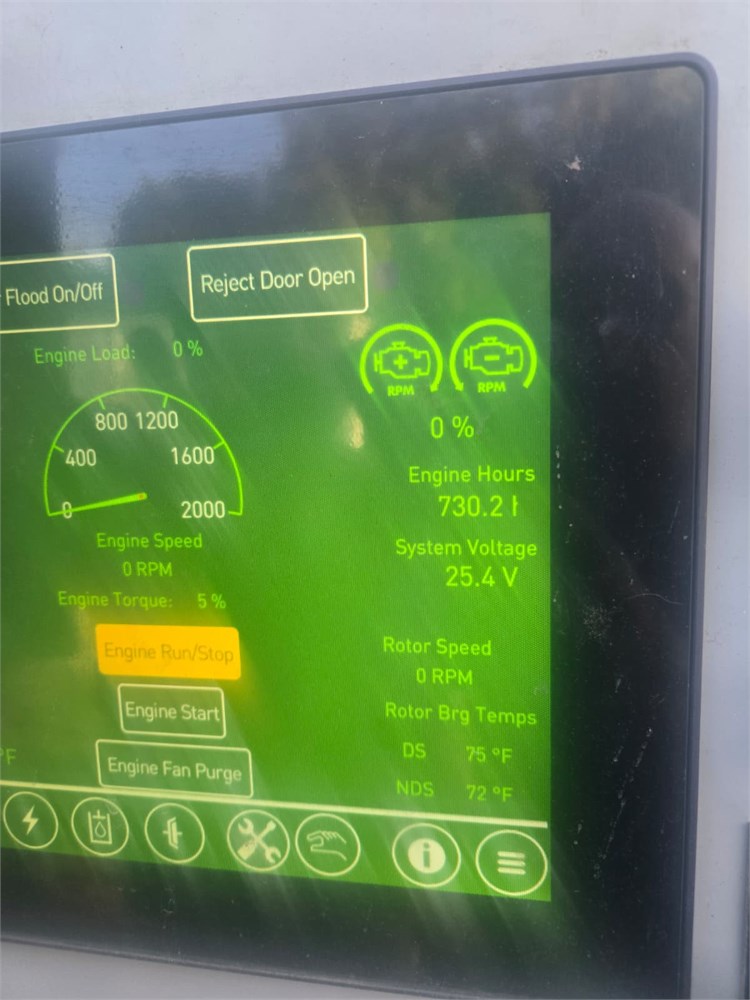

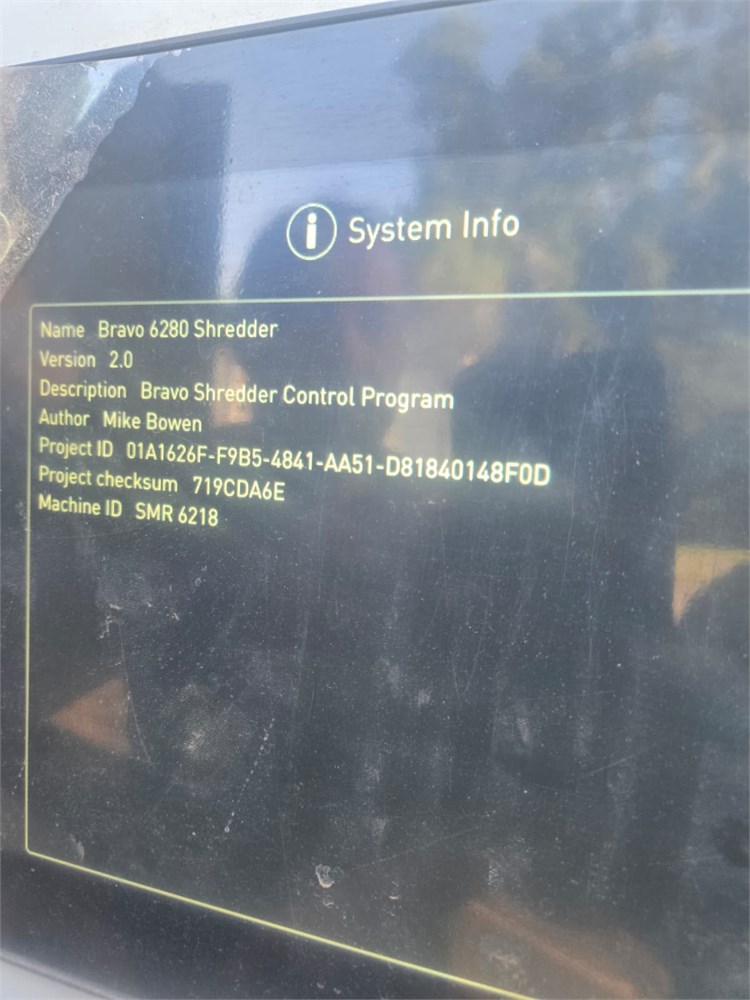

• IQAN Mobile Control platform for shredder performance and diagnostic information
• Control system with remote master display has multi colored graphical module with easy to read display
• Fully functional automatic feed control system designed to maximize production by analyzing machine performance inputs from multiple sources

Compact Pin Puller:

• Included as standard

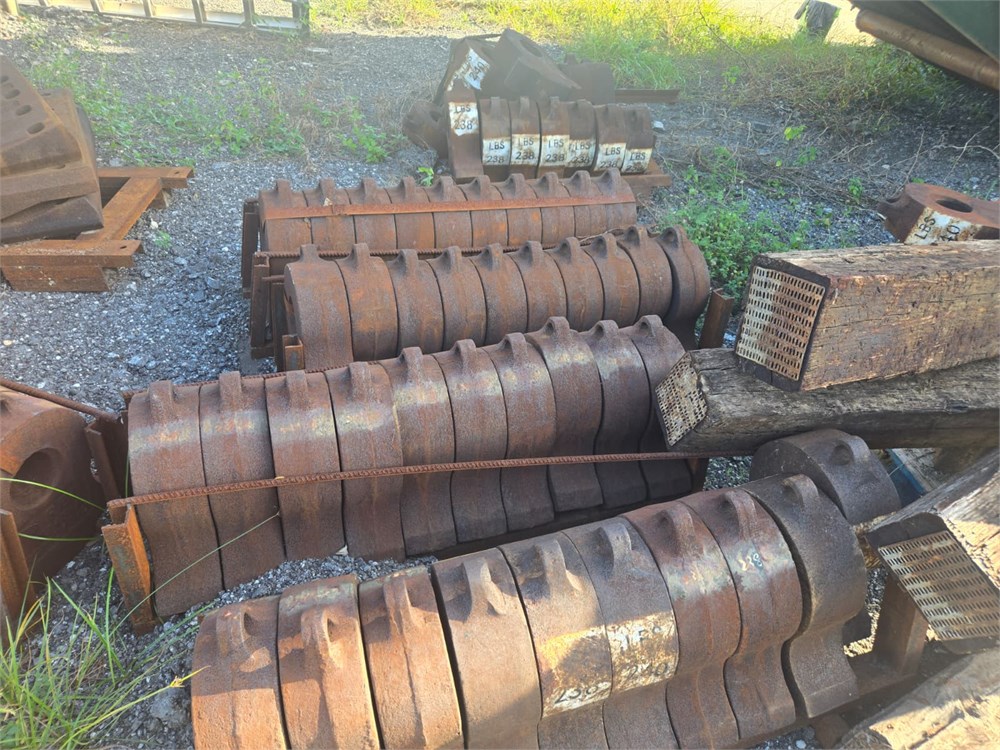

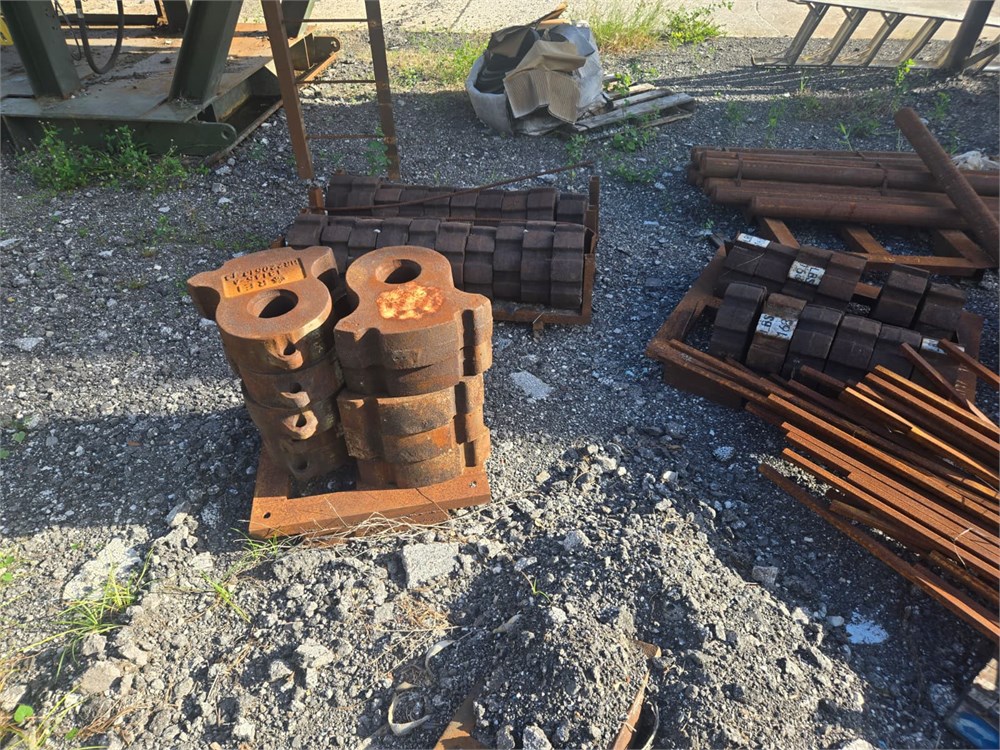

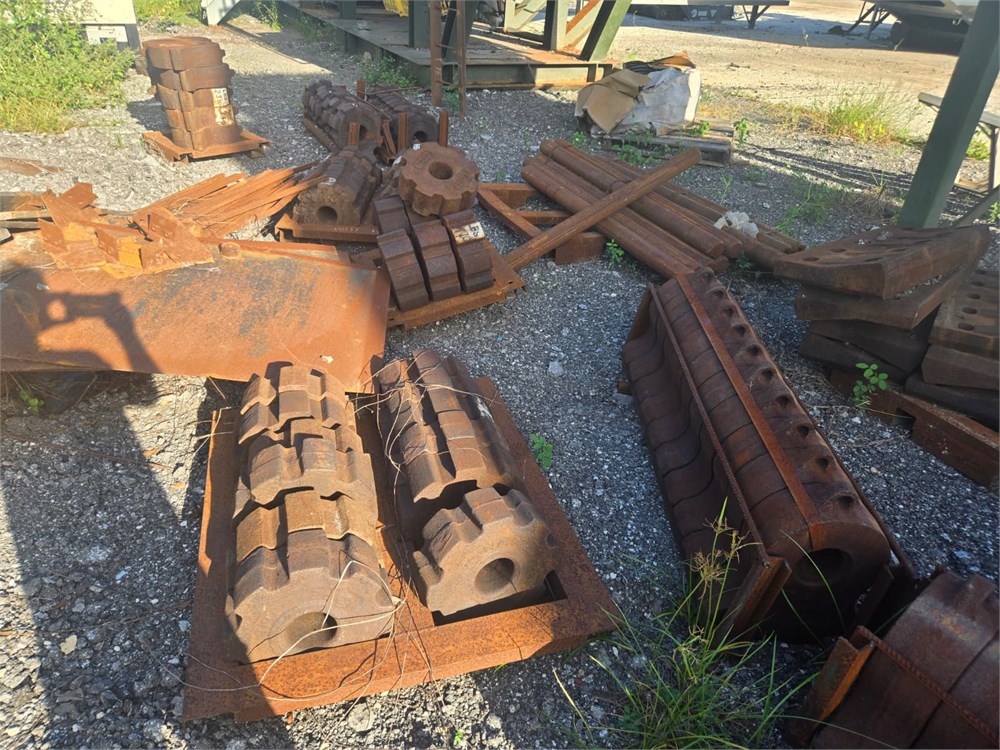

Other shredder castings or spare parts that go with the purchase:

• Approximately 80 hammers
• Approximately 36 pin protectors
• Approximately 10 pins
• Approximately 8 grates

RECON Mobile Ferrous Separation System Specifications:

SN: TBD

• Feed hopper
• Double drum magnet
• Double Drum Magnet:
• Make: Eriez
• Model: SRP axial pole 48 in x 48 in
• Magnet: Permanent ferrite pick-up & discharge magnet. Axial pole assembly for clean ferrous recovery.
• Drums: 47.2 in diameter 59 in working width
• Four-man picking station
• Four bay, 48 in x 19.9 in
• Fluff removal
• Air knife 60 in, rotary drum separator on VSD
• Accelerator belt 60 in x 138 in
• Centrifugal cyclone separator: double vortex air flow
• Tracked chassis
• Service platform with railing
• Cat XQ125 KVA genset, powers entire machine
• Ferrous stacking conveyor single fold 26 ft x 42 in
• ASR take away conveyor 26 ft x 42 in
• Weight 55,115 lbs

ECS 60 Mobile Eddy Current Separator:

SN: TBD

• Vibe pan feeder 98 in x 55 in
• Tracked chassis
• Magnetic drum magnet for tramp ferrous capture 16 in x 79 in
• Stacking conveyor for waste take away 13 ft x 32 in double folding conveyor for fluff take away
• Service platform with railing
• Cat XQ60 KVA genset powers the entire machine
• Stacking conveyor for Zorba take away 6.6 ft x 24 in
• Eriez REV X-E ST 22-60 Eddy Current Separator 9.9 ft x 4.9 ft
• Stacking conveyor for tramp ferrous take away single fold 6.6 ft x 79 in
• Weight 35,300 lbs

Reason for selling:

• Company is out of business and has closed its doors and is selling the shredder where it was operating

Selling as-is where-is.

Seller will NOT help to dismantle.

More pictures and video to come shortly, stay tuned.
