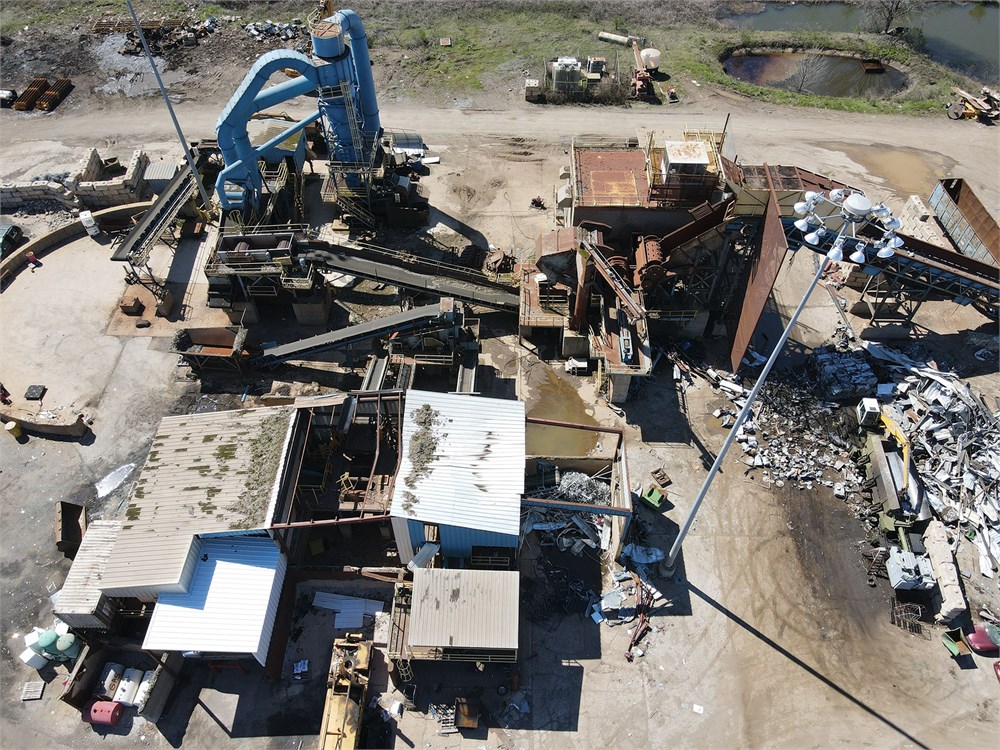

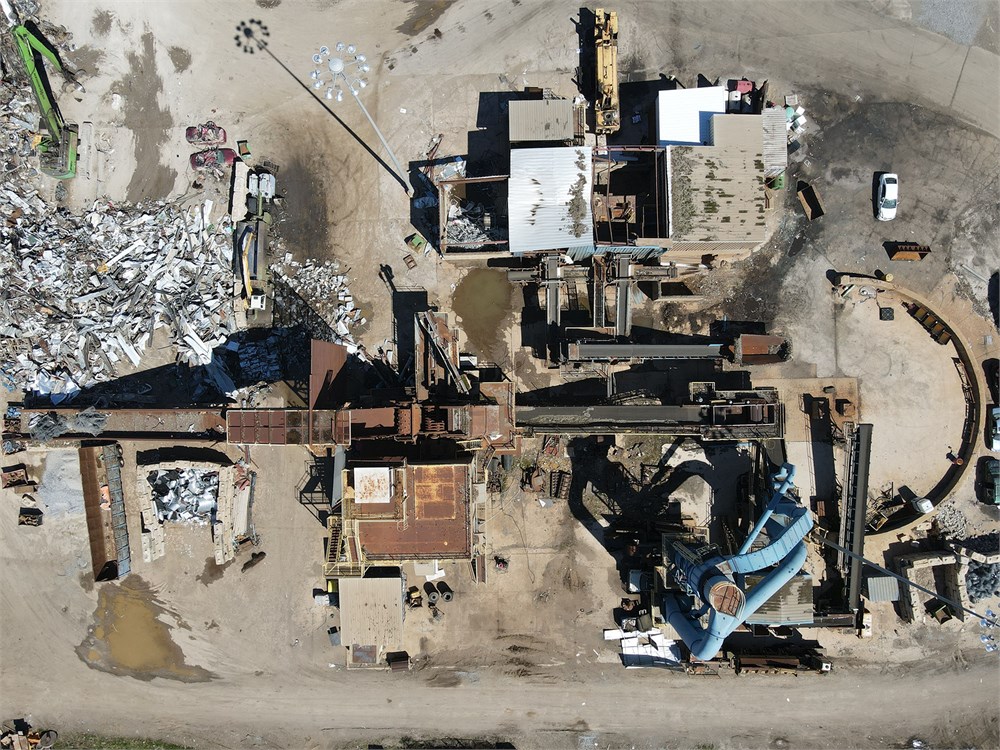

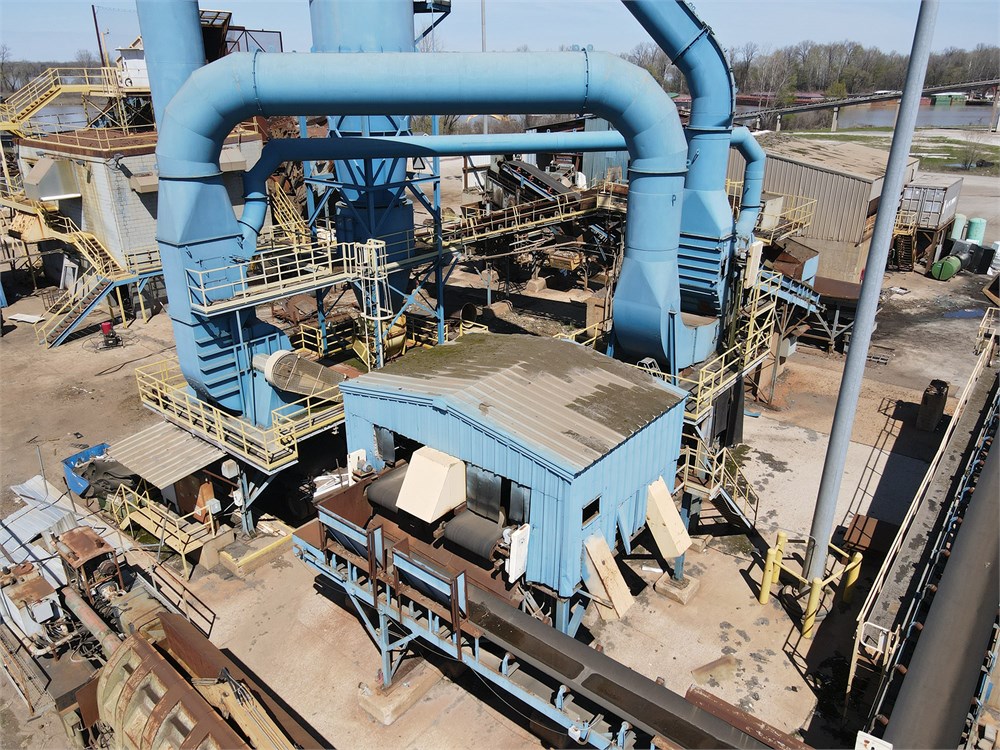

Svedala 98x108 Hammermill Auto Shredder with Ferrous and Nonferrous Downstreams

This purchase includes all major components except for the following:

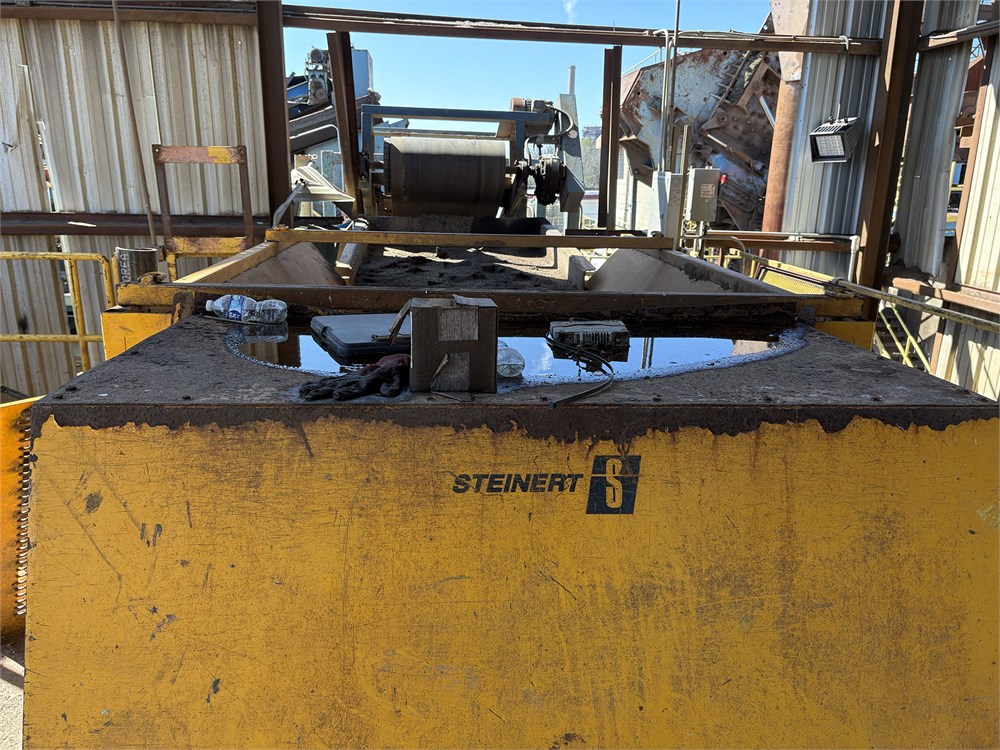

• Two eddy currents from the nonferrous line
• Electric shredder motor, controls, and liquid rheostat

These items were taken out and repurposed at another facility.

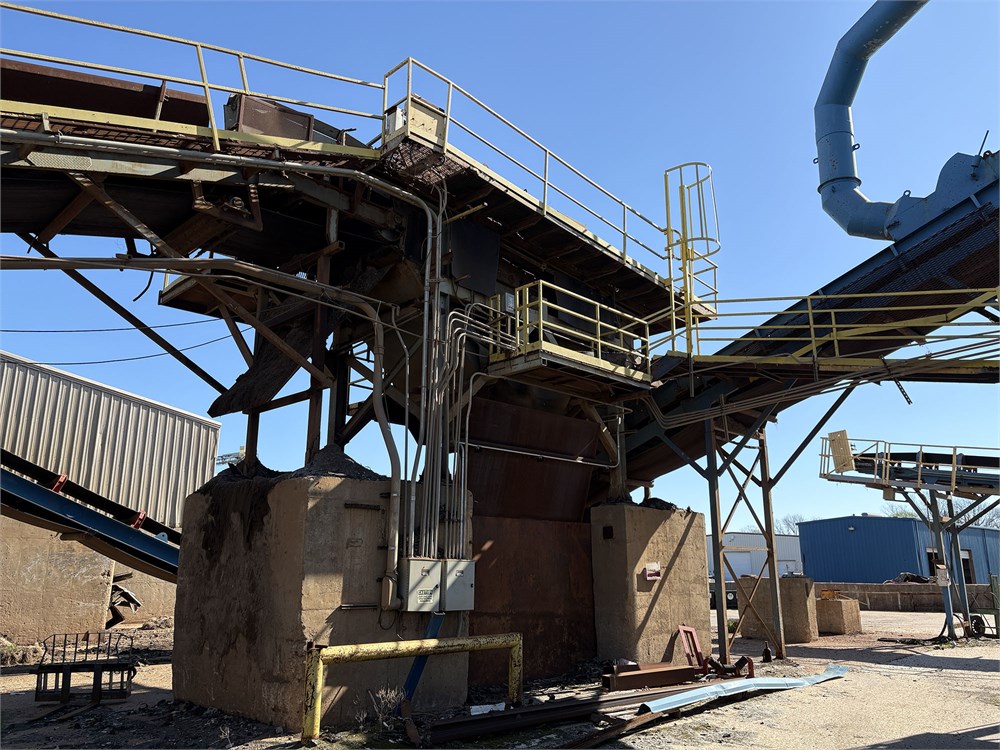

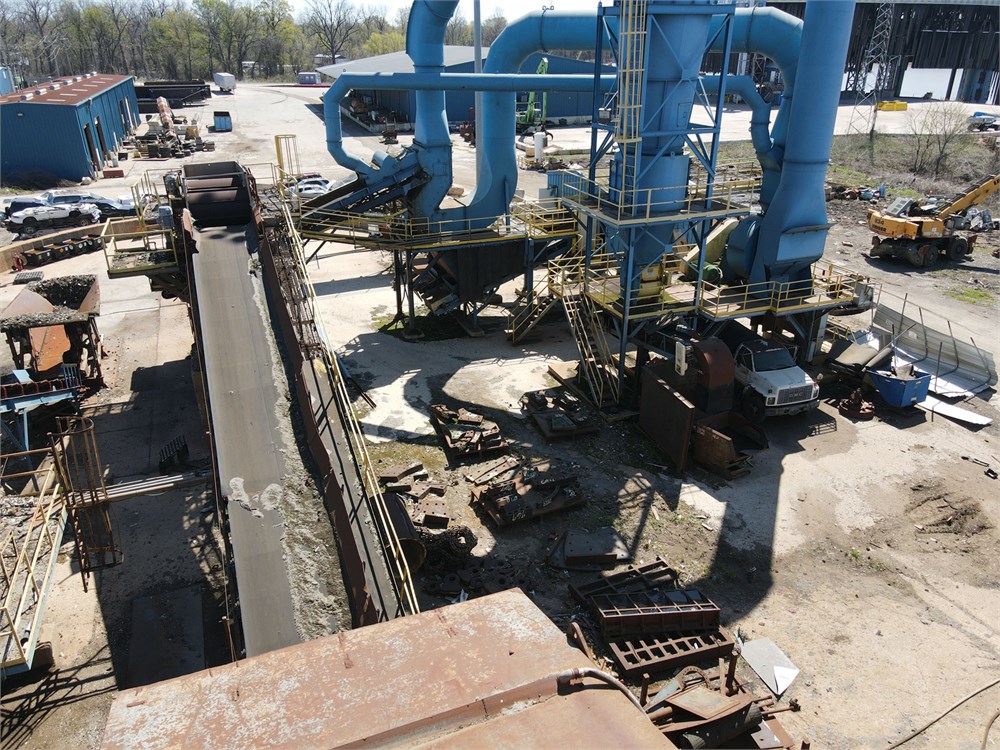

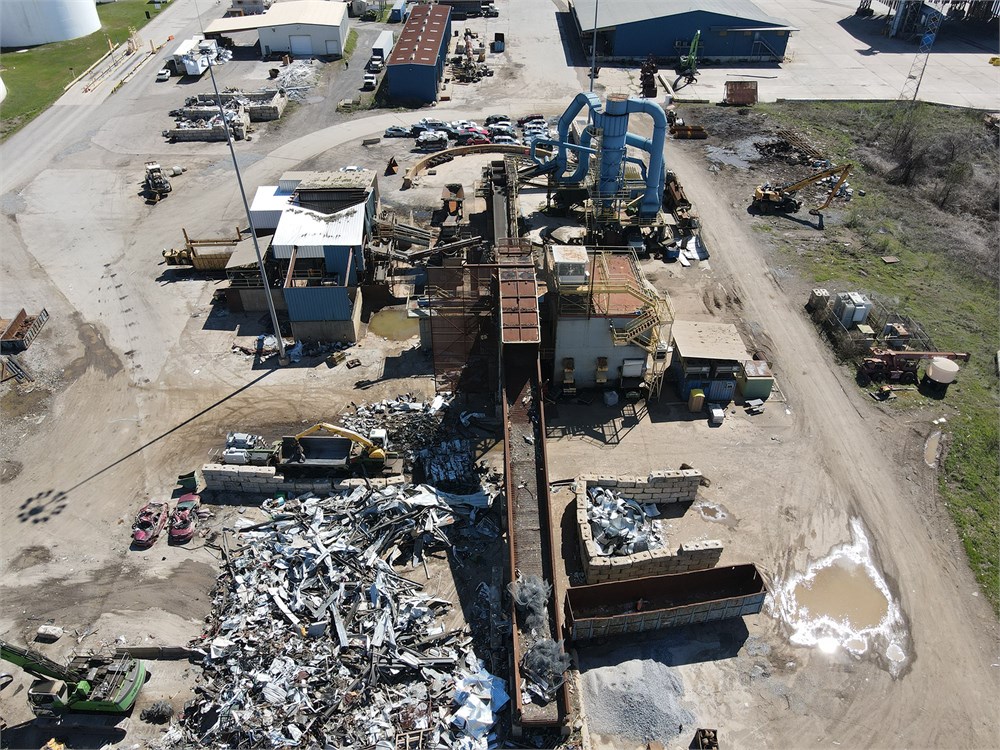

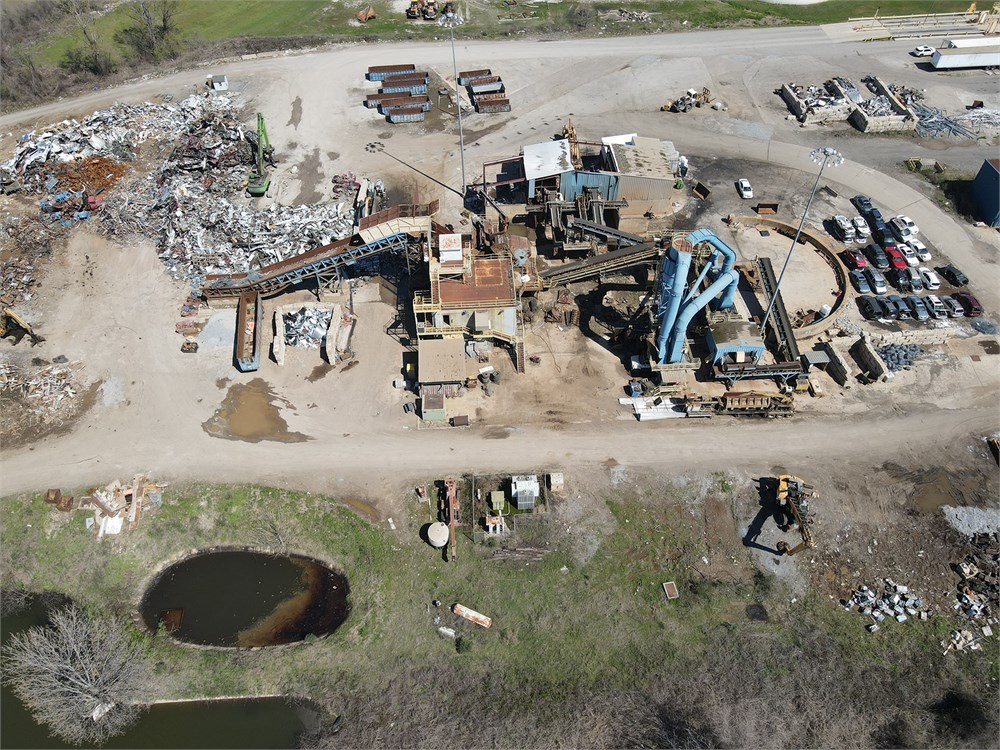

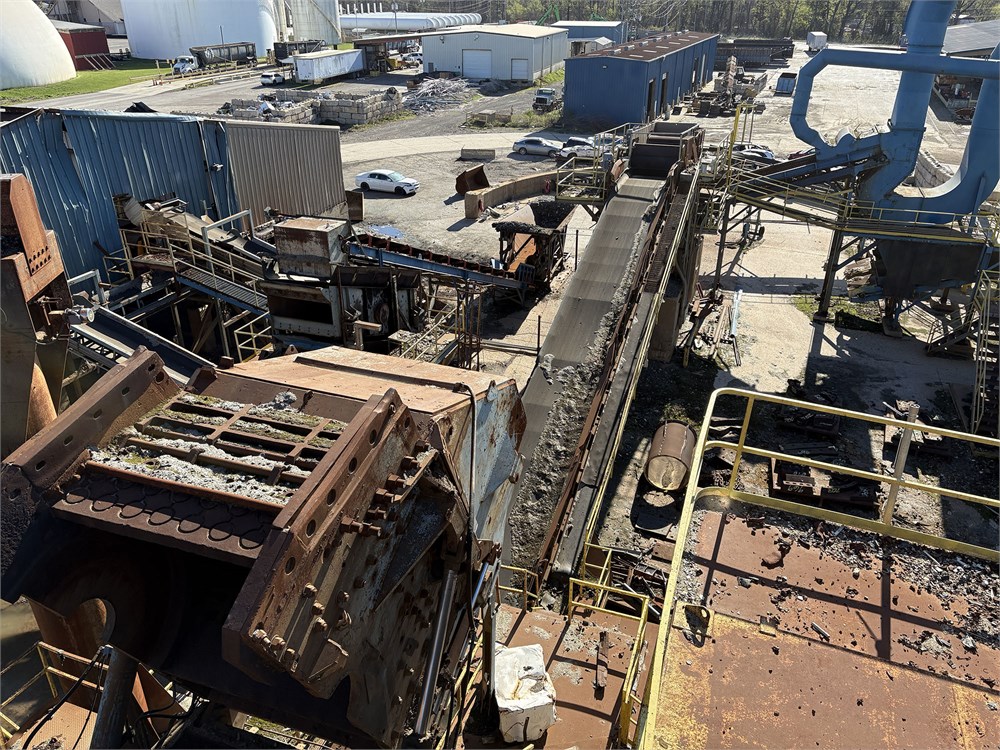

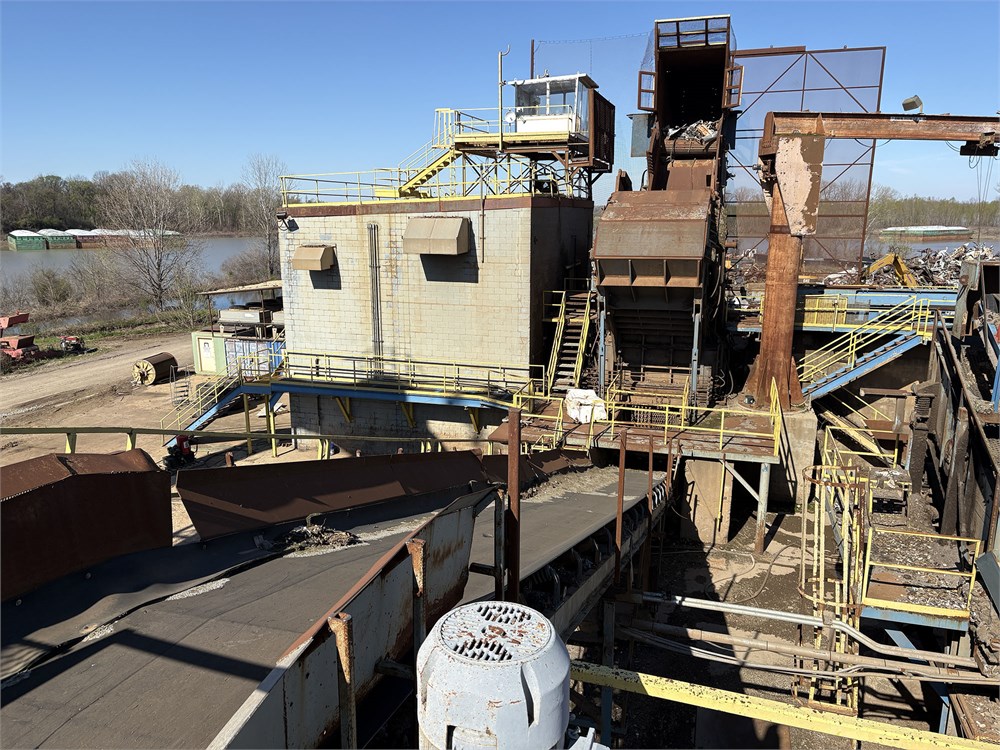

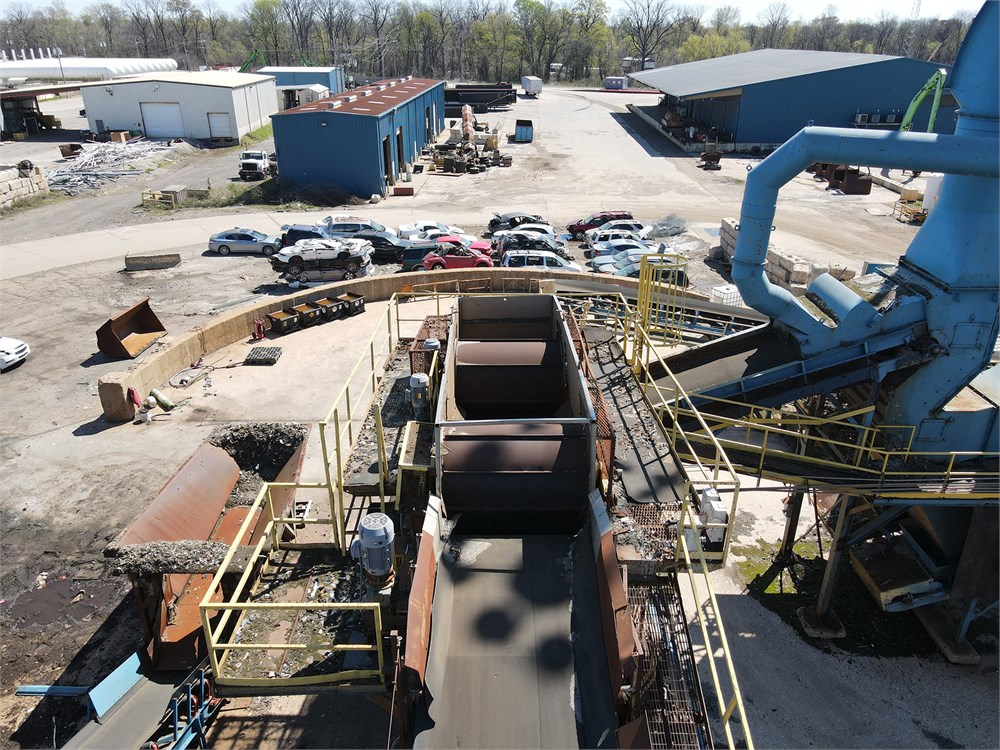

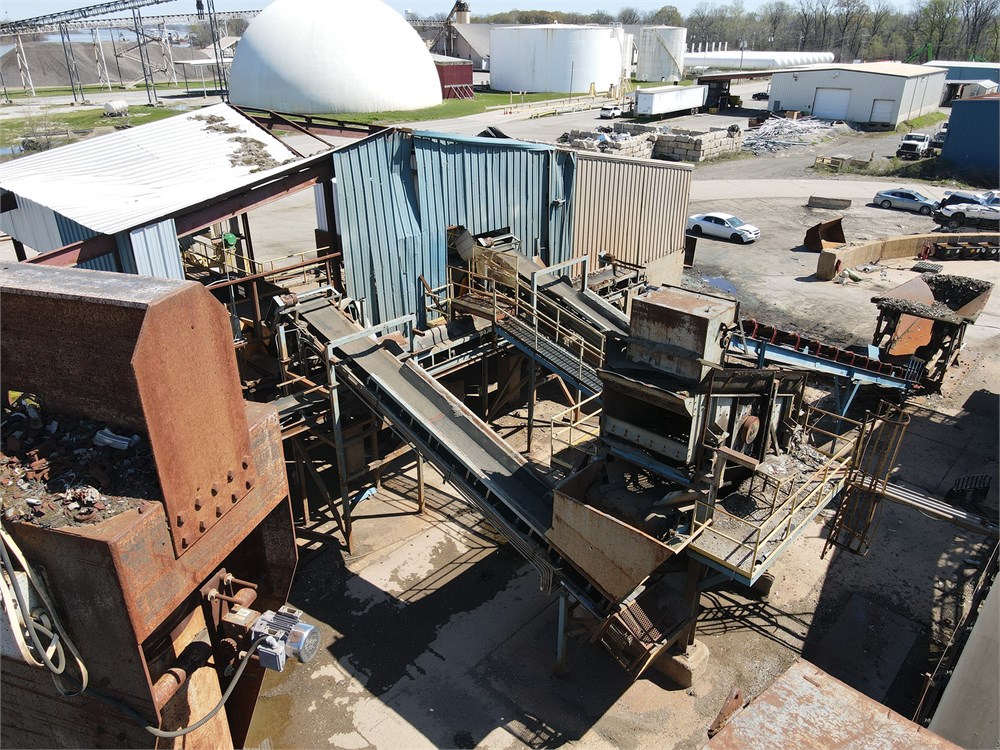

Shredder System:

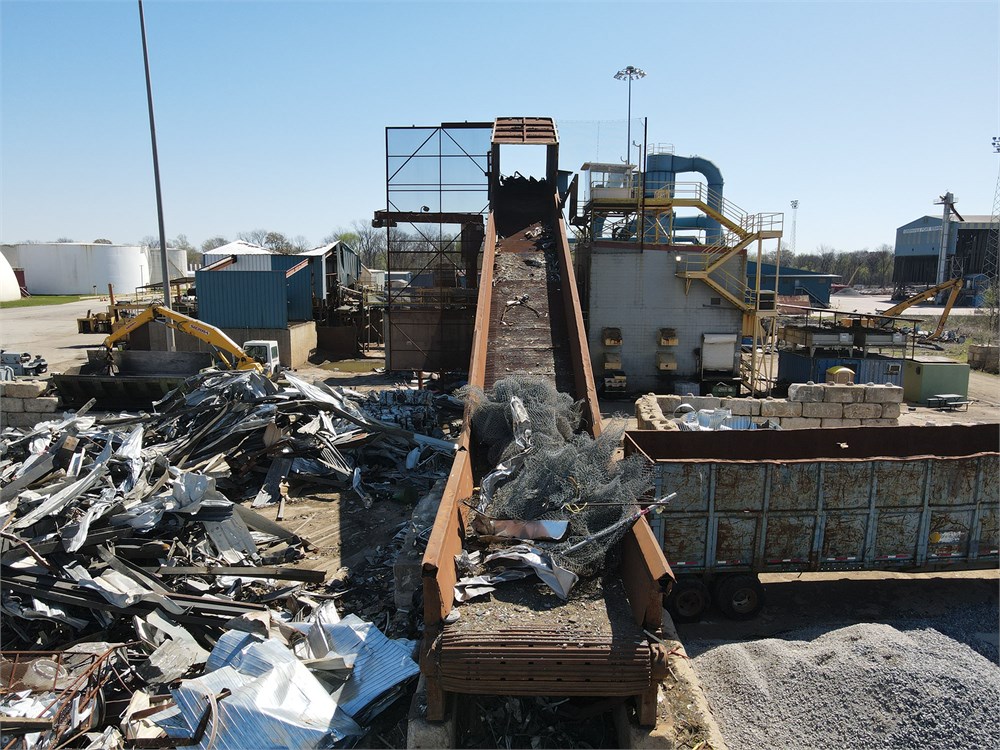

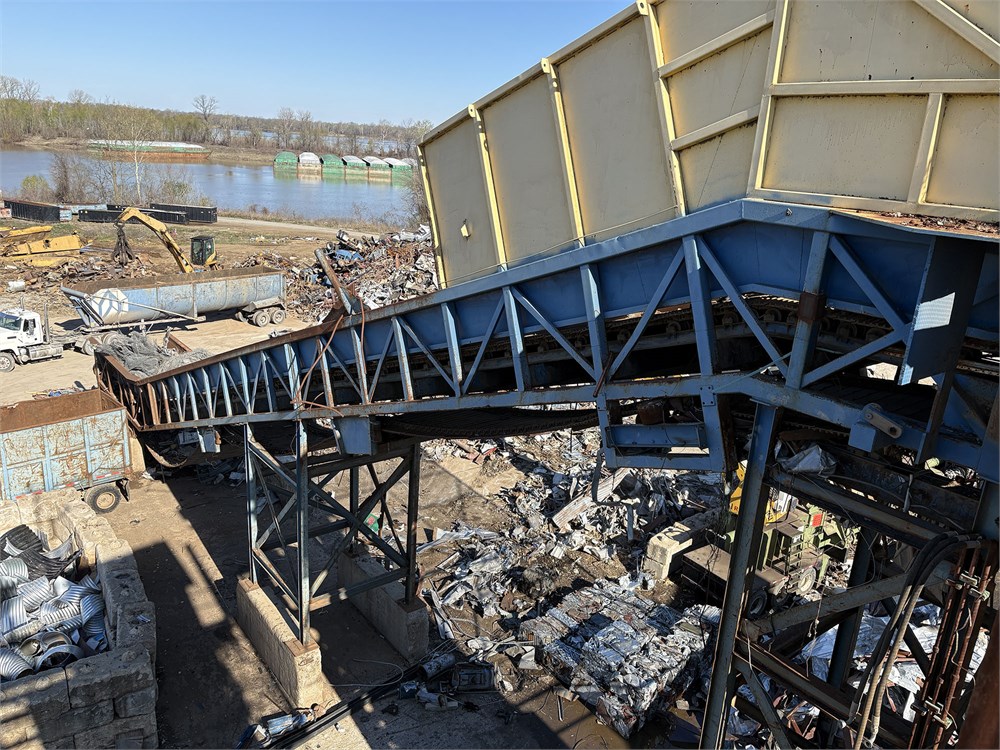

• 96"x115' Infeed conveyor

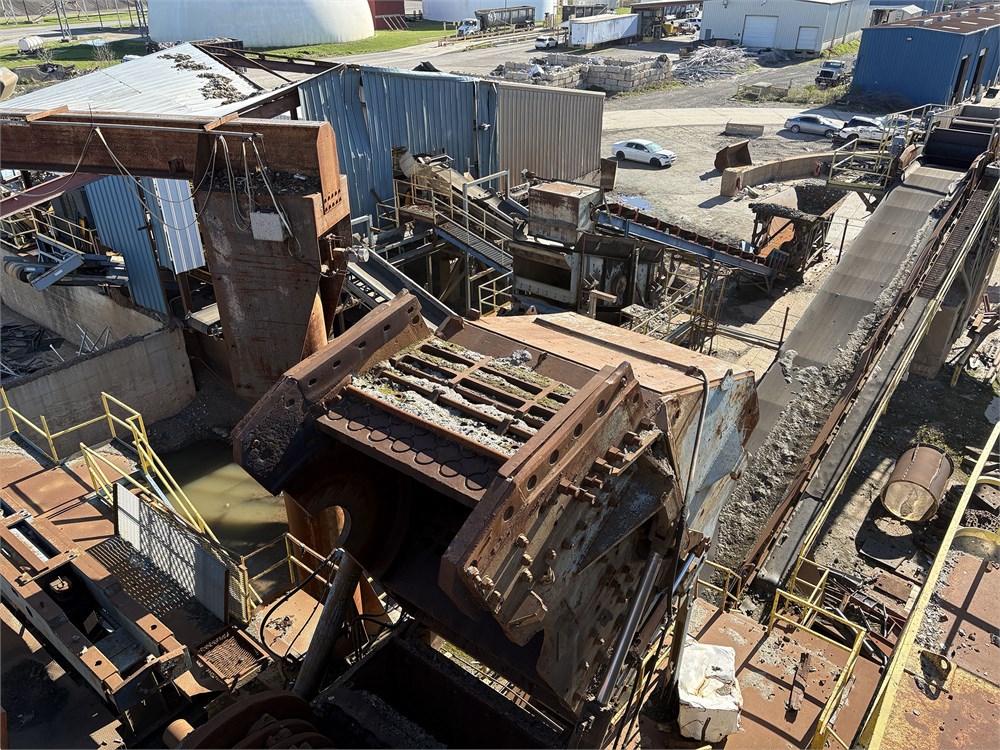

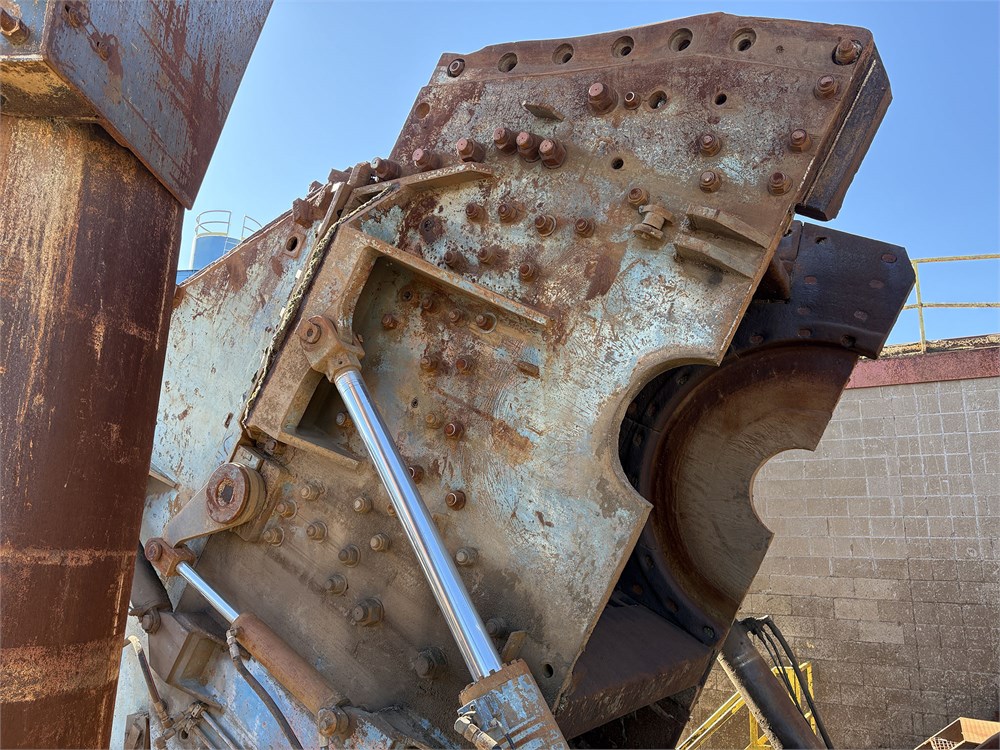

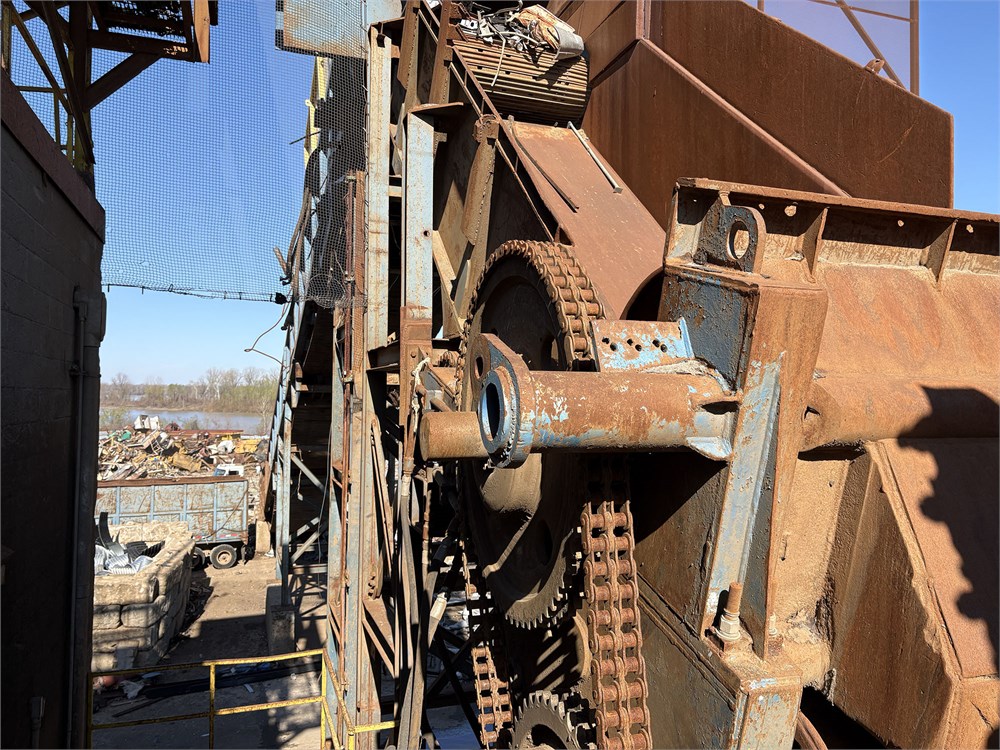

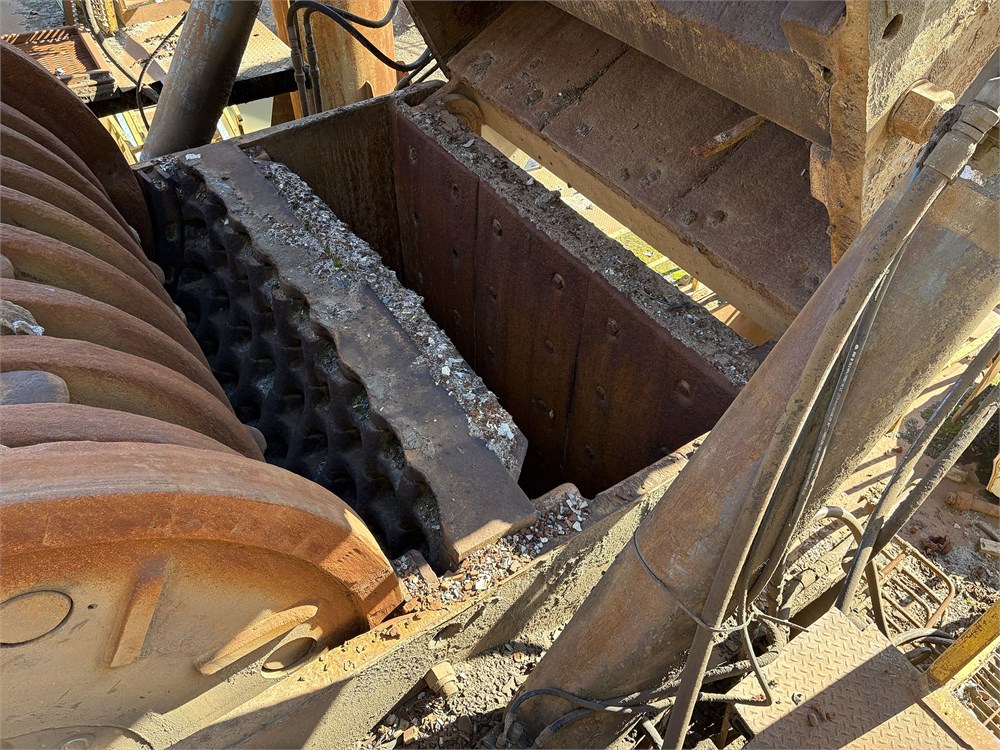

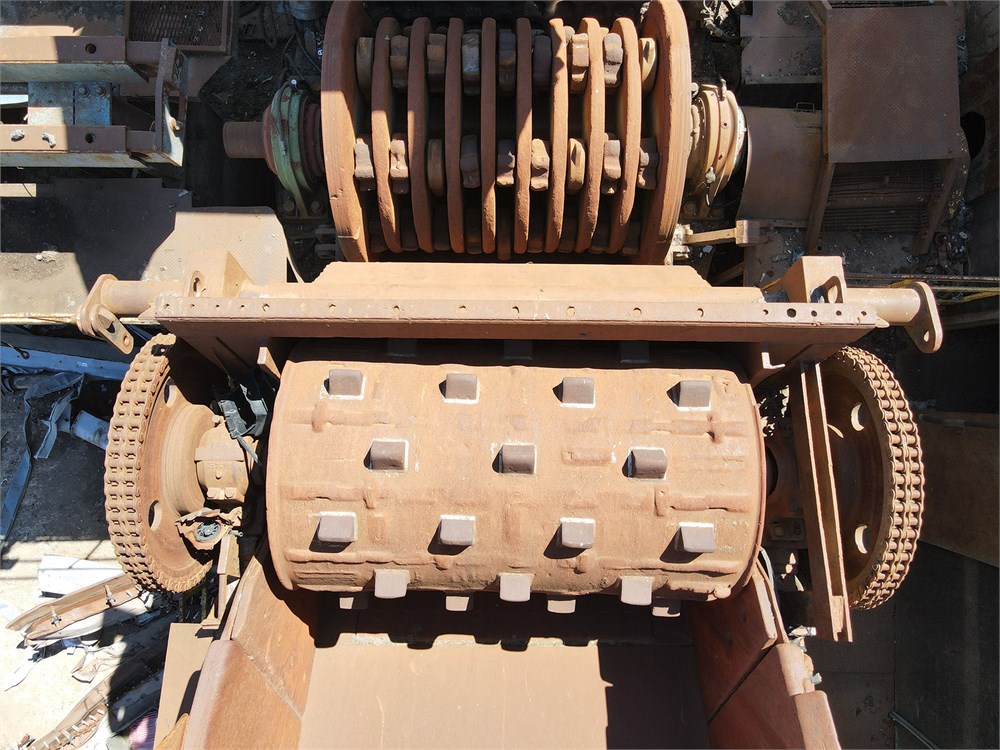

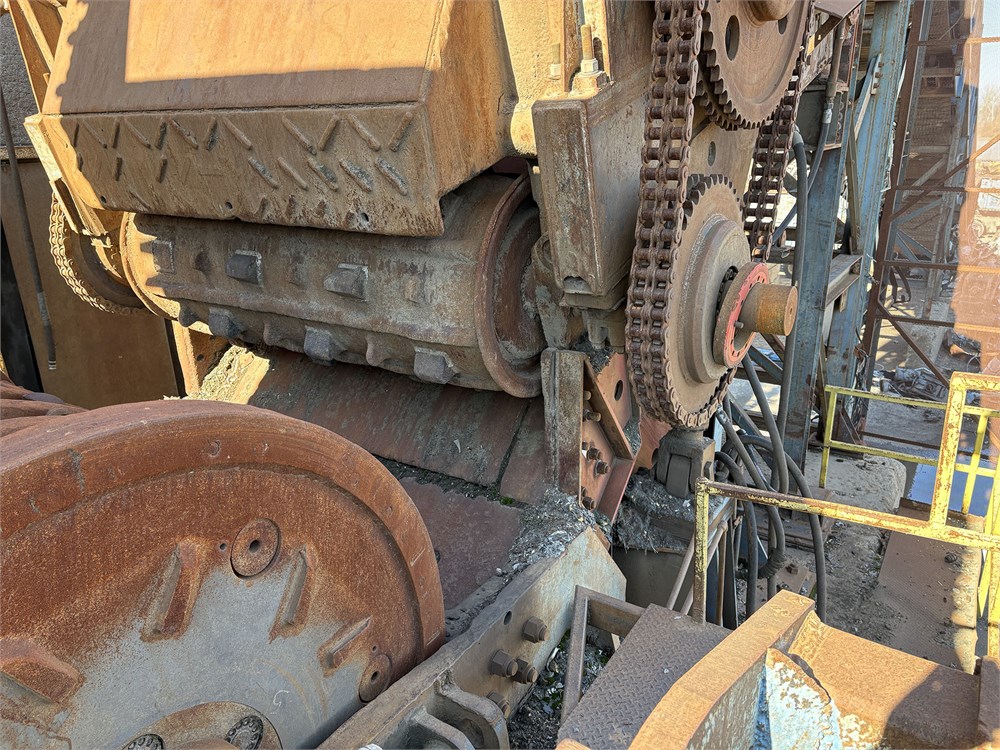

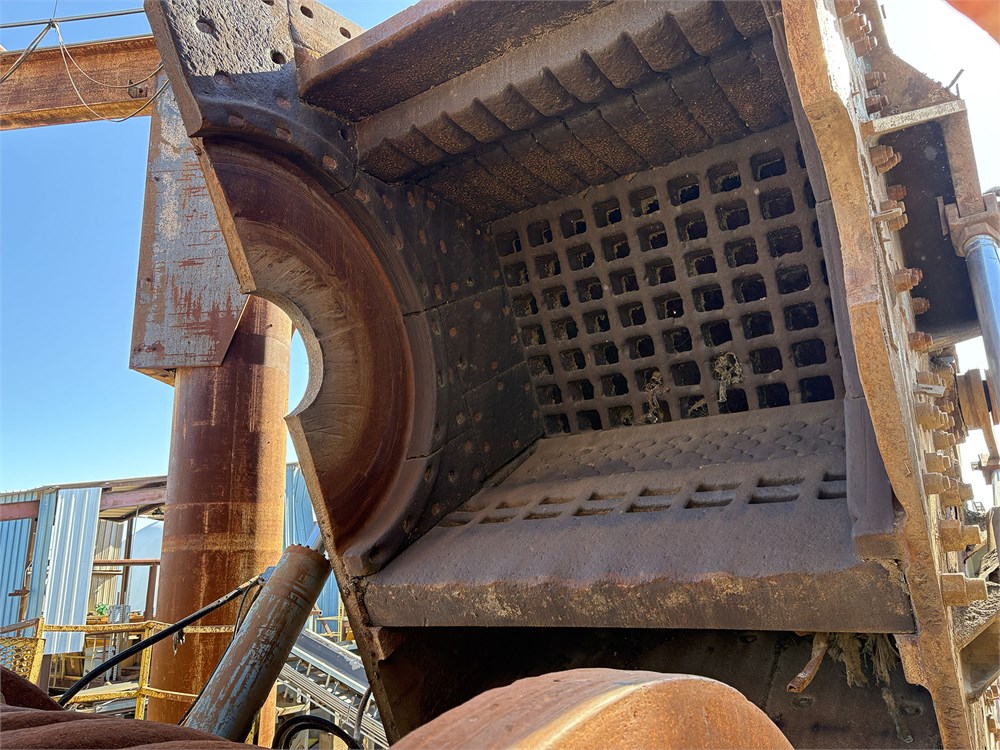

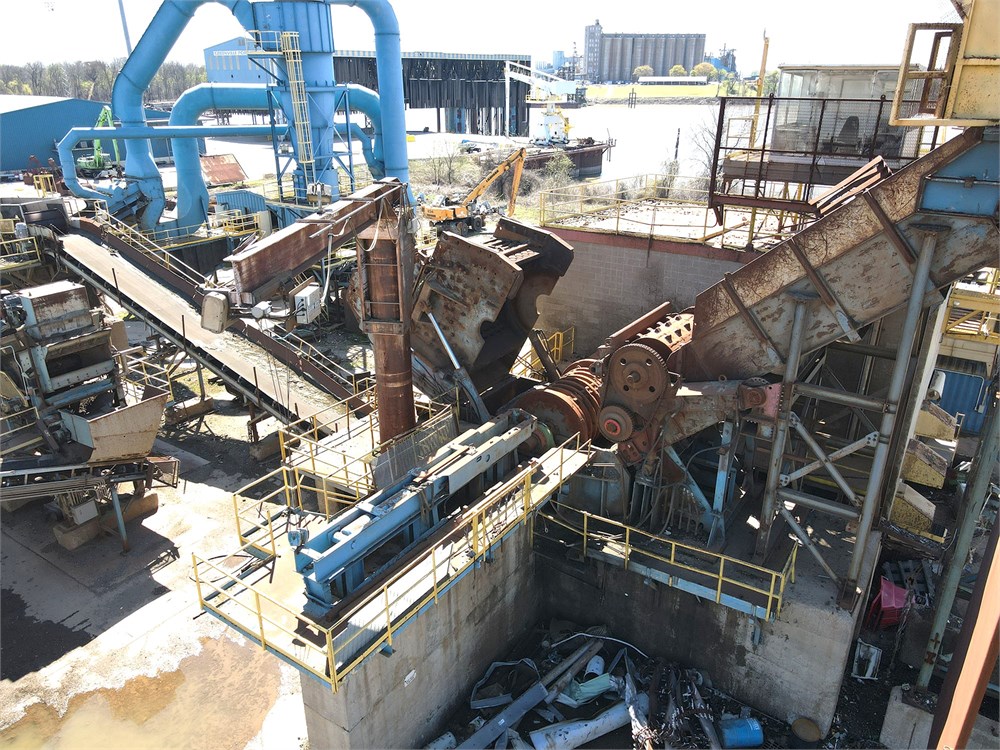

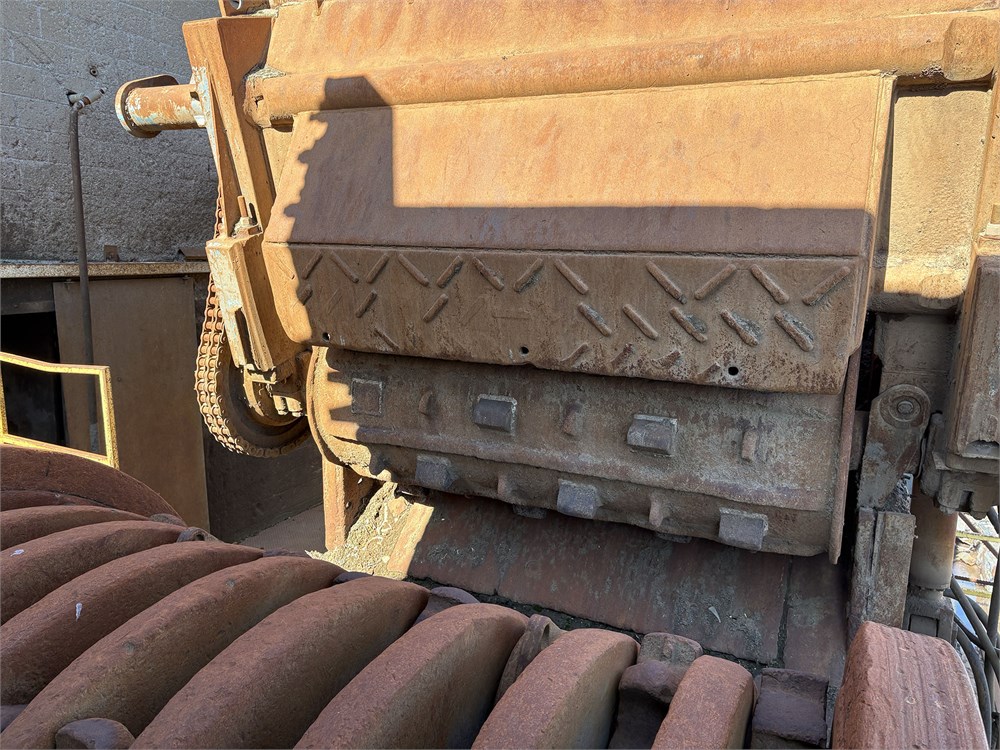

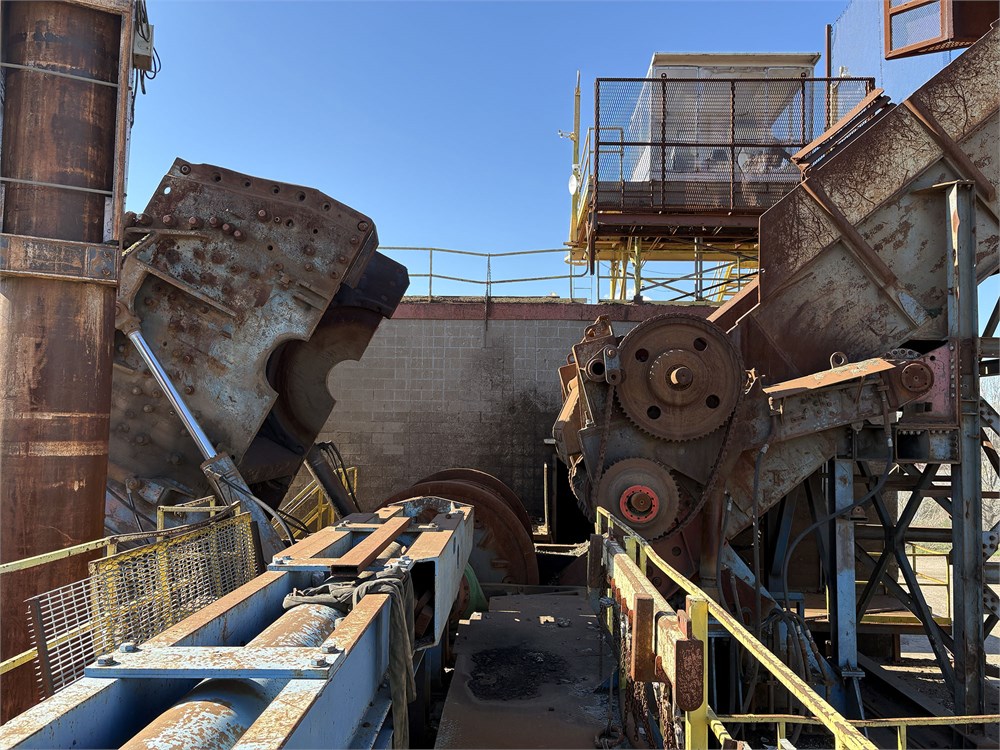

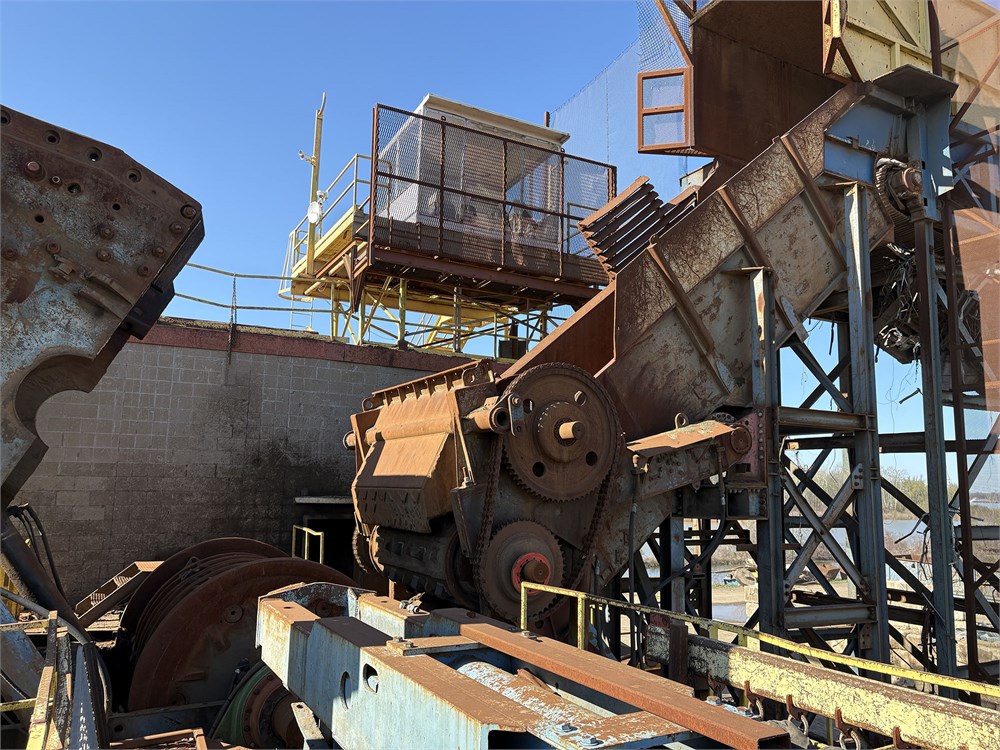

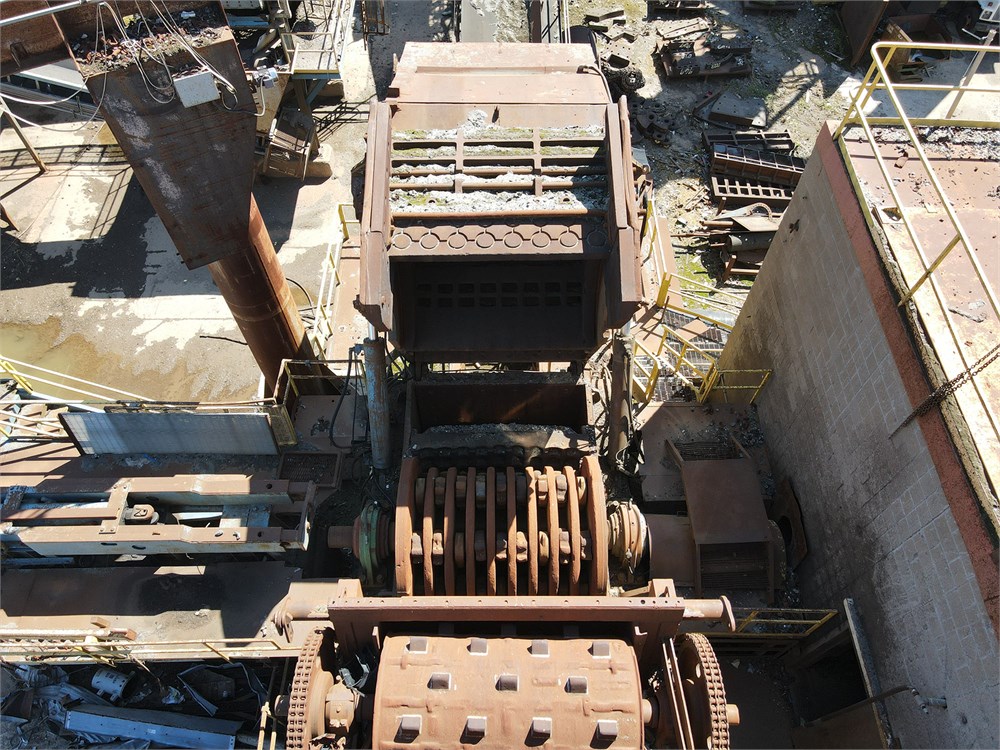

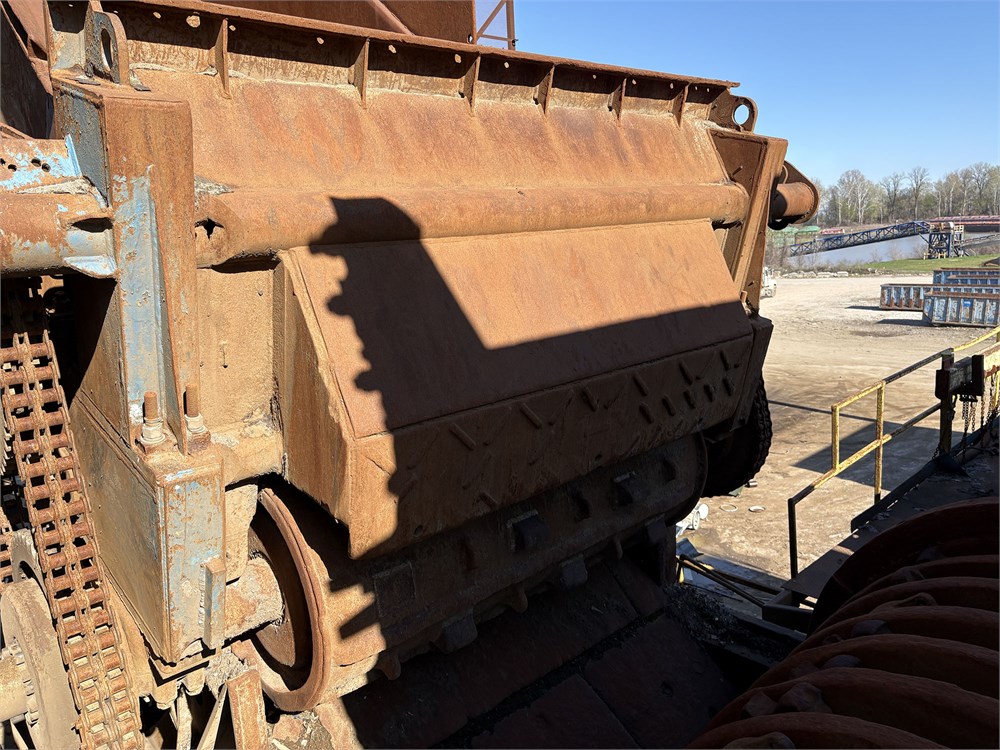

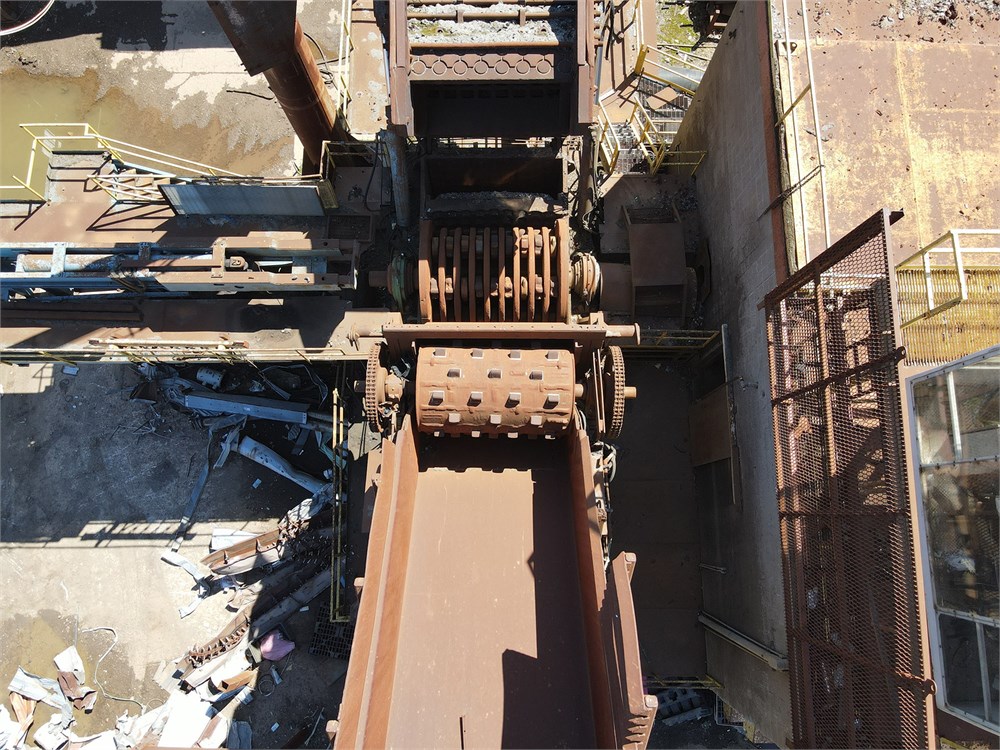

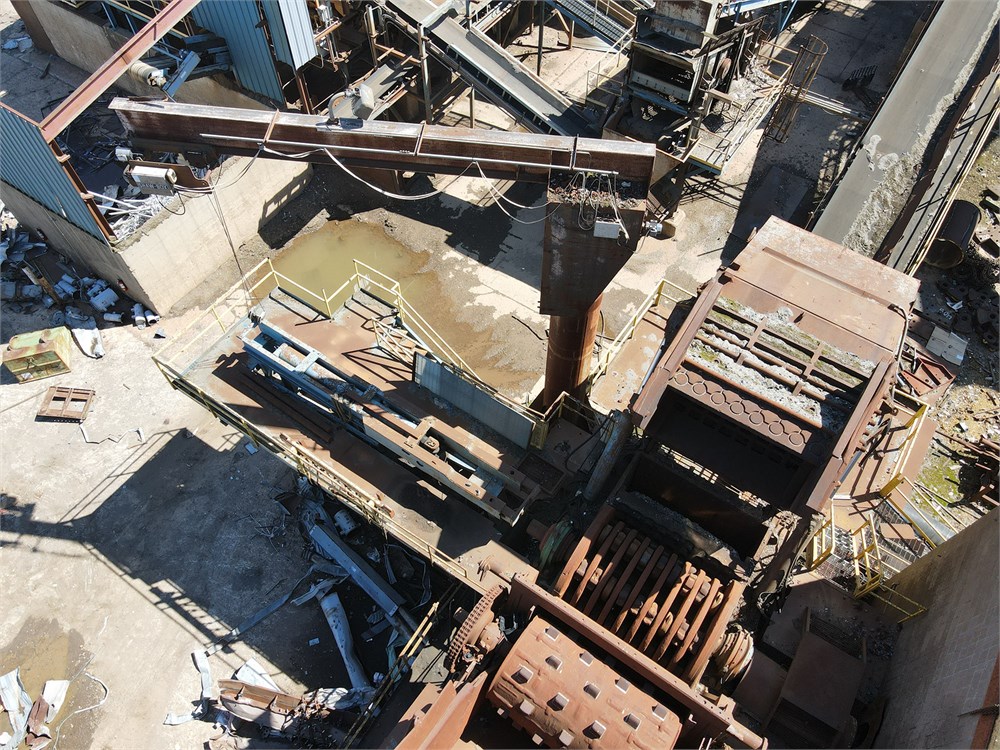

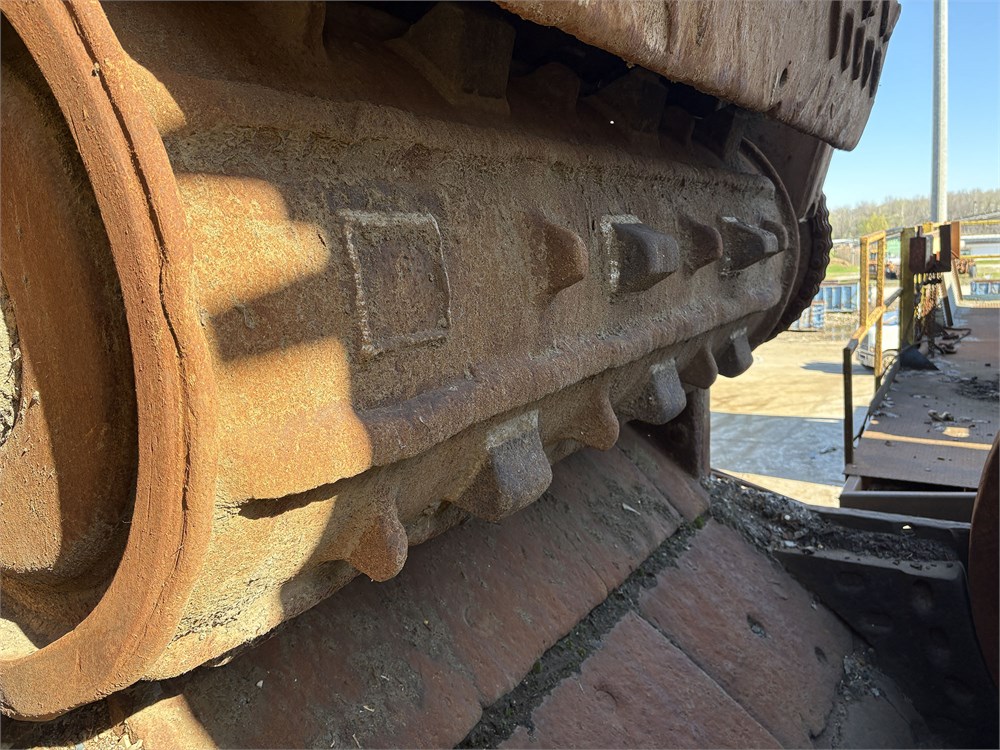

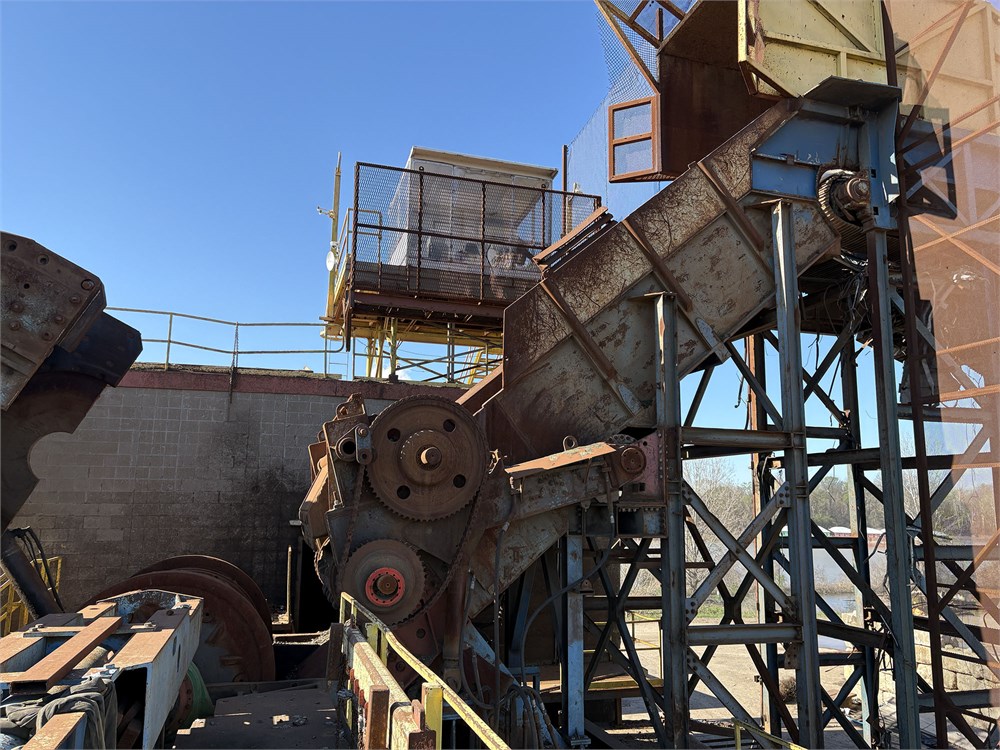

• Svedala 98x108 mill with Feed Chute and Dual Feed Rolls
• Control house with
  • Cylinder, DFR, and Infeed HPUs
  • Bearing luber
• UMO 62" by 20'
• Pin puller and platform
• Takeaway conveyor 60" by 75'

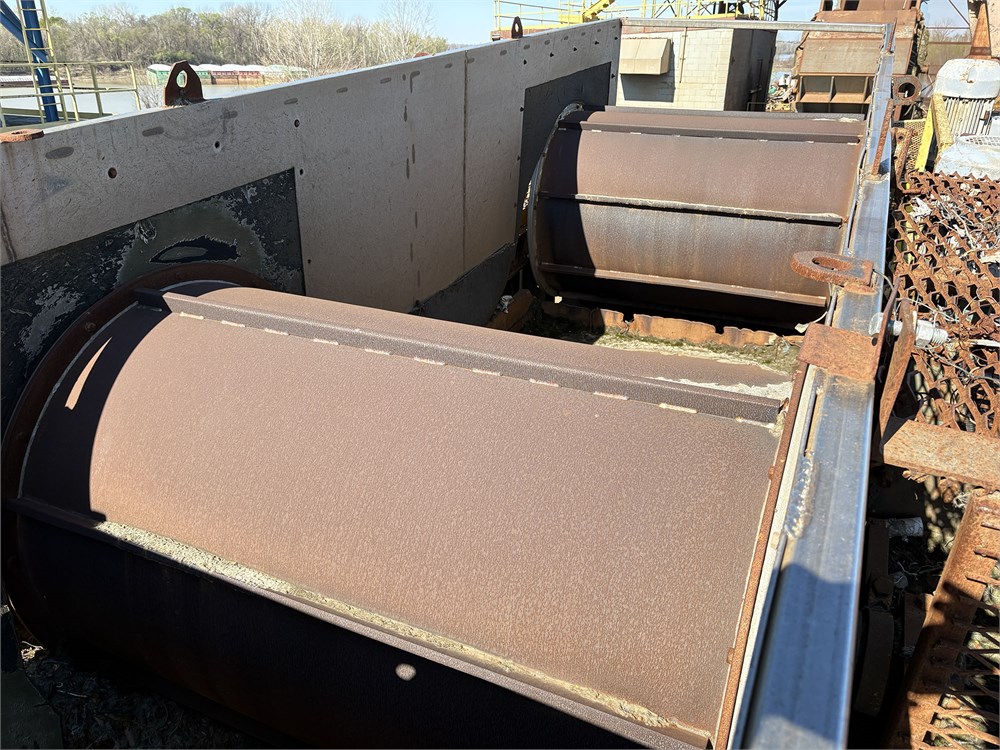

• Dual drum magnets 48" by 72"

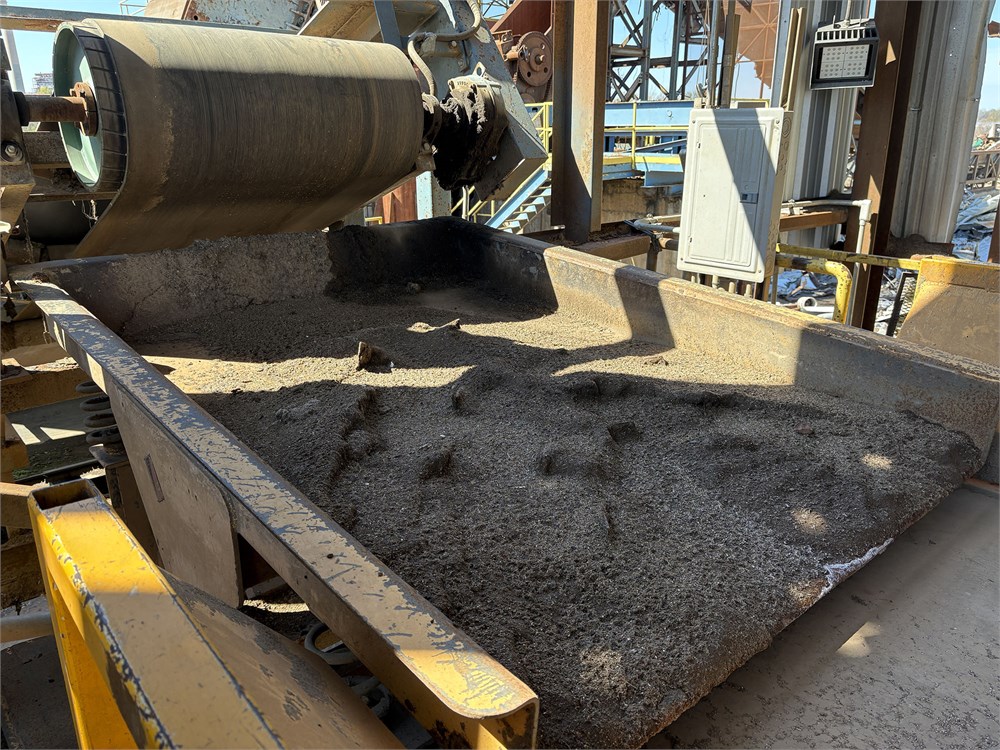

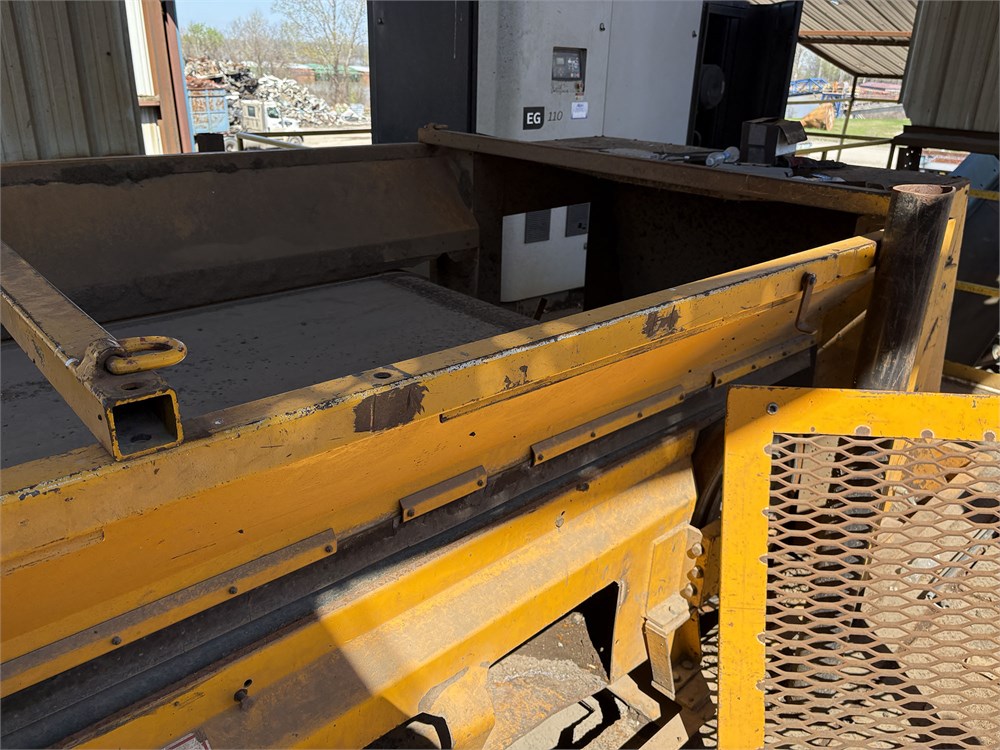

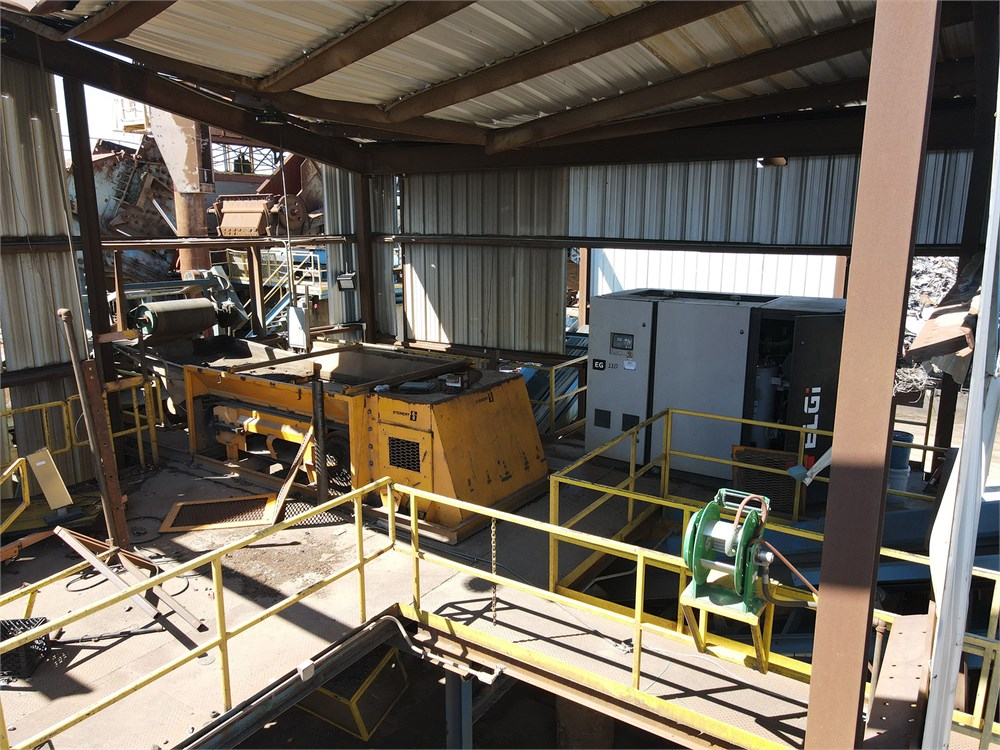

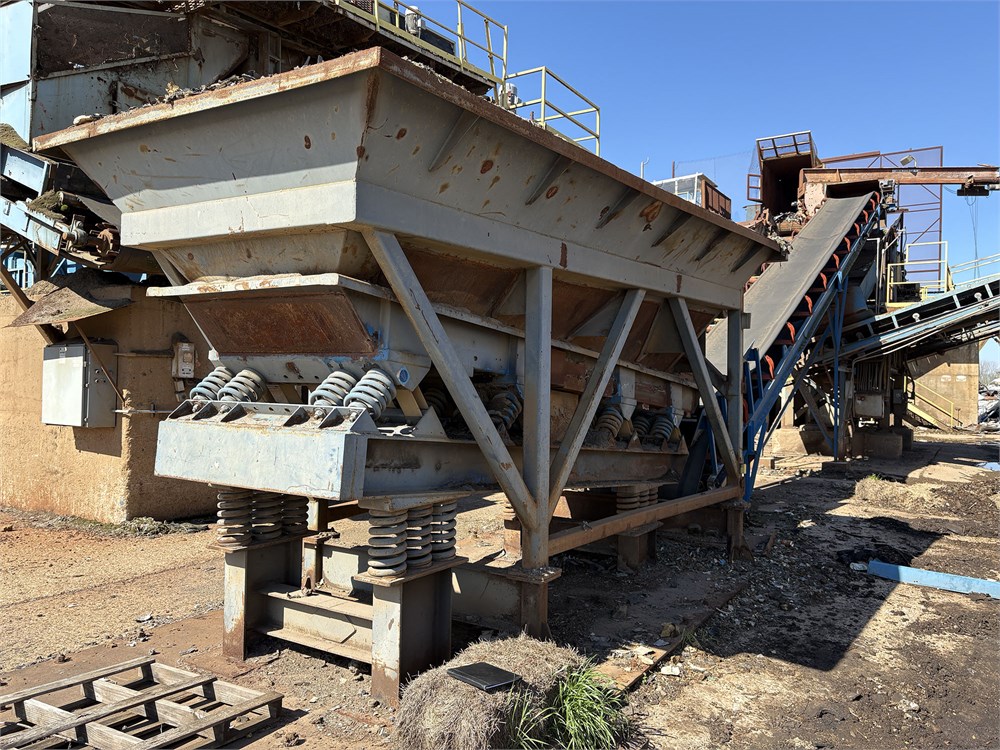

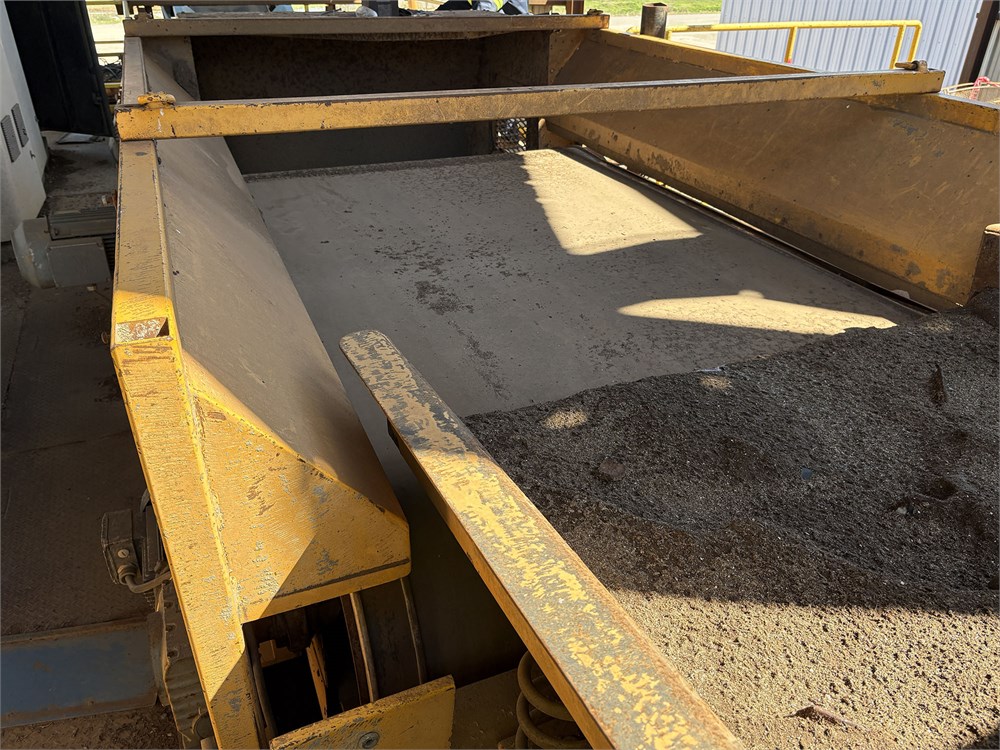

• Vibratory pan feeder 72" by 9'
• Cascade feed conveyor 72" by 49'
• Cascade Cleaning System

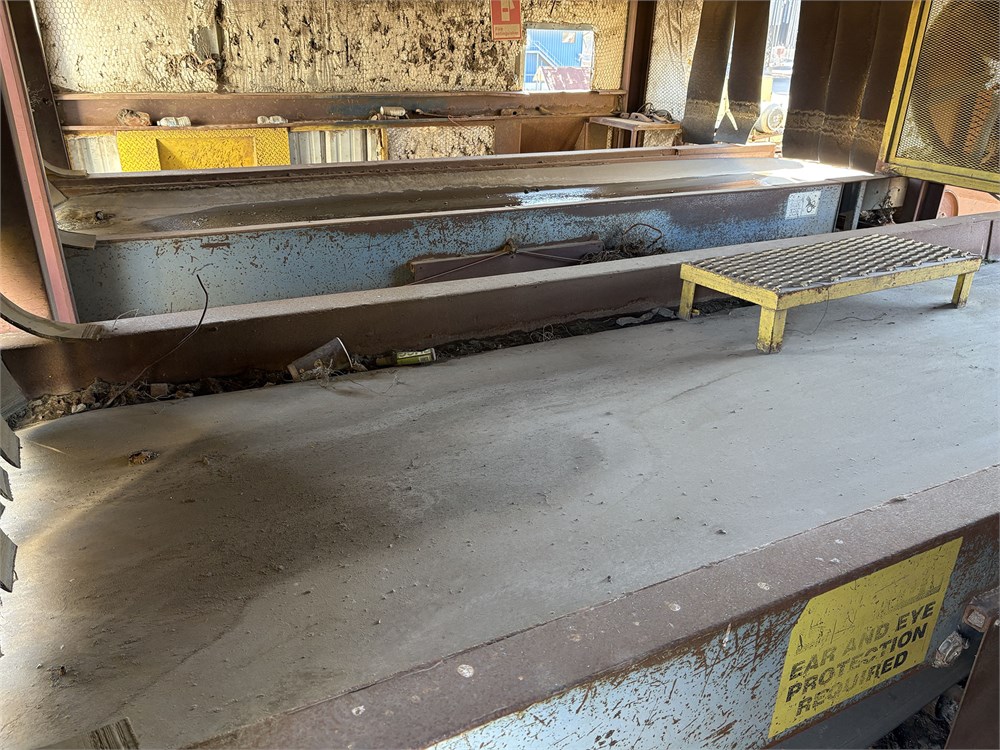

• Picking House with two picking conveyors 48" by 42'
• Shred transfer conveyor 48" by 37' with belt scale
• Shred transfer conveyor 48" by 71'
• Radial stacking conveyor 48" by 80'
• Under magnet conveyor 36" by 38'

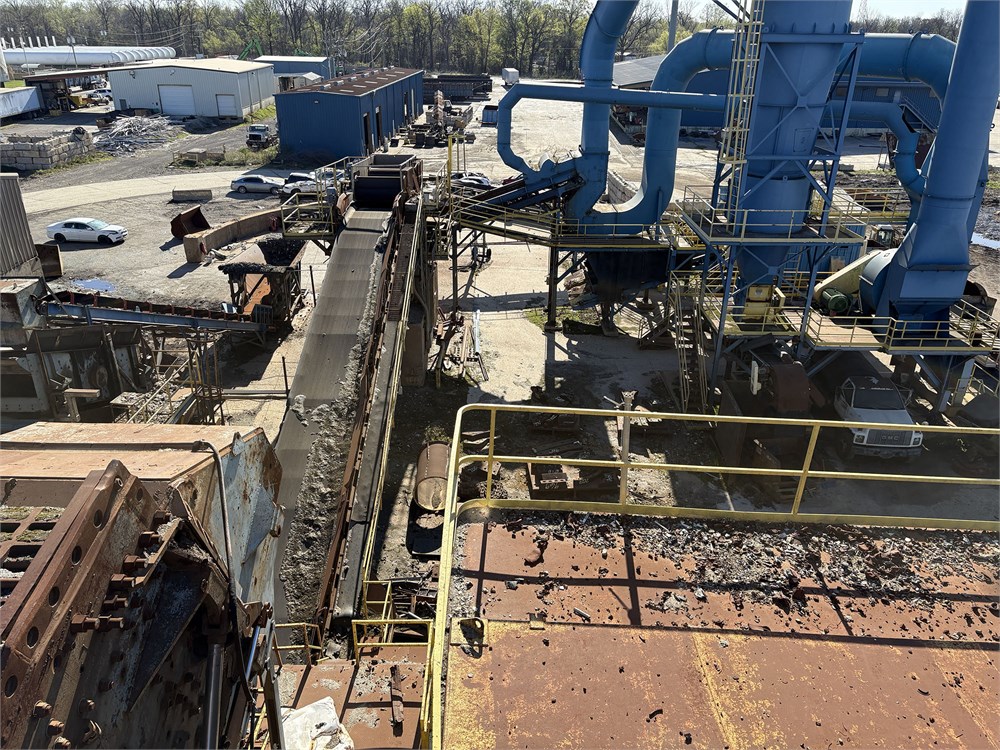

ASR System:

• Drum feeder 48" by 15'
• Screen feed conveyor 48" by 57'

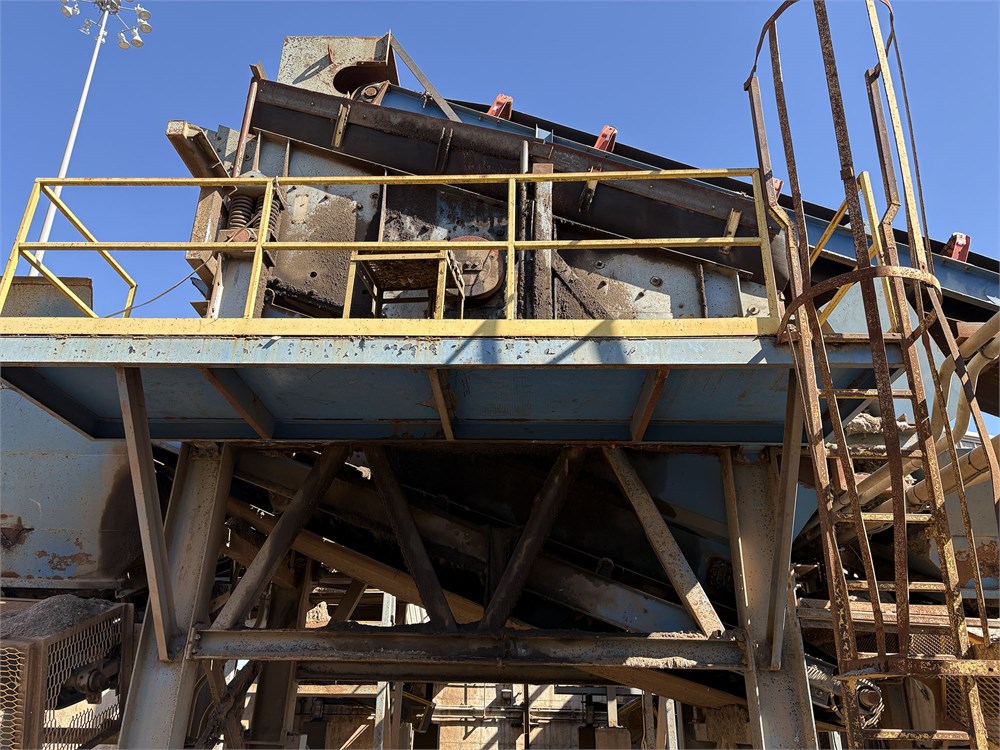

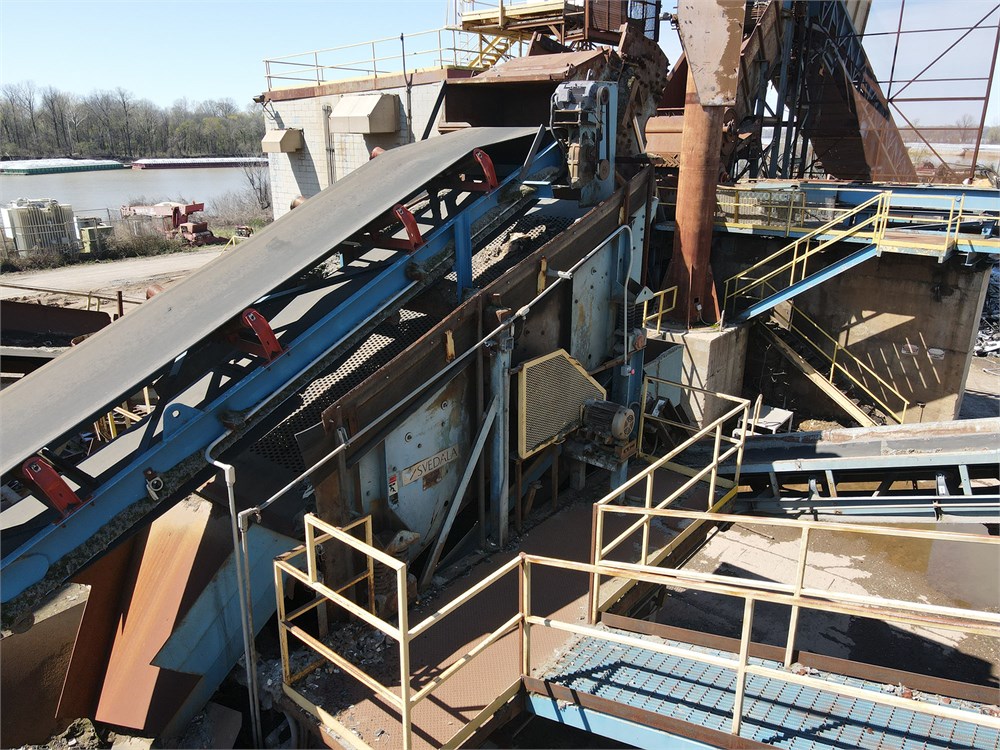

• Screen 72" by 16'
• Under screen conveyor 60" by 18'
• Small eddy current feed conveyor 36" by 36.5'
• Large eddy current feed conveyor 36" by 36.5'

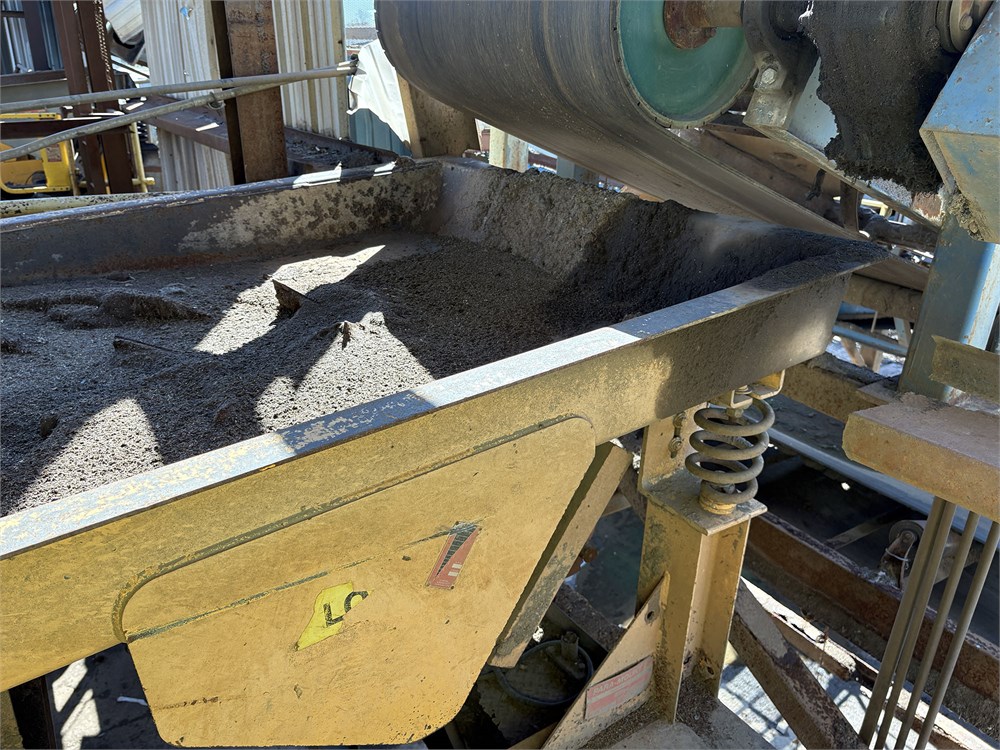

• Small eddy current vibratory feeder 36" by 8"
• Large eddy current vibratory feeder 36" by 8"
• Two cross belt magnets 24" by 5'

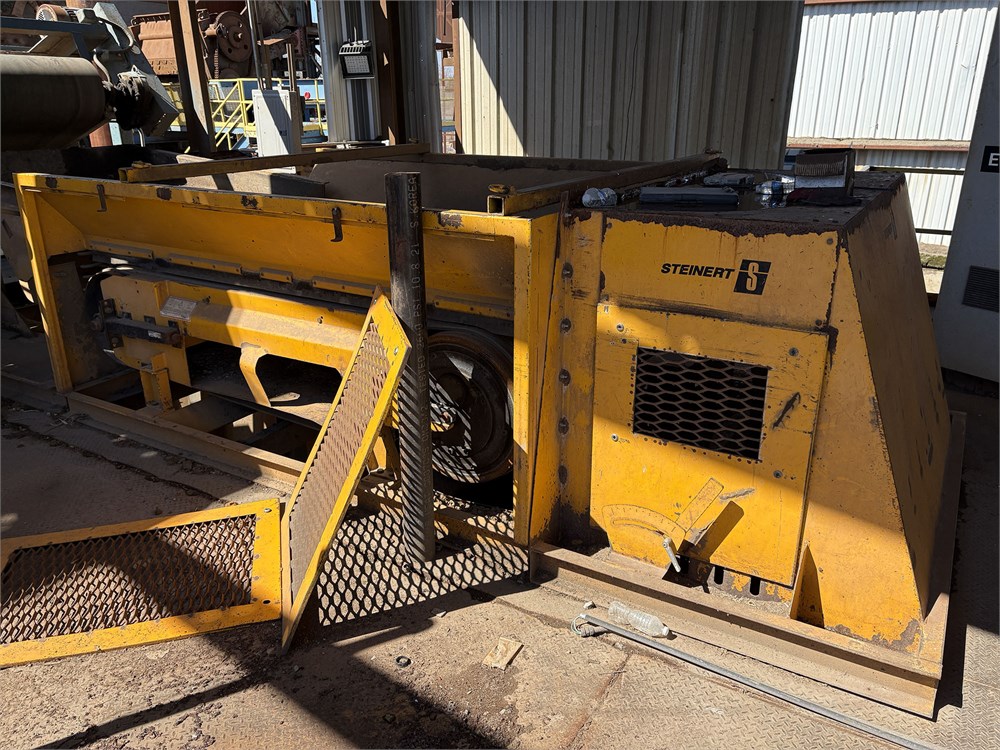

• Small eddy current conveyor 36" by 7'
• Large eddy current conveyor 36" by 7'
• OBM conveyor 36" by 39.5'
• Small waste conveyor 36" by 25.5'
• Small zorba conveyor 36" by 25.5'
• Large zorba conveyor 36" by 25.5'
• Large waste conveyor 36" by 25.5'

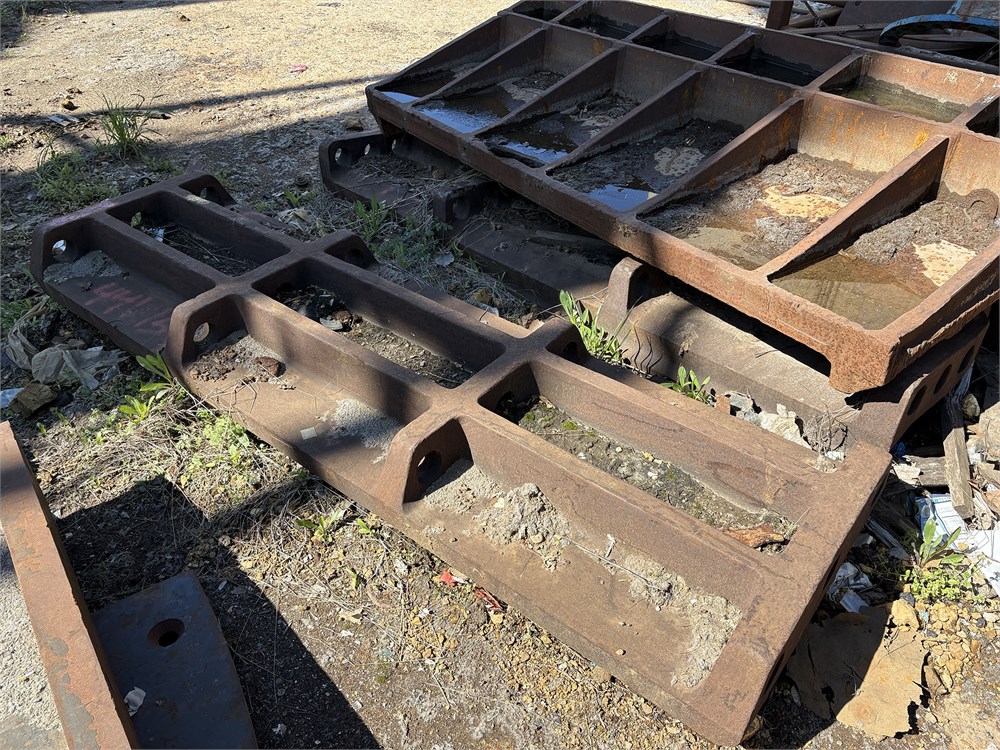

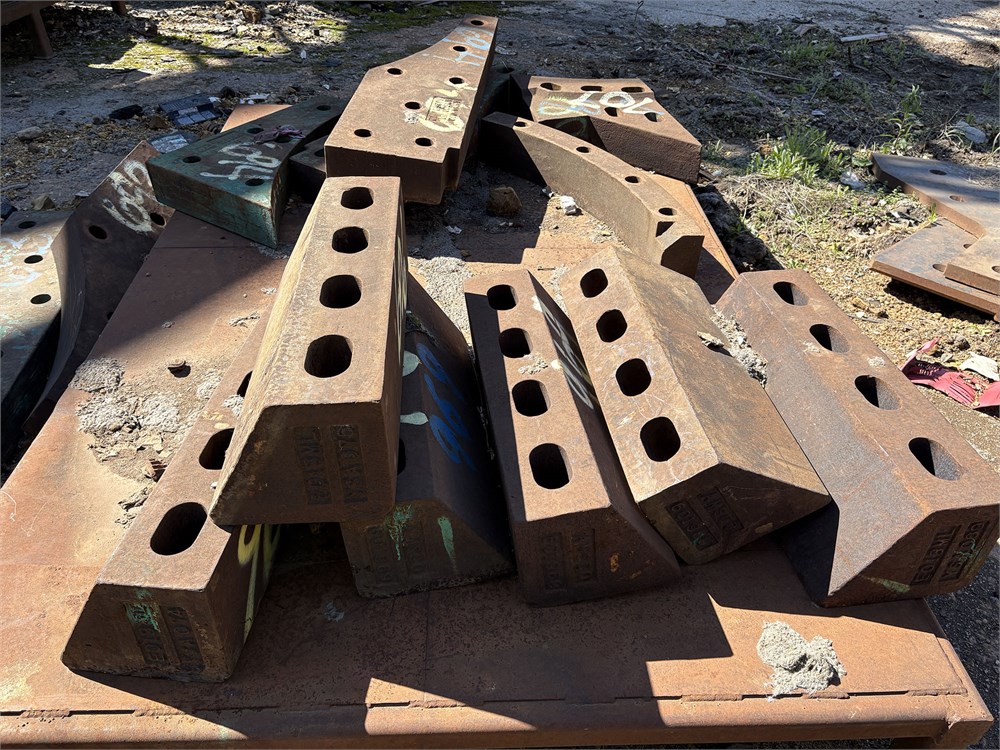

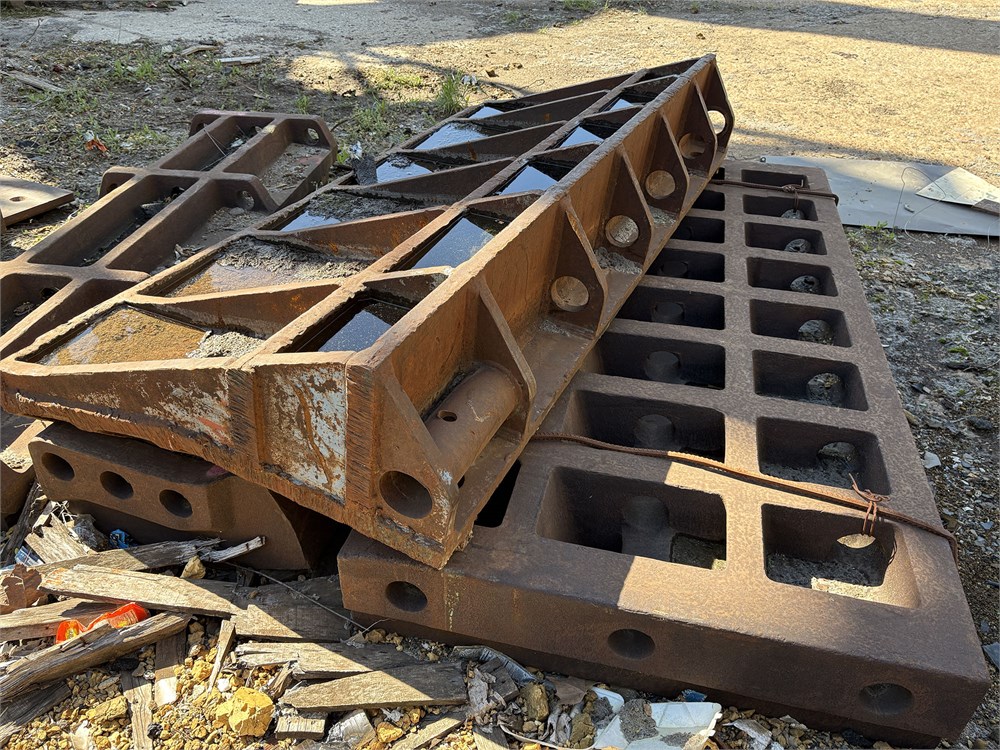

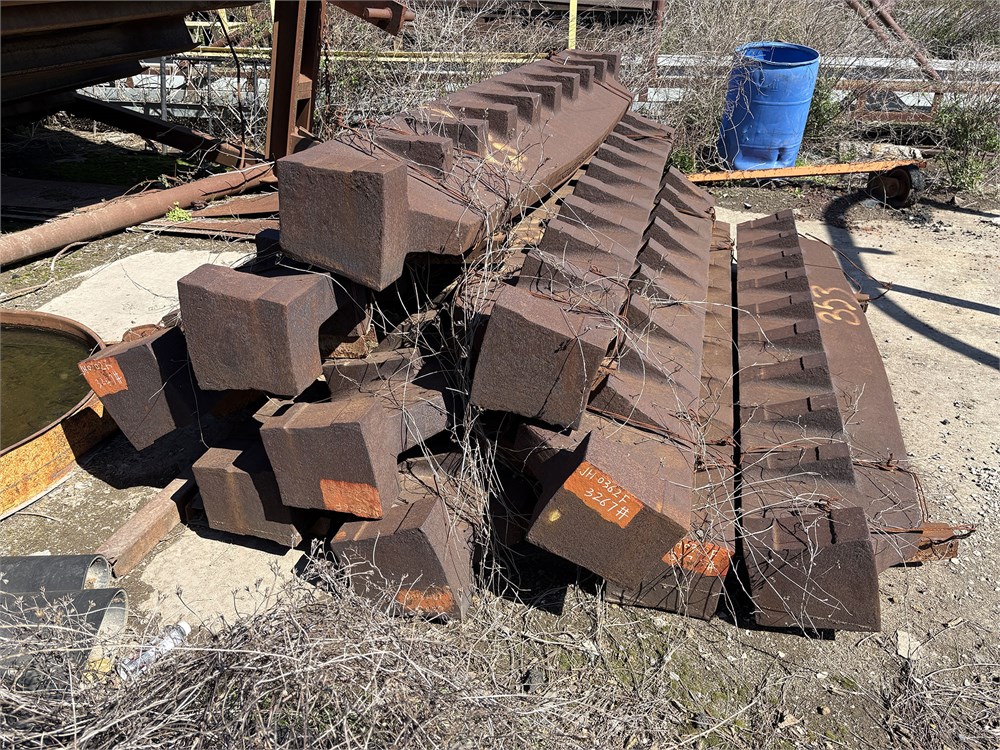

Spare Parts:
ANVIL-SET x ?? -601969    AMSCO    2
BAR-TIE ROD-ROTOR-9531    3" D x 125 1/2"-CLIFTON STEEL    2
CAP-END DISC-20° SEG-601441    AMSCO    28

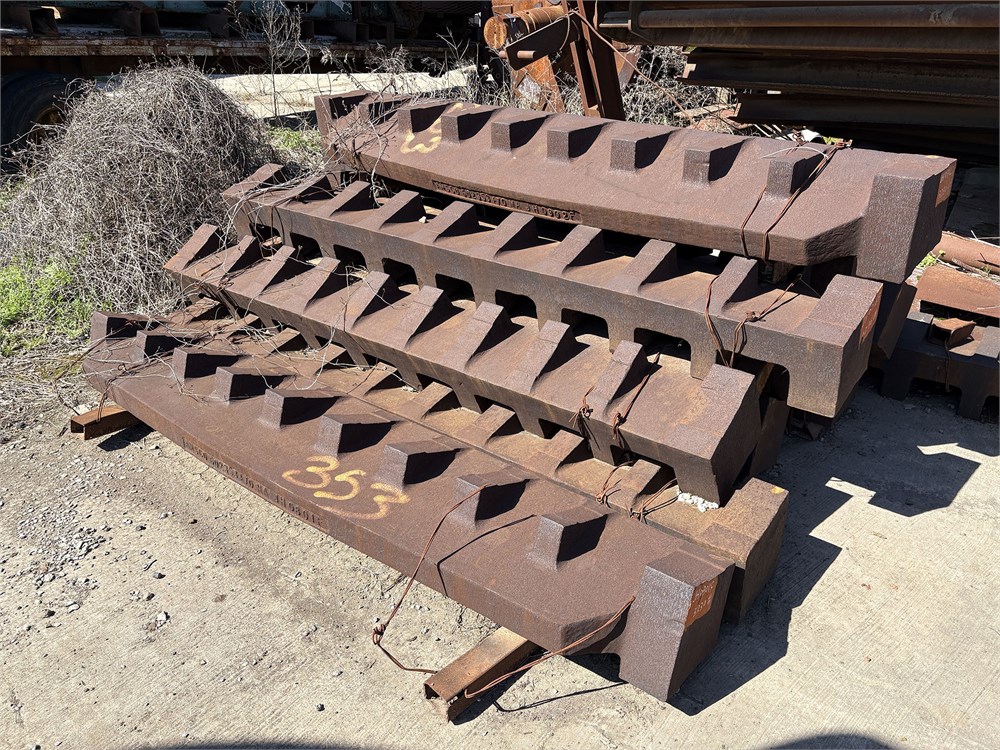

GRATE-ANVIL BACKUP-601606    AMSCO    1
GRATE/BAR-FILTER-602363    AMSCO    4

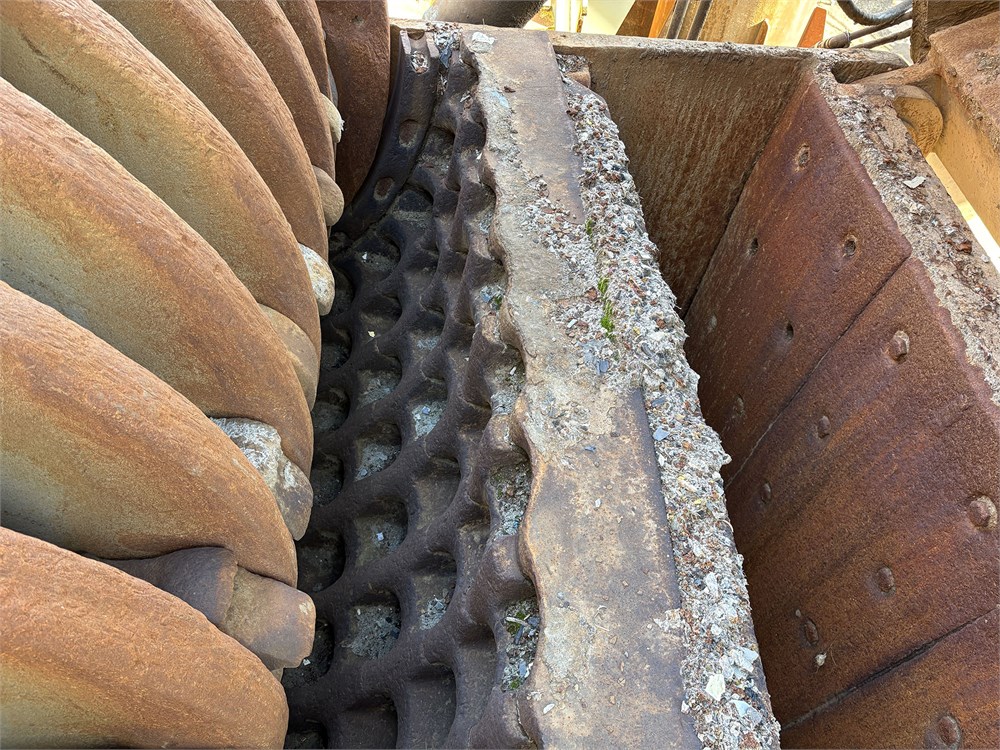

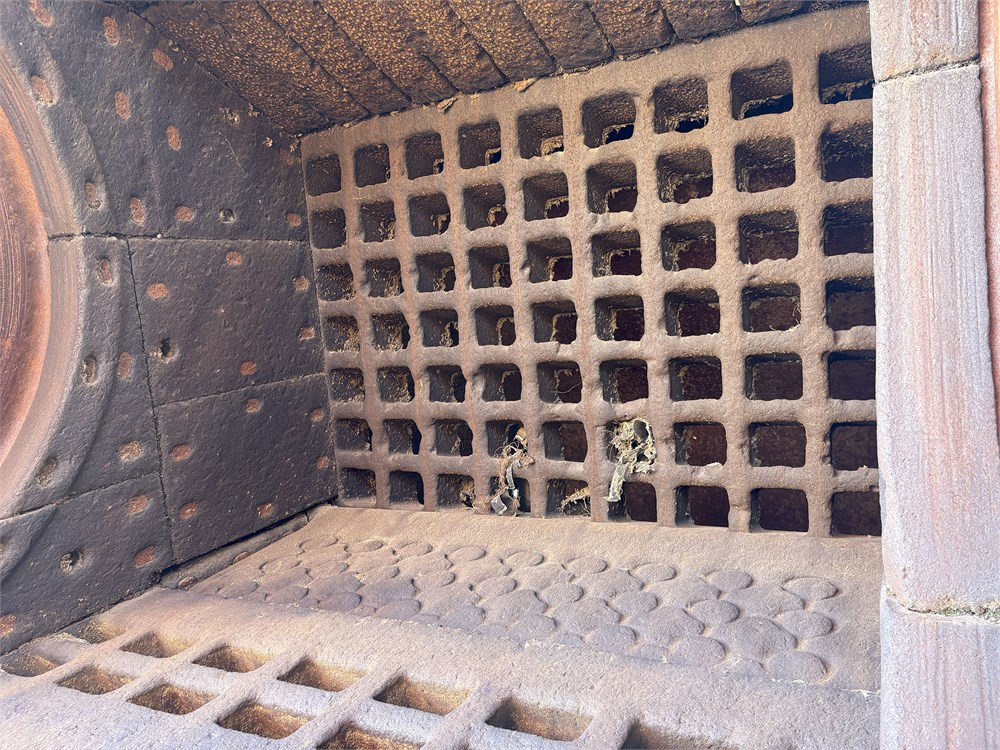

GRATE-OPEN-5" x 7"-602353    AMSCO    10
GRATE-RAMPED-SOLID-602358    AMSCO    1
GRATE-REAR WALL-602346    AMSCO    1

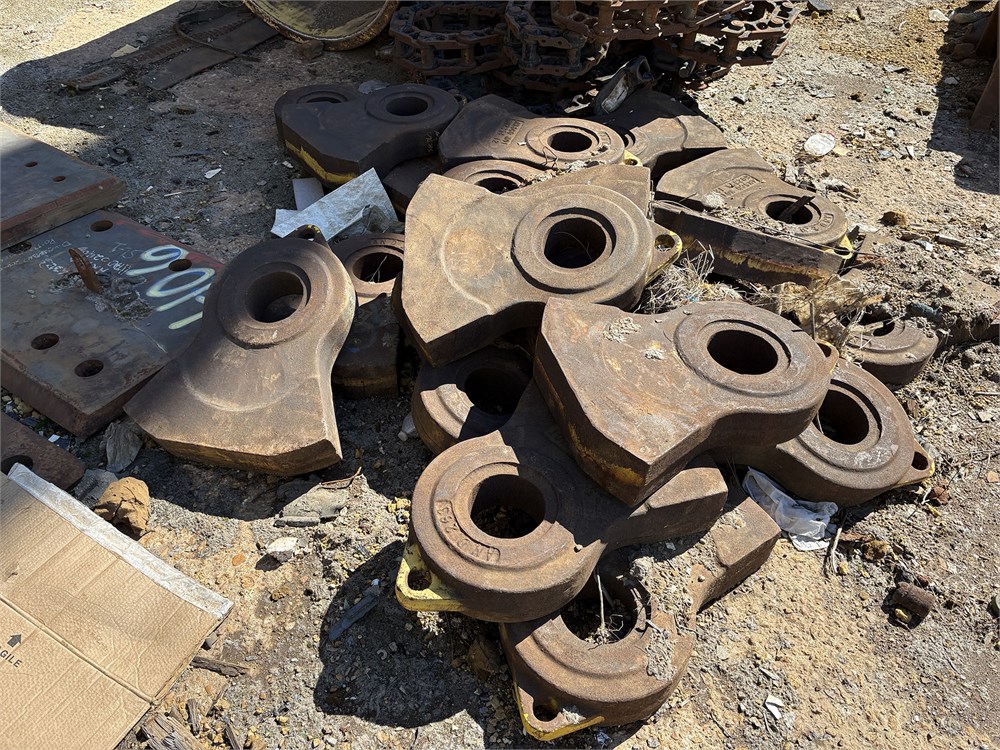

HAMMER-'FAT' 65-B-602354    AMSCO    20
LINER-SIDE-UPPER-602433    AMSCO    2
LINER-SIDE-UPPER-602434    AMSCO    2
LINER-SIDE-UPPER-602693    AMSCO    2
LINER-SIDE-UPPER-602694    AMSCO    2
LINER-SIDE-UPPER 602695    AMSCO    1
LINER-SIDE-UPPER-602696    AMSCO    2
LINER-SIDE-UPPER-602697    AMSCO    2
LINER-SIDE-UPPER-602698    AMSCO    2
LINER-SIDE-UPPER-602699    AMSCO    3
LINER-SIDE-UPPER-602700    AMSCO    2
LINER-SIDE-LOWER-602701    AMSCO    1
LINER-SIDE-LOWER-602702    AMSCO    1
LINER-SIDE-LOWER-602703    AMSCO    2
LINER-SIDE-LOWER-602704    AMSCO    1
LINER-SIDE-LOWER-602705    AMSCO    1
LINER-SIDE-LOWER-602706    AMSCO    1
LINER-LOWER-SIDE-602707    AMSCO    2
LINER-SIDE-LOWER-602708    AMSCO    2
LINER-REAR-ROOF-603242    AMSCO    1

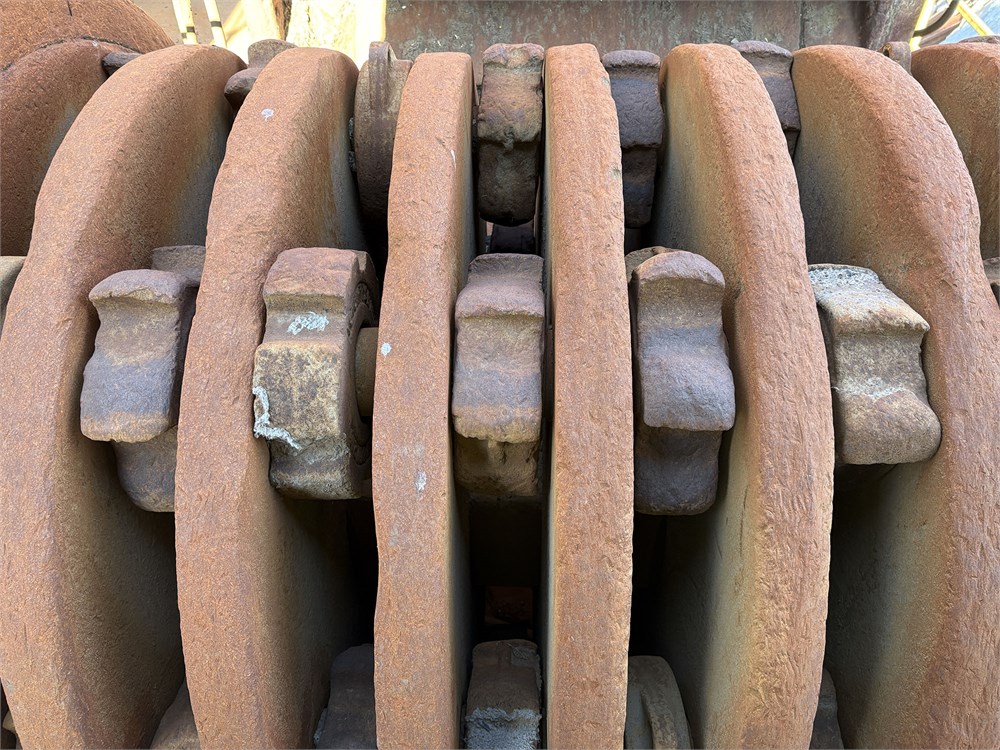

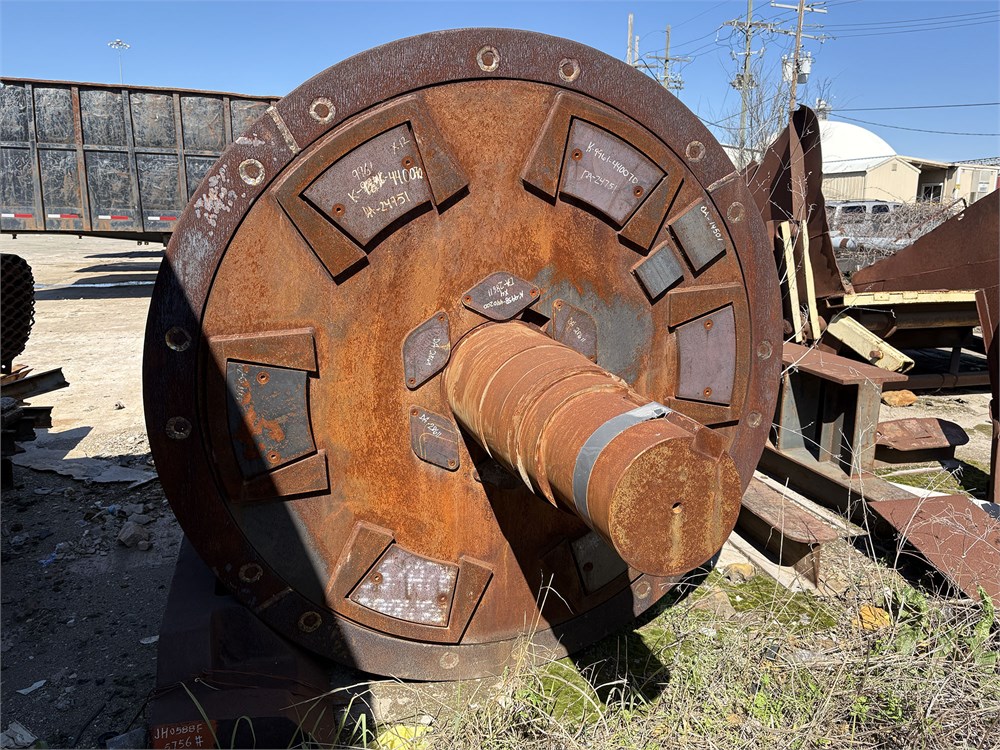

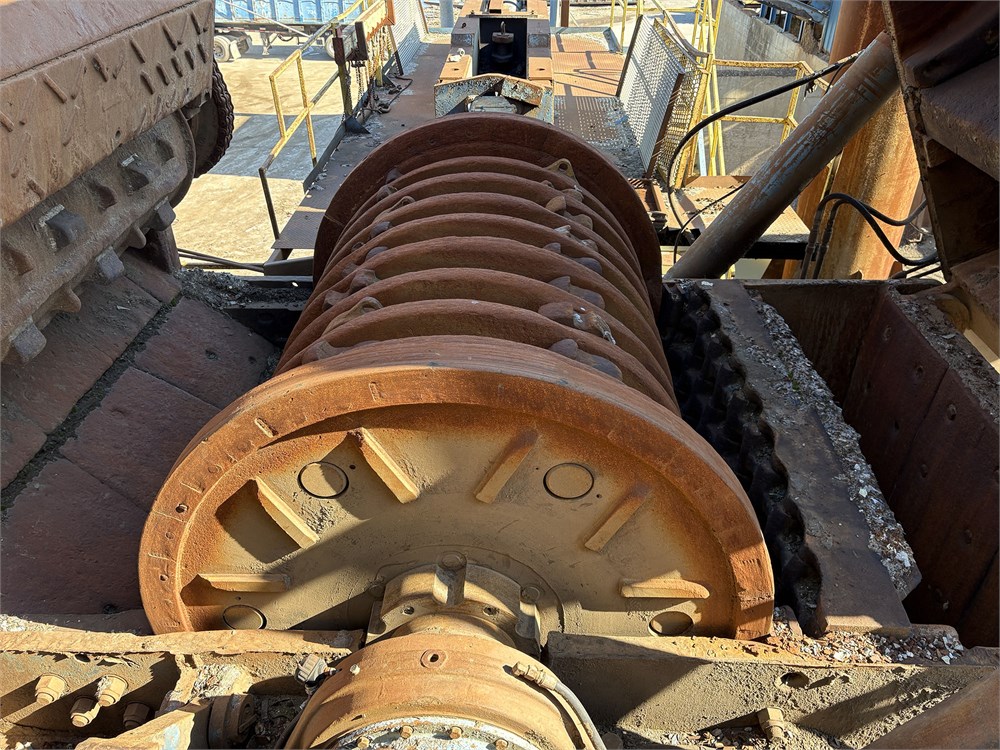

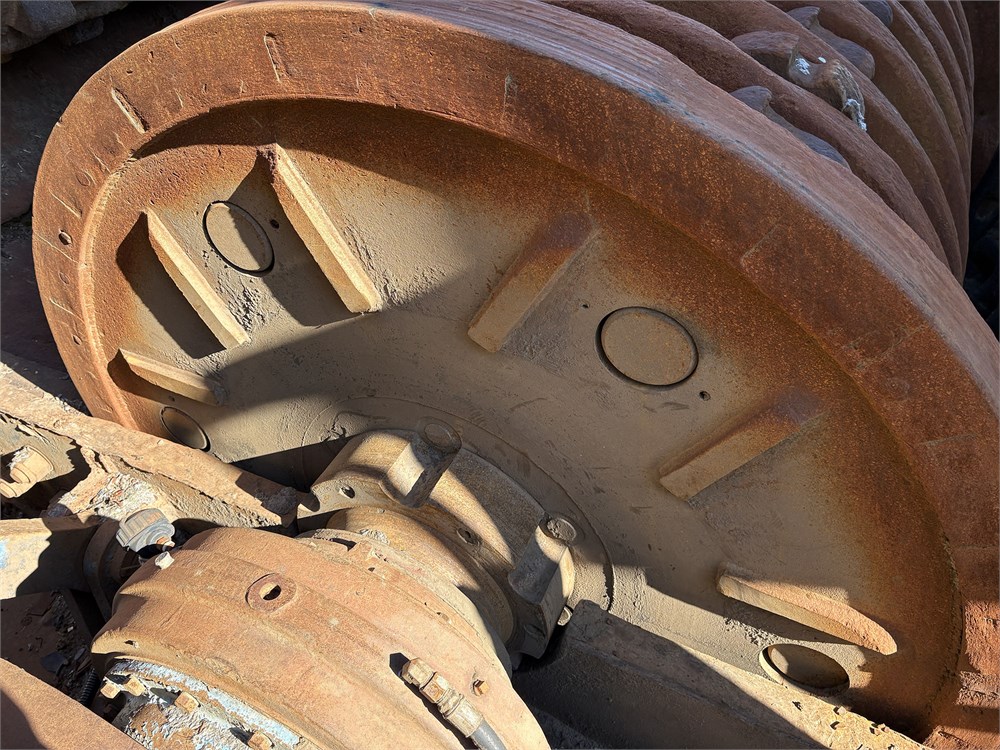

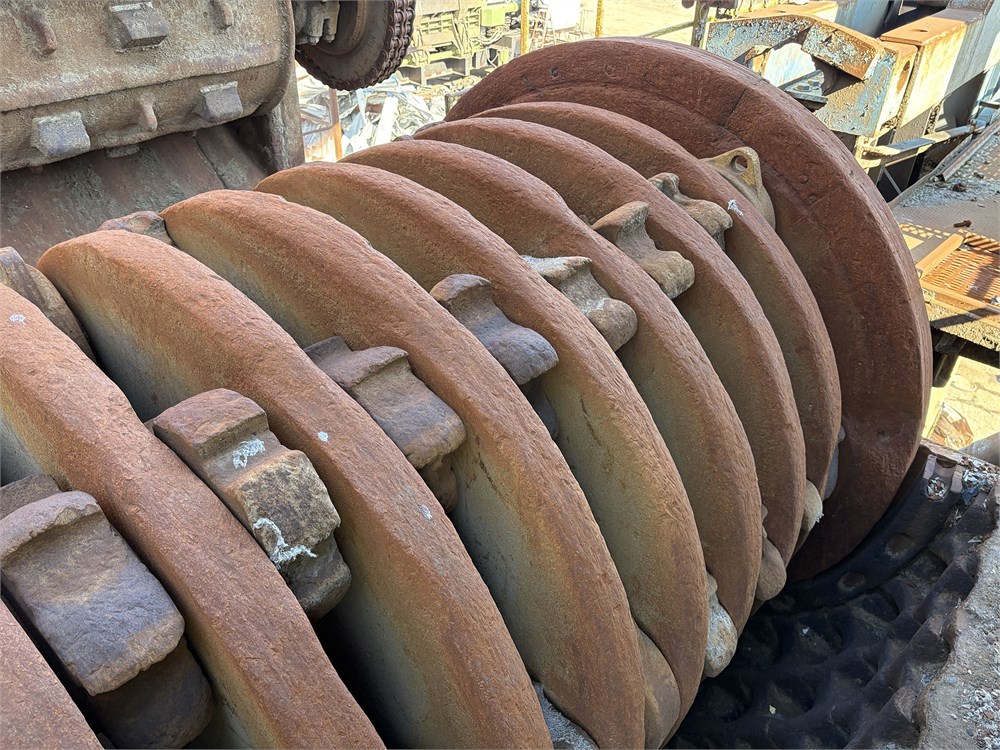

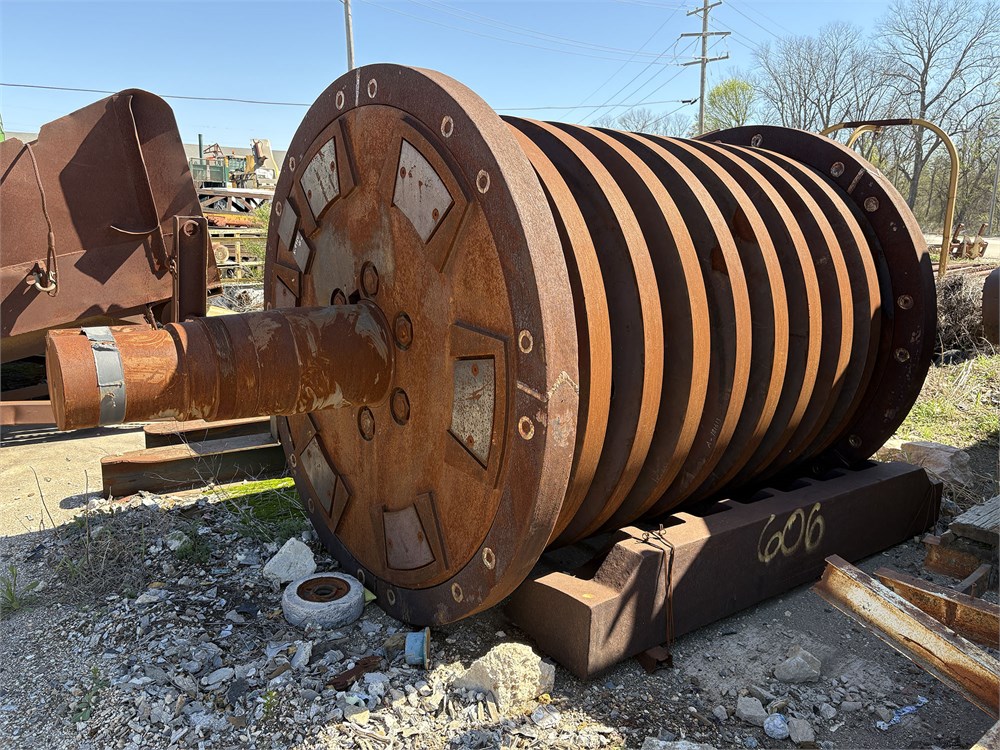

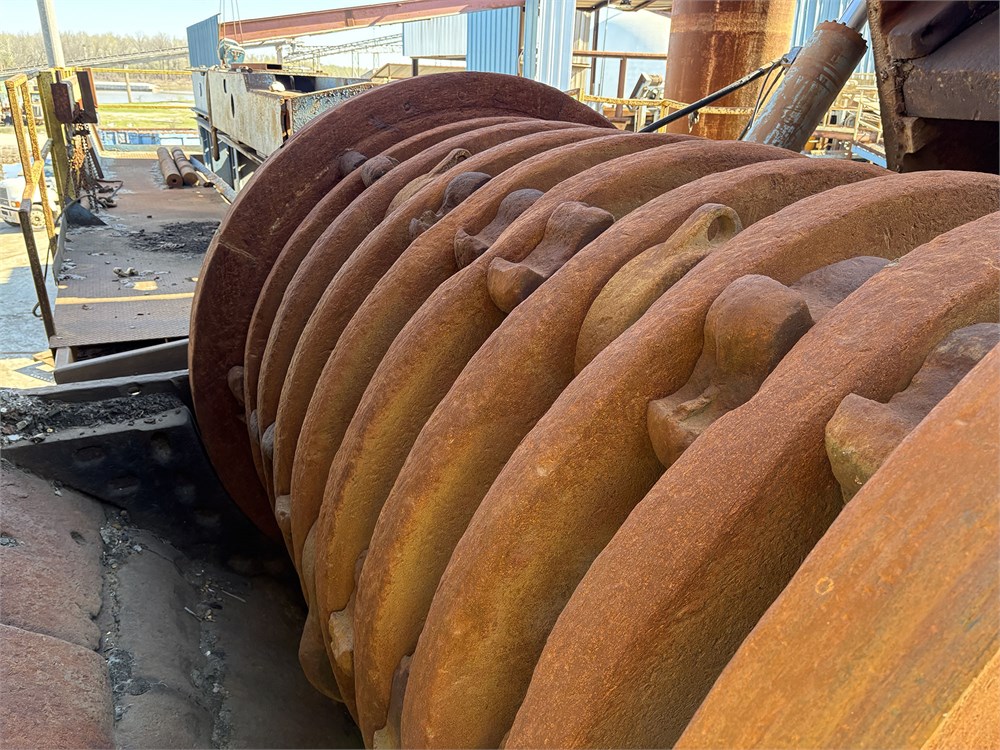

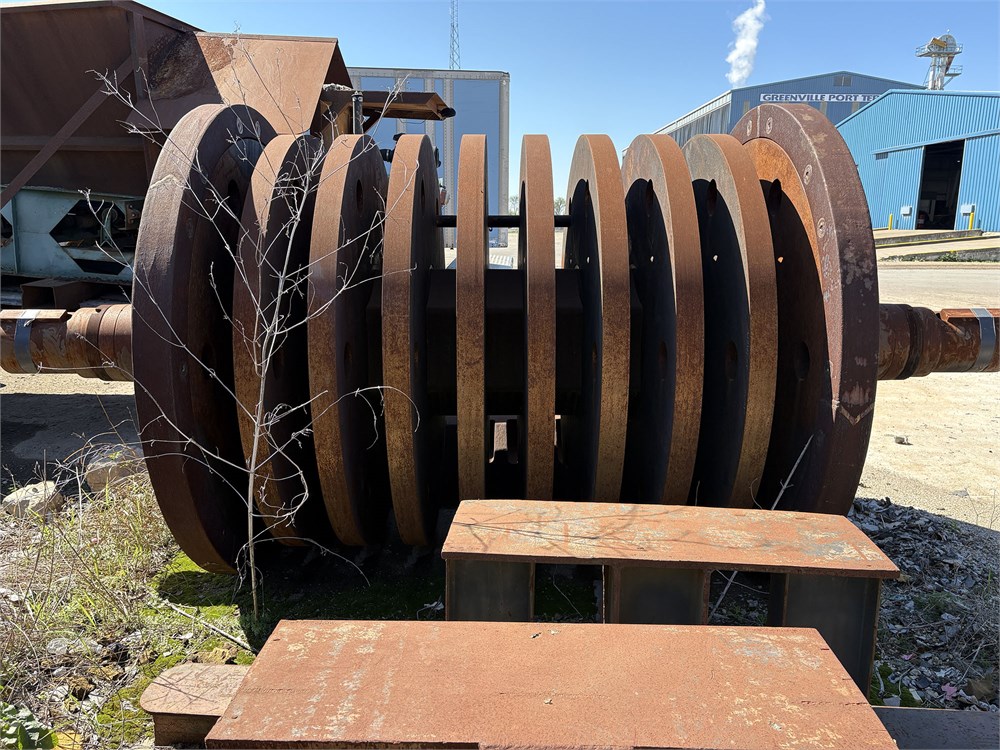

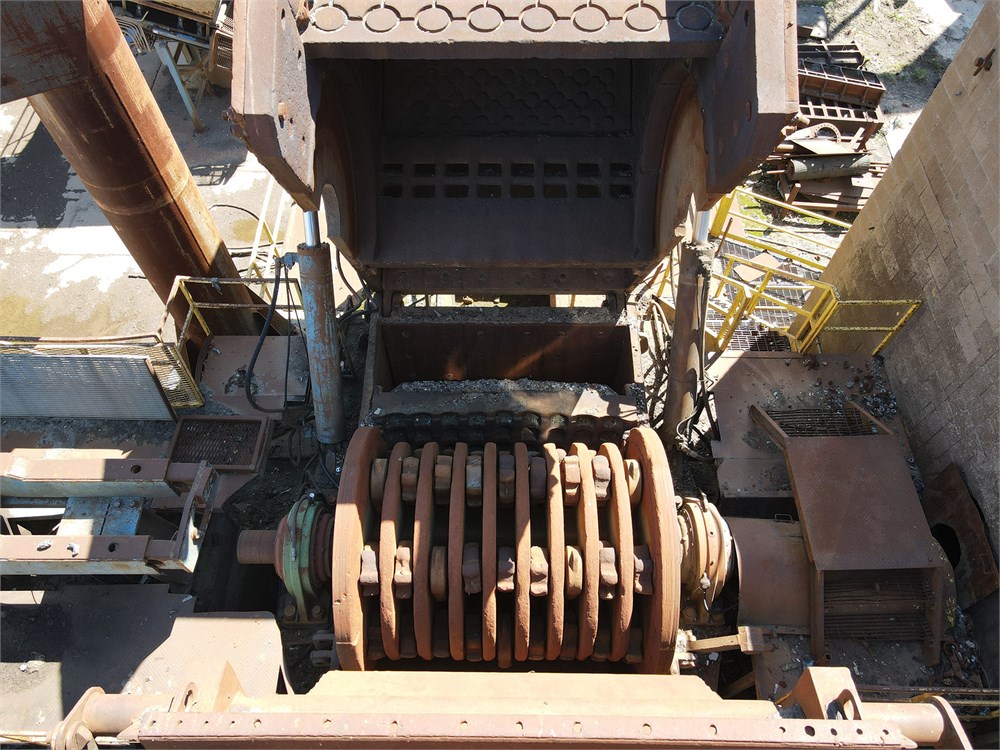

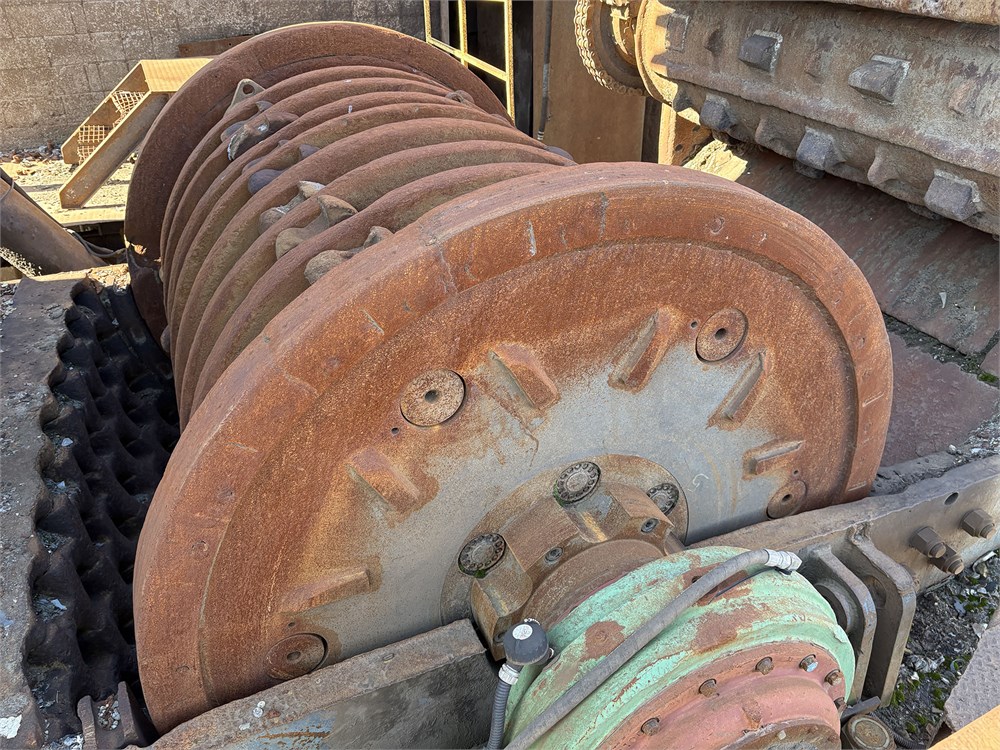

ROTOR-98x104 SVEDALA    NO WELD DISC    1
TOOTH-FEED ROLLER-601611    REPLACEMENT-AMSCO    20
CYLINDER-REJECT DOOR-REBUILT    A1252-A124-METSO AUTOMATION    1
CYLINDER-LIFT-MID SECTION-RBLT    A1252-A122-METSO AUTOMATION    2

Selling as-is, where-is. Buyer is responsible for all disassembly and freight costs.

Seller will require the Buyer/Dismantler to sign a hold harmless and indemnification agreement and carry contractors insurance with a minimum of $1,000,000 liability per occurrence and $2,000,000 in aggregate.

Prior to commencement of any work, Contractor shall provide Seller with a certificate of insurance in form acceptable to Seller evidencing the Insurance.

Please see the attached PDF outlining the insurance requirements.

**Please Note - The seller has placed restrictions on who may purchase this item. The seller will review all Buy Now and Make Offer submissions and will determine whether you are eligible to purchase this item. Your transaction will proceed if you are determined to be an eligible buyer.**

Description update coming soon. All information above is subject to buyer verification.

Additional photos available upon request!
