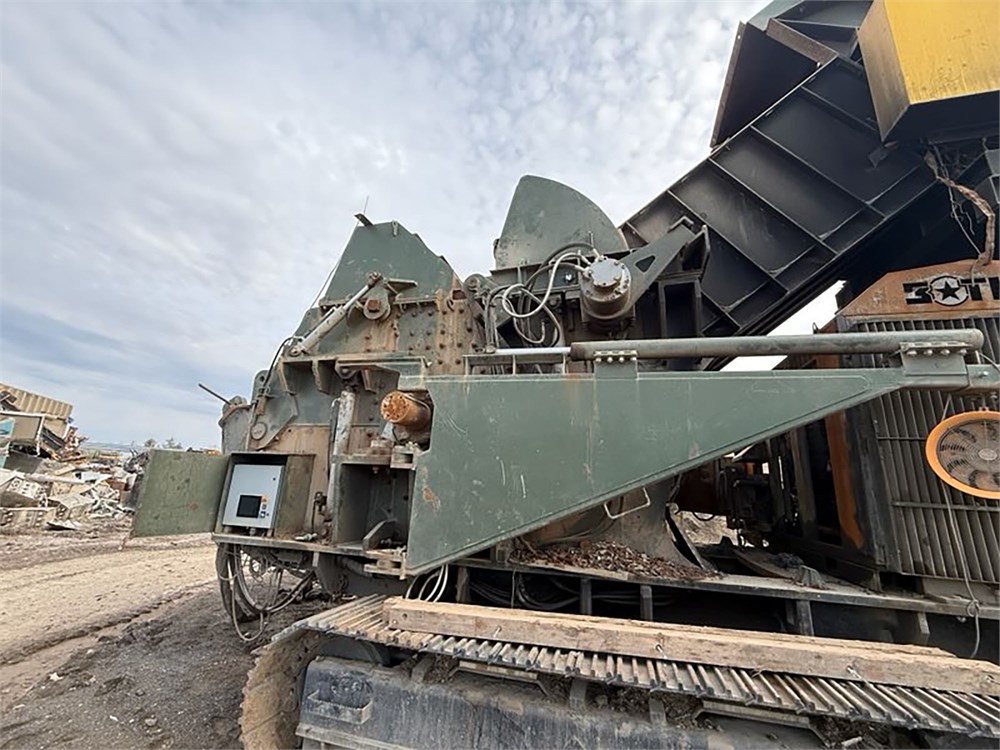

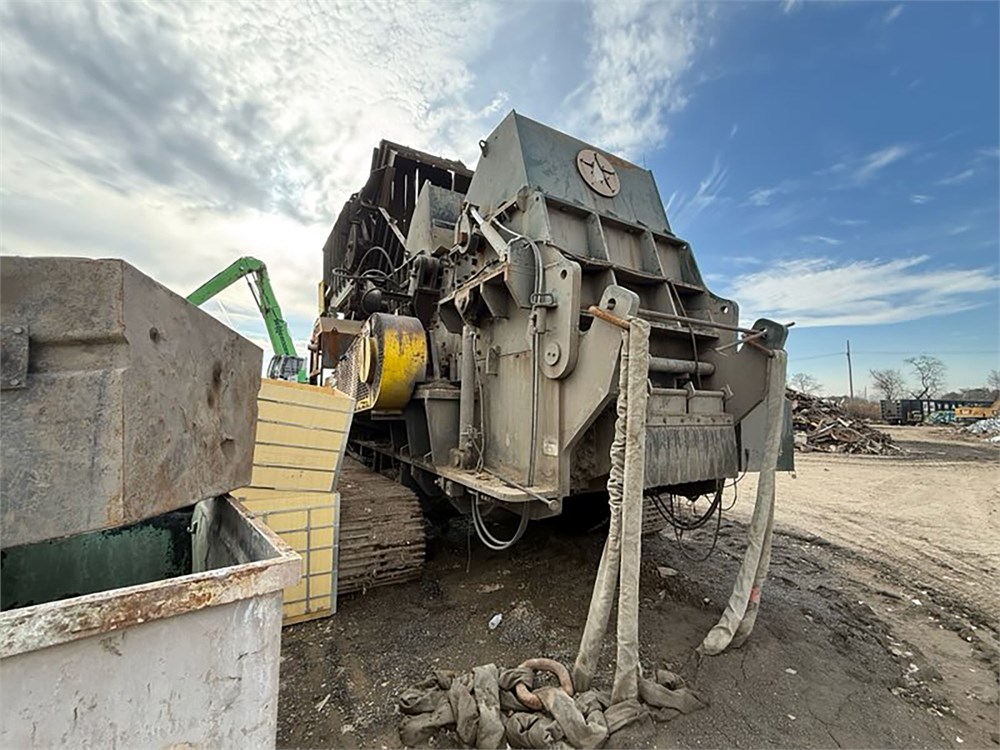

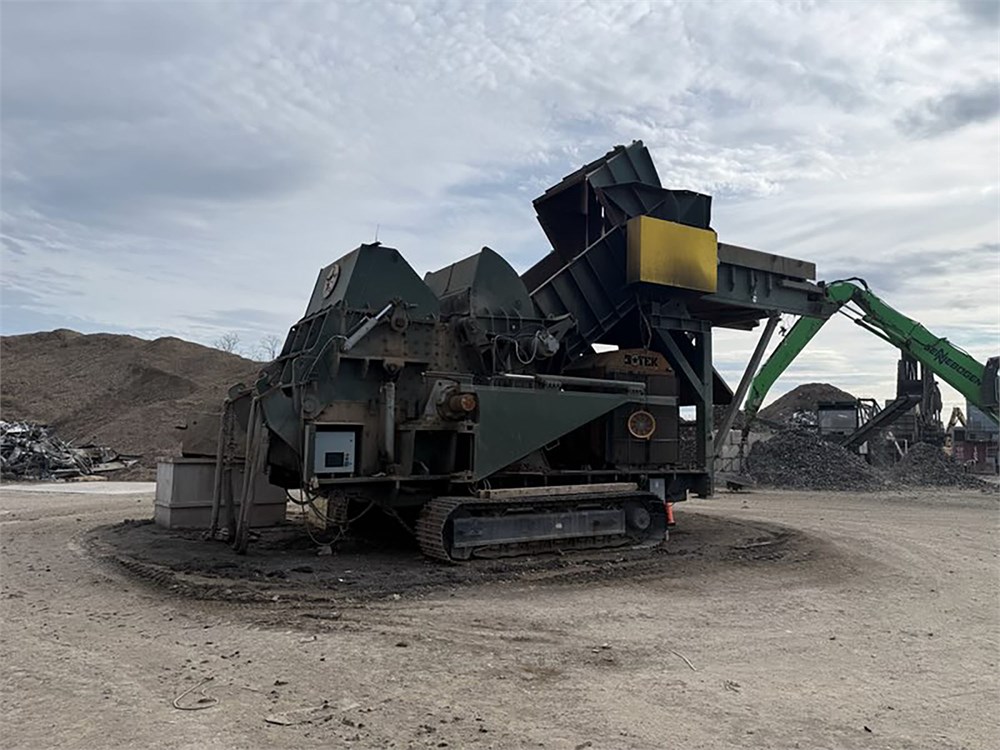

Repairable 3Tek Bravo 6280 Mobile Hammermill Shredder

Year: TBD
S/N: 6280-16
Hours: approx. 4,000 (used for 18 months)

This machine caught fire in December 2025. We replaced it with a larger shredder and are selling this machine as-is where-is.

Purchase will include the remote all spare parts we currently have in storage.

The grates, hammers, rotor, and liners in the machine have approx. 75% life left.



The shredder was inspected by 3Tek after the fire and they made the following assessment:



General Shredder Details: Overall, the structure seems to be repairable

Disk Rotor design: 4 Pin with 9 Disks
Width side wall to side wall: 80” (2,032 mm)
Shredder Wall thickness: 1.5” (38.1 mm)
Wear Liner thickness:  3” (76.2 mm)
Infeed Conveyor: 19’ (5.8 m) integral to feed ramp with steel support truss
Feed Ramp: 10 ft. (3.0 m) long
Single Feed Roll: 42” (1,067 mm) diameter tip to tip with variable speed 6-10 RPM



Rotor Details: Seems to be intact and in okay condition

Rotor Speed: 750 rpm
Hammer Swing Diameter: 62” tip to tip (1,575 mm)
Rotor Bearing and lubrication: 10” (254 mm) bearings with grease lubrication and RTD (resistive temperature device) on each bearing for protection.
Hammer Pin Diameter: 3 7/8” (98 mm)



Hammers:

Hammer Weight: 240 lbs. (109 kg)
Material: Cast Manganese
Quantity: 8 as standard



Other Shredder Castings: Grates, Anvils, etc.

Anvil: 3 Piece Bolt in design
Reject Door: 24” (610 mm) tall. Designed for aggressive discharge of unshreddables
Back Wall: 5.0” thick (127 mm) thick, reversible to increase available life
Reject Door and Back Wall: Angled grate opening to improve discharge efficiency



Feed System: The hydraulics need to be repaired. We cannot test the infeed to assess damage until the hydraulic system is repaired. We are presuming it is in good mechanical condition.

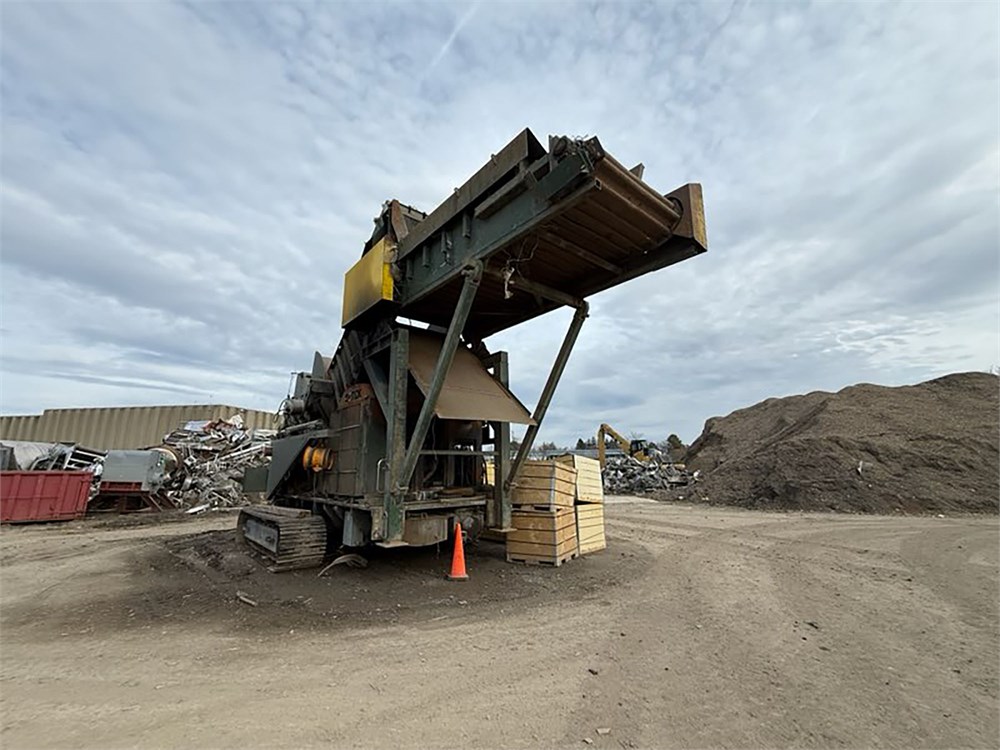

Infeed Conveyor Integral: Nominal 19’ (5.9 m) heavy duty piano style infeed conveyor. This horizontal infeed conveyor is integral to the feed ramp while the outboard end is supported by an adjustable vertical reinforced steel support member. The infeed conveyor’s speed is adjustable and controlled automatically by the IQAN Control system. Two conveyor side walls are supplied. One is 5’ (1.5 m) tall and the other is 2’ (.61 m).



Feed Ramp: 10 feet (3.0 m) long, replaceable AR wear plates under feed roll. Side walls ½” (12.7 mm) thick.



Single Feed Roll System:

• Feed Roll Speed: 0-10 RPM
• Hydraulic Drive: One hydraulic motor driven by closed loop piston pump



Feed Roll:

• 36” (914 mm) drum diameter, 42” (1,067 mm) outer tooth diameter
• Construction: Using one (1 inch) (25.4 mm) thick rolled steel with 3” (76.2 mm) AR (Abrasion Resistant) teeth supported by heavy duty flange bearings

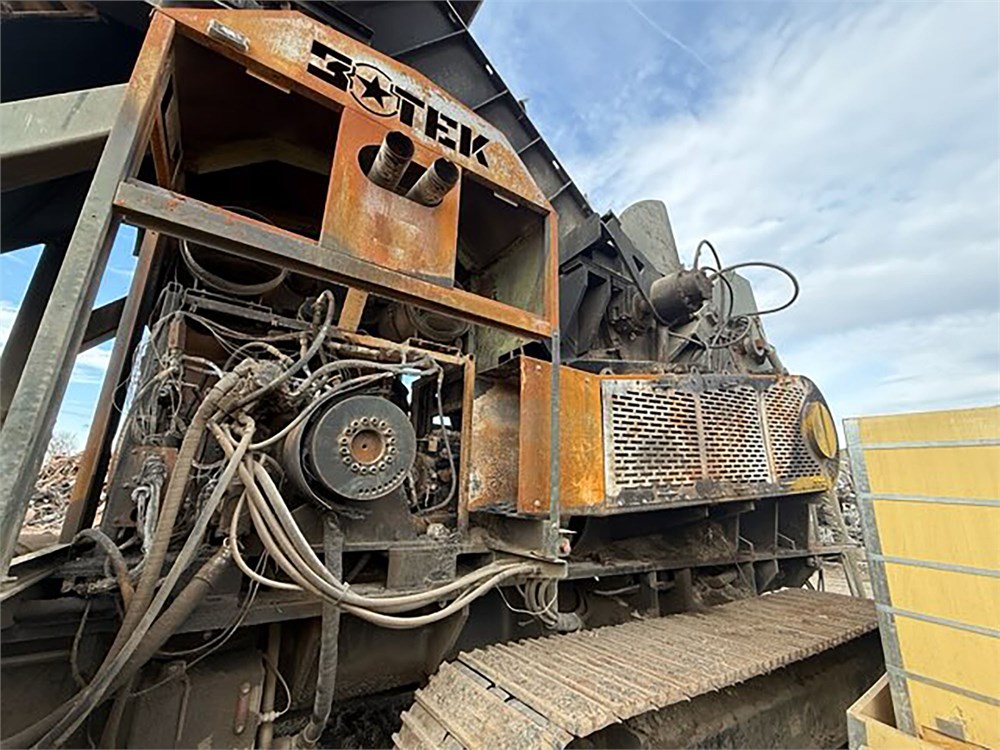

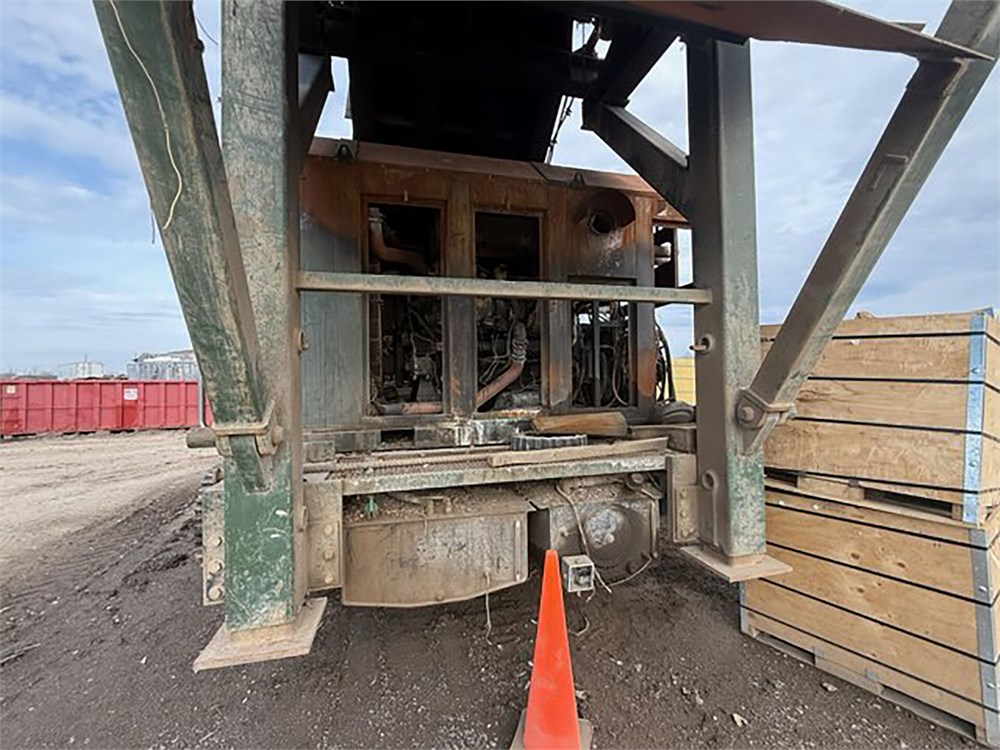

Production Engine: Will need to be totally replaced

• Manufacturer: Caterpillar Tier 4 Certified by Factory
• Model: C32, 32.1 Liter displacement
• Engine HP: 1125 HP @1750 RPM
• Engine Configuration: V-12 Cylinder, Four Stroke, Twin Turbocharged and Aftercooled
• Intake: Two (2) Donaldson dry type air filters with safety elements and pre-cleaners
• Cooling: HD folded core radiator
• Fuel Storage: 265-gallon (1,205 L) Day Tank complete with float switch.
• Fuel Consumption at rated production: estimated at 40 gallons/hour



Drive Train: Replace all

• Integrated Clutch: PT Tech
• Speed Reducer: Two heavy duty pulleys with Kevlar V belts reduce speed from 1750 diesel engine RPM to 750 shredder rotor RPM. This drive train design is specifically chosen to handle the shock loads and high torque required during the shredding operation.

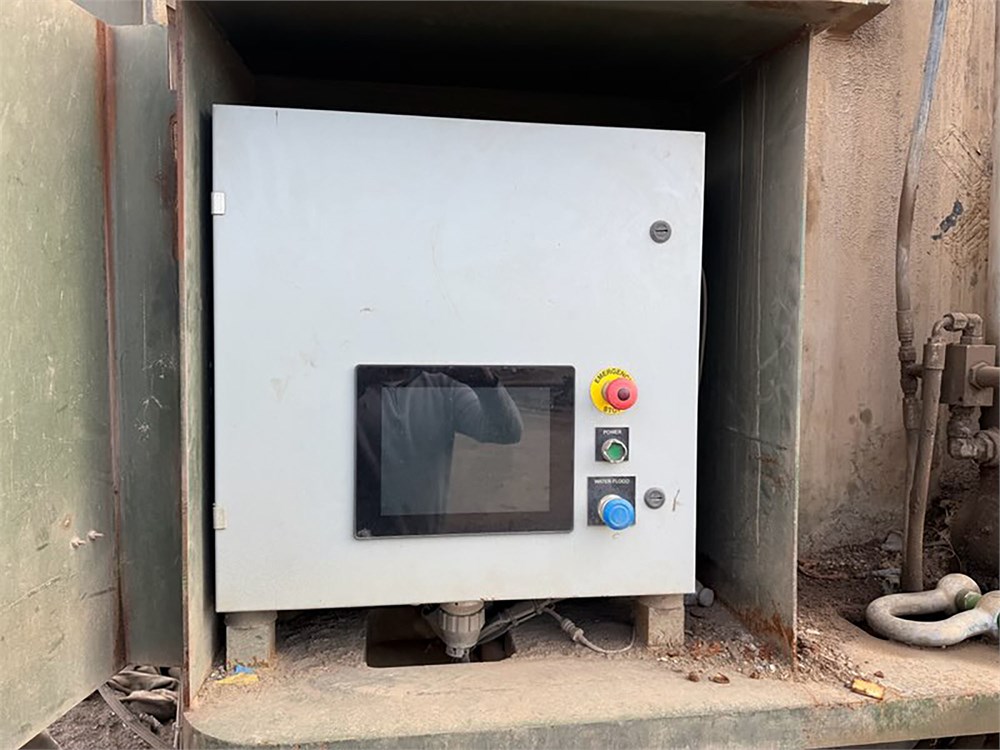

3TEK System Controls: Replace all

• IQAN Mobile Control platform for Shredder performance and diagnostic information
• Control system with remote master display has multicolored graphical module with easy-to-read display
• Fully functional automatic feed control system designed to maximize production by analyzing machine performance inputs from multiple sources.



Buyer will be responsible to disassemble and load on their own trucks. This will make a good project machine for the right person or company. Make an offer before it’s gone!
