Rightline Rotating Fork Clamp

Dust it off and put it to work!

Listing Image
Details and Restrictions
  • Location Virginia

  • Item # 990361
  • Qty Available 1
Description

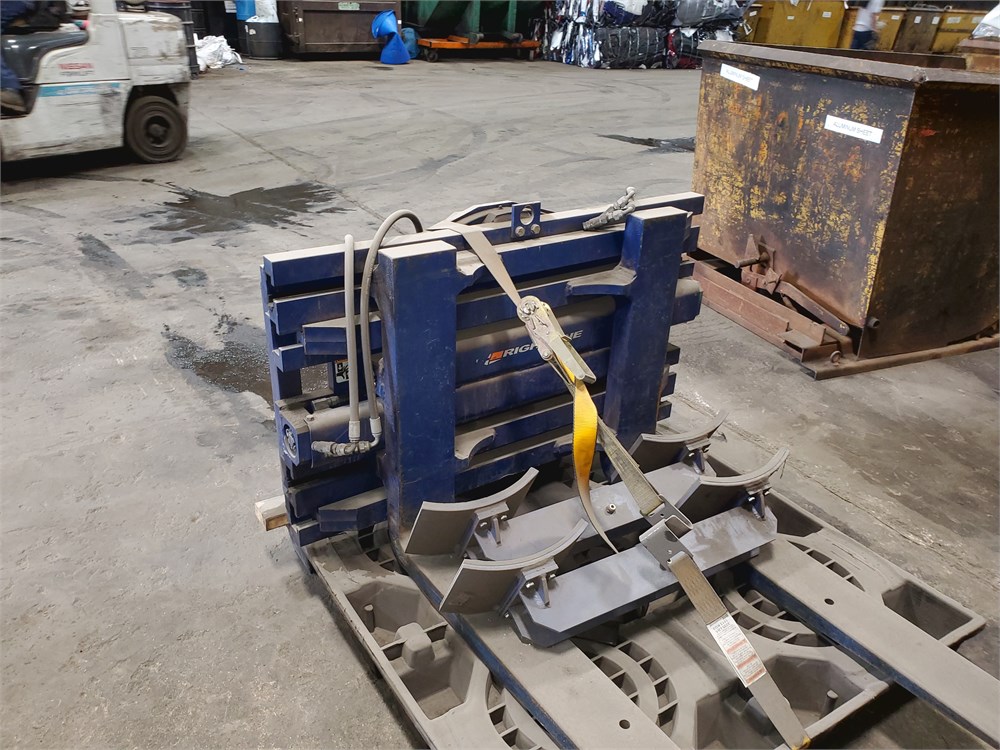

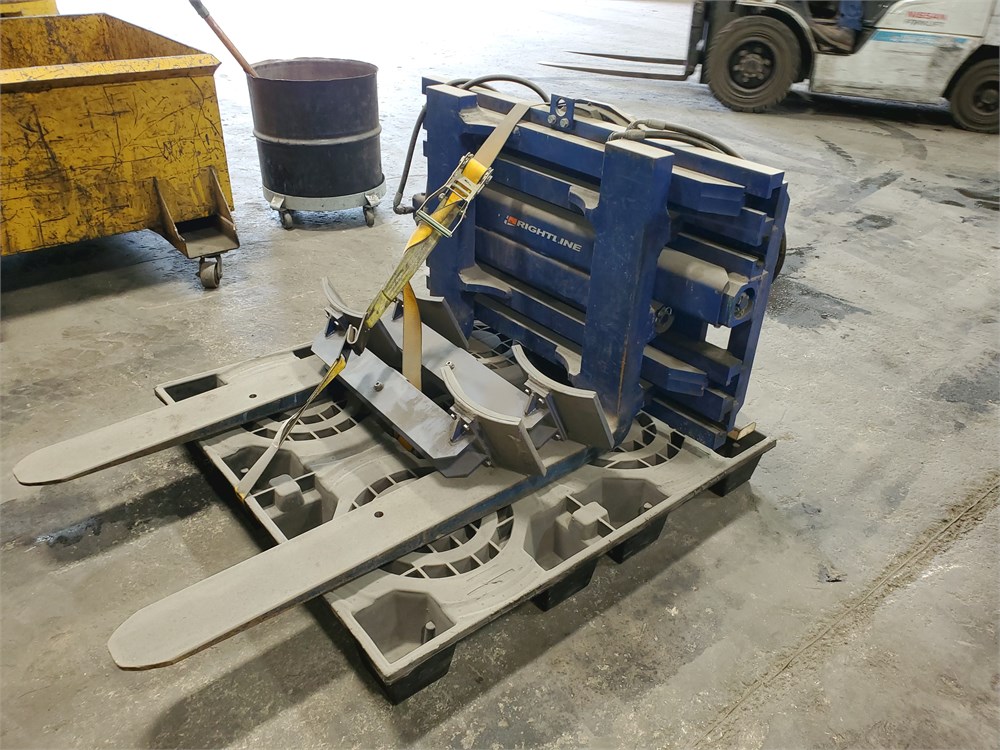

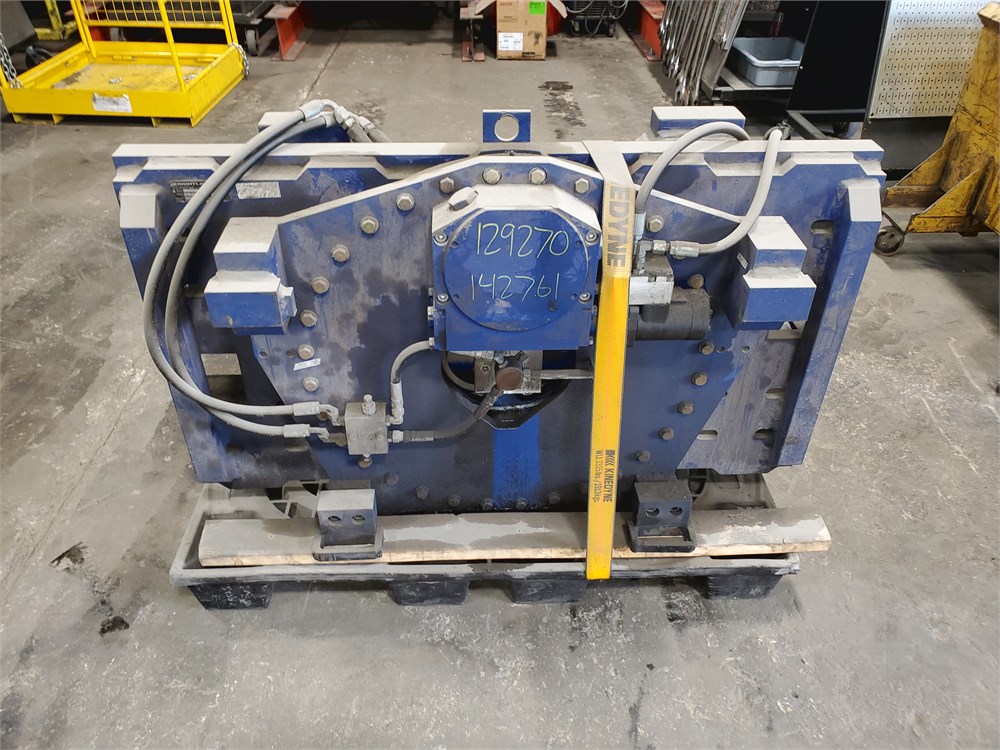

Rightline Rotating Fork Clamp

  • Model RF70C-03-1C
  • Frame width 48 in
  • Fork thickness 2.5 in
  • Fork width 6 in
  • Fork length 48 in
  • Opening range 16.6 in to 77 in
  • Two function hydraulics
  • Recommended hydraulic flow 10.5 gpm
  • Recommended hydraulic pressure 2,000 psi
  • Hook spread 35.5 in
  • Mounting for an ITA III
  • Capacity 7,000 lbs at 24 in load center
  • Lost load 13.72 in
  • Weight 2,200 lbs
  • Horizontal center of gravity 10.5 in
  • Vertical center of gravity 11.1 in
  • Rotating fork clamp comes with slip on double drum arm attachment
  • Standard bolt on
  • Rated for a 9-10k machine
  • ITA III carriage
  • Bought new and only used a couple times, then put on a shelf
  • Has a minor hydraulic leak
  • Ready to be dusted off and put to use!

Per the seller: "Sale may be subject to sales/use tax. Duty might be mine to collect and remit."
